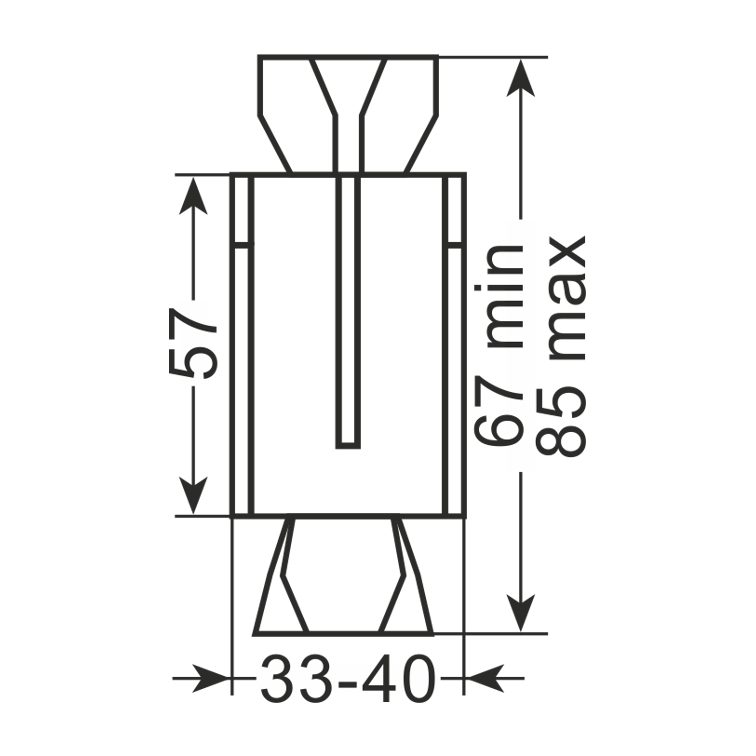

Technical drawing
Adapter · AiFO
Expansion adapter SR-AR-4 – 35x35 mm / 40x40 mm profile
Item no. SR-AR-4 · EAN 2010000110348
- made of polyamide
- for a 35x35 mm or 40x40 mm square profile
- used to fit a castor into a steel profile
- Colour
- grey
- Material
- polyamide
- Profile size
- 35x35 mm / 40x40 mm
- Load* stated for 3 pcs
- 250 kg
- Load (set of 3)
- 250 kg
In brief
- A single adapter covers two profile sizes: 35 × 35 mm and 40 × 40 mm.
- Load rating of 250 kg calculated for three pieces, material – polyamide in grey.
- The role of the part: seating a castor in a steel profile, without any work on the structure.
- It is the only item in the range that covers the 35 × 35 mm profile.
Prices and stock levels are in the B2B shop. Larger quantities and complete sets are quoted individually.
Expansion adapter (35x35 mm, 40x40 mm) SR-AR-4 – how to choose the right one
The SR-AR-4 expansion adapter allows a castor to be fitted into a square profile of 35 × 35 mm or 40 × 40 mm. It is made of grey polyamide, and the catalogue load for three pieces is 250 kg.
Covering two profile sizes with a single index has a practical value when servicing a mixed fleet of appliances – there is no need to keep two separate items in stock to cover both frames.
It is worth checking the profile with a gauge, though, and not by eye. The five-millimetre difference between 35 and 40 mm is hard to judge visually in practice, especially when the frame is powder-coated and covered by a worktop.
How to match the leg to the profile, the load and the unevenness of the floor – we explained it in the selection guide for this category.
Where it works
- Mobile frames with a 35 × 35 mm profile
- 40 × 40 mm structures being converted to castors
- Servicing appliances with different profile dimensions
- Counters and bases moved seasonally
FAQ
Frequently asked questions
Have not found your answer? Give the profile, the load and the adjustment range – we will select the leg.
Ask a questionDoes the same adapter really fit two profiles?
Yes, the manufacturer describes SR-AR-4 for both 35 × 35 and 40 × 40 mm. The expansion is wide enough to cover both sizes – provided the profile has a typical wall thickness.
Will the adapter replace an adjustable leg in the same structure?
It will not replace it, because it has no height adjustment at all. It is, however, sometimes used alongside one in the same frame: some support points get castors, some stay on legs so that the appliance can be held still.
