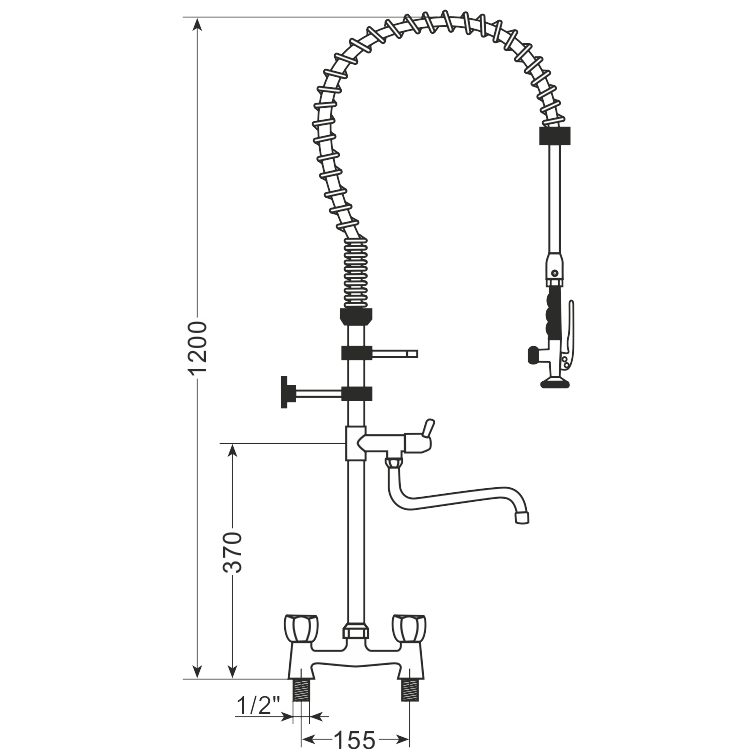

Technical drawing
Pre-rinse spray taps · AiFO
Two-hole deck-mounted pre-rinse spray tap (1/2") AG-3/05FE
Item no. AG-3 · EAN 2010000086759
- self-lubricating, non-seizing valve cartridges
- insulated braided hose, reinforced at the ends
- chrome-plated steel knobs
- chrome-plated steel spring
- swivel spout
- water flow from 9 l/min to 15 l/min at a pressure of 2 to 4 bar
In brief
- A two-hole version: the body with the handles and the spray column sit in separate holes in the worktop.
- 1/2 inch connection, self-lubricating and non-seizing valve heads.
- The swivel spout makes the station usable even while the spray head is hanging in the spring.
- The description does not give the hole spacing, and that is the dimension which decides the installation.
Prices and stock levels are in the B2B shop. When fitting out a whole back-of-house we quote the complete set.
Two-hole deck-mounted pre-rinse spray tap (1/2") AG-3/05FE – how to choose the right one
AG-3/05FE is a deck-mounted two-hole pre-rinse spray tap with a 1/2 inch connection, with self-lubricating, non-seizing heads and a swivel spout. The braided hose is insulated and reinforced at the ends, and it is guided by a chrome-plated spring.
Splitting the body and the spray head into two fixing points gives a more rigid station: tugging on the gun is not transmitted to the tap, because the spring column has its own support in the worktop. This pays off wherever the spray head is in use for most of the shift.
The price of that rigidity is the need for two holes at a specific spacing. The manufacturer does not give it in the description, so when ordering for a finished worktop – especially one in which the holes are already cut – it has to be established before the crew arrives with tools.
How to match the tap to the station, the connection and the flow required – we explained it in the selection guide for this category.
Where it works
- Worktops prepared at the factory for two-hole tapware
- Pre-rinse stations running at full tilt for the whole shift
- Dishwashing areas where the spray head serves more than one bowl
- Installations where the spring is to stand beside the sink rather than over it
FAQ
Frequently asked questions
Have not found your answer? Give the station, the connection and what it is for – we will select the tapware.
Ask a questionWhat does the two-hole version give over the single-hole one?
A separate support for the spray column. The forces from tugging on the hose then go into the worktop rather than into the tap body, which under heavy use translates into a more durable fixing. It does, however, require a worktop with two holes at the right spacing.
How does it differ from AG-9/05BD?
In the heads. AG-3/05FE has the self-lubricating version, described as non-seizing, while AG-9/05BD has the ceramic one. The mounting, the 1/2 inch connection and the swivel spout are the same in both cases.
