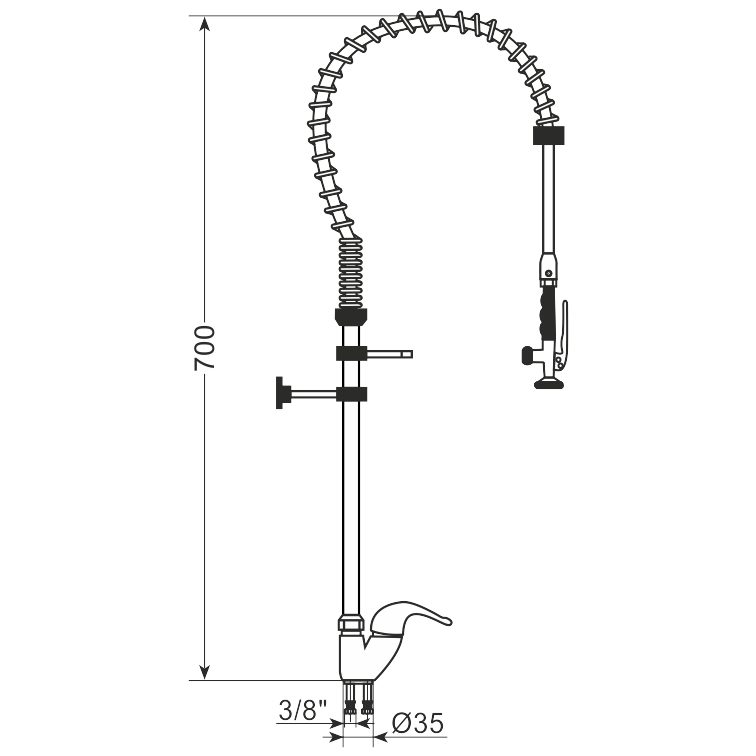

Technical drawing
Pre-rinse spray taps · AiFO
Deck-mounted pre-rinse spray tap (3/8") AG-100C
Item no. AG-100C · EAN 2010000138151
- ceramic cartridges
- insulated braided hose, reinforced at the ends
- knob and lever in chrome-plated steel
- chrome-plated steel spring
- swivel spout
- water flow from 9 l/min to 15 l/min at a pressure of 2 to 4 bar
- mounting hole Ø35 mm
- connections 3/8"
In brief
- A twin part number to AG-100, with 3/8 inch connections explicitly stated.
- Ceramic heads, control by a handle with a lever, chrome-plated steel construction.
- A mounting cut-out 35 mm in diameter and a swivel spout over the bowl.
- Catalogue flow rate: from 9 to 15 l/min in the 2–4 bar range.
Prices and stock levels are in the B2B shop. When fitting out a whole back-of-house we quote the complete set.
Deck-mounted pre-rinse spray tap (3/8") AG-100C – how to choose the right one
AG-100C is a single-hole pre-rinse spray tap with 3/8 inch connections, ceramic heads and a swivel spout, intended for a Ø35 mm hole. The insulated braided hose is held by a chrome-plated steel spring.
In the catalogue this model sits next to AG-100 and has almost the same list of features. The letter in the part number suggests a variant of the design, but the description does not explain it – the only visible difference in the data is the explicitly listed connections and the absence of any mention of a stainless hose.
In practice this means one thing: if AG-100 is already in the design, moving to AG-100C changes nothing in the preparation of the worktop or the installation. If, however, a specific version of the hose matters, the difference has to be queried when ordering.
How to match the tap to the station, the connection and the flow required – we explained it in the selection guide for this category.
Where it works
- Sinks with a ready 35 mm hole in the worktop
- An interchangeable addition to the range where AG-100 is unavailable
- Small dishwashing areas serving a single pre-rinse station
- Kitchens where tapware is ordered with the connection stated directly on the data sheet
FAQ
Frequently asked questions
Have not found your answer? Give the station, the connection and what it is for – we will select the tapware.
Ask a questionWhich of the pair AG-100 and AG-100C should be chosen?
From the installation point of view either will do – they have the same cut-out diameter, the same connection and the same flow rate. Availability usually decides, and if the specification requires the version of the hose to be confirmed, that has to be settled when placing the order.
Will a tap with a 3/8 inch connection cope with pre-rinsing?
Yes, because in this role it is not the volume that counts but the force of the jet in the narrow spray head. The stated 9–15 l/min is a typical value for this whole family of tapware.
Enquiry
We will quote Deck-mounted pre-rinse spray tap (3/8") AG-100C for your appliance
Give the mounting, the connection and what the station is for – we will reply with a selection and a quote.
B2B shopGet in touch
We usually reply within 24 working hours.
