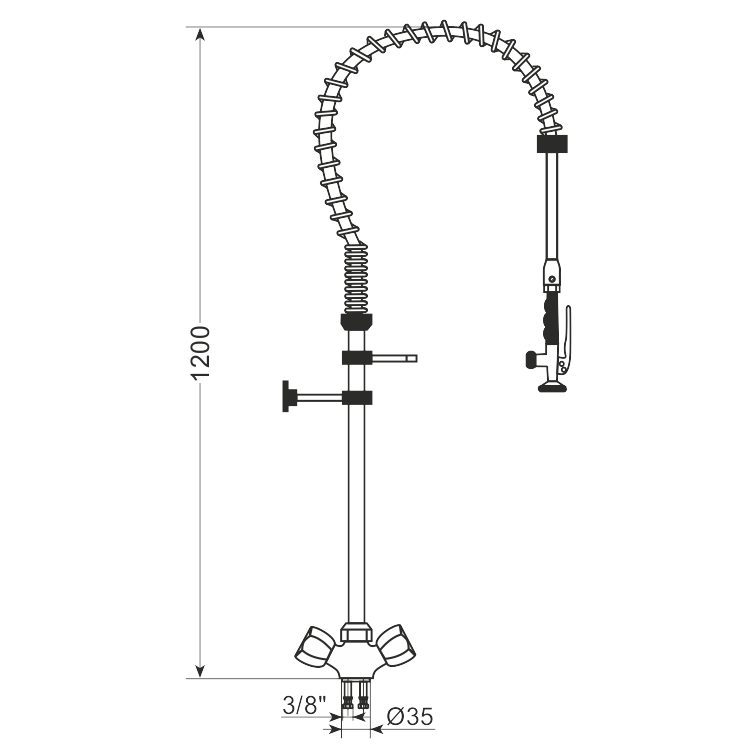

Technical drawing
Pre-rinse spray taps · AiFO
Deck-mounted pre-rinse spray tap (3/8") AG-1FB
Item no. AG-1FB · EAN 2010000075784
- self-lubricating, non-seizing valve cartridges
- insulated braided hose, reinforced at the ends
- chrome-plated steel knobs
- steel spring in blue
- water flow from 9l/min to 15l/min at a pressure of 2 to 4 bar
- mounting hole Ø35mm
In brief
- The spray head alone, without a swivel arm – all the water goes through the gun.
- A blue steel spring distinguishes this part number from the chrome-plated AG-1FE version.
- Self-lubricating and non-seizing heads, chrome-plated steel handles.
- Mounting hole Ø35 mm, 3/8 inch connection.
Prices and stock levels are in the B2B shop. When fitting out a whole back-of-house we quote the complete set.
Deck-mounted pre-rinse spray tap (3/8") AG-1FB – how to choose the right one
AG-1FB is a single-hole pre-rinse spray tap with a 3/8 inch connection, without an additional spout, with self-lubricating heads and a steel spring in blue. It is mounted in a hole 35 mm in diameter.
Within the AG-1 family this part number is the most basic version: a gun, a spring, two handles and nothing more. Where the station is responsible solely for rinsing plates before the rack, fewer parts mean fewer places for grease to collect.
The blue finish of the spring is the only difference from AG-1FE. When ordering spare parts or adding a second station it is worth checking this, so that the kitchen does not end up with two taps in different colours side by side.
How to match the tap to the station, the connection and the flow required – we explained it in the selection guide for this category.
Where it works
- Pre-wash stations with a separate tap for filling
- Cramped sink units with no room for a second arm above them
- Kitchens that mark working zones by colour
- Worktops with a single 35 mm cut-out
FAQ
Frequently asked questions
Have not found your answer? Give the station, the connection and what it is for – we will select the tapware.
Ask a questionCan a swivel spout be bought separately for AG-1FB?
The manufacturer gives no data on this – the catalogue has a separate part number 05FB which comes with one from the factory. It is safer to select the right version from the start than to assume it can be added later.
When is the spray head alone enough, without a spout?
When the sink handles a single task: knocking residues off dishes going into the dishwasher. If water is also drawn for pots or buckets are filled in the same place, the lack of a spout will soon start to be a nuisance.
Enquiry
We will quote Deck-mounted pre-rinse spray tap (3/8") AG-1FB for your appliance
Give the mounting, the connection and what the station is for – we will reply with a selection and a quote.
B2B shopGet in touch
We usually reply within 24 working hours.
