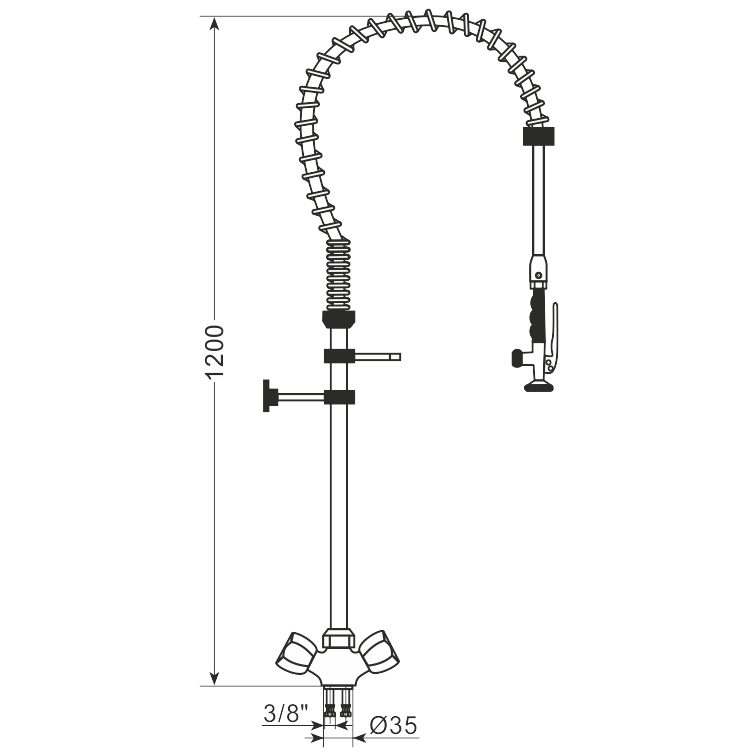

Technical drawing
Pre-rinse spray taps · AiFO
Deck-mounted pre-rinse spray tap (3/8") AG-1FE
Item no. AG-1FE · EAN 2010000080030
- self-lubricating, non-seizing valve cartridges
- stainless, insulated braided hose reinforced at the ends
- chrome-plated steel knobs
- chrome-plated steel spring
- water flow from 9 l/min to 15 l/min at a pressure of 2 to 4 bar
- mounting hole Ø35 mm
In brief
- A version without a swivel spout, with a chrome-plated spring and a stainless braided hose.
- Self-lubricating, non-seizing valve heads, operated by two handles.
- 3/8 inch connection, Ø35 mm cut-out in the worktop.
- The declared flow rate lies between 9 and 15 l/min at 2–4 bar.
Prices and stock levels are in the B2B shop. When fitting out a whole back-of-house we quote the complete set.
Deck-mounted pre-rinse spray tap (3/8") AG-1FE – how to choose the right one
AG-1FE is a deck-mounted pre-rinse spray tap fitted with a stainless braided hose and a chrome-plated spring, without an additional spout. It works on self-lubricating heads, has a 3/8 inch connection and goes into a hole 35 mm in diameter.
The stainless braid of the hose sets this part number apart among the simpler versions of the AG-1 family. The hose is the most exposed component here: with every pull of the gun it bends in the same place, and from under the worktop it takes steam and moisture from the dishwasher.
The comparison with AG-1FB is simple: they differ in the colour of the spring. The comparison with AG-1/05FE is too: they differ in the swivel spout. The choice between them therefore comes down to whether the station needs a second source of water.
How to match the tap to the station, the connection and the flow required – we explained it in the selection guide for this category.
Where it works
- Stations where the hose is pulled across to the adjacent worktop
- Dishwashing areas with high humidity, where the make-up of the braid matters
- Steel worktops with a ready 35 mm hole
- Replacement of a tap in which the hose, not the body, wore out first
FAQ
Frequently asked questions
Have not found your answer? Give the station, the connection and what it is for – we will select the tapware.
Ask a questionCan the absence of a swivel spout be worked around?
Only by setting up a second water draw-off point at the station – the gun alone cannot replace a spout for filling large vessels. In the catalogue the equivalent with a spout is AG-1/05FE, with identical mounting.
What is the typical flow rate of this tap?
The manufacturer states a range of 9–15 l/min, depending on the pressure in the installation between 2 and 4 bar. In pre-rinsing the spray head nozzle matters more than the figure itself, because it is the nozzle that shapes the jet.
Enquiry
We will quote Deck-mounted pre-rinse spray tap (3/8") AG-1FE for your appliance
Give the mounting, the connection and what the station is for – we will reply with a selection and a quote.
