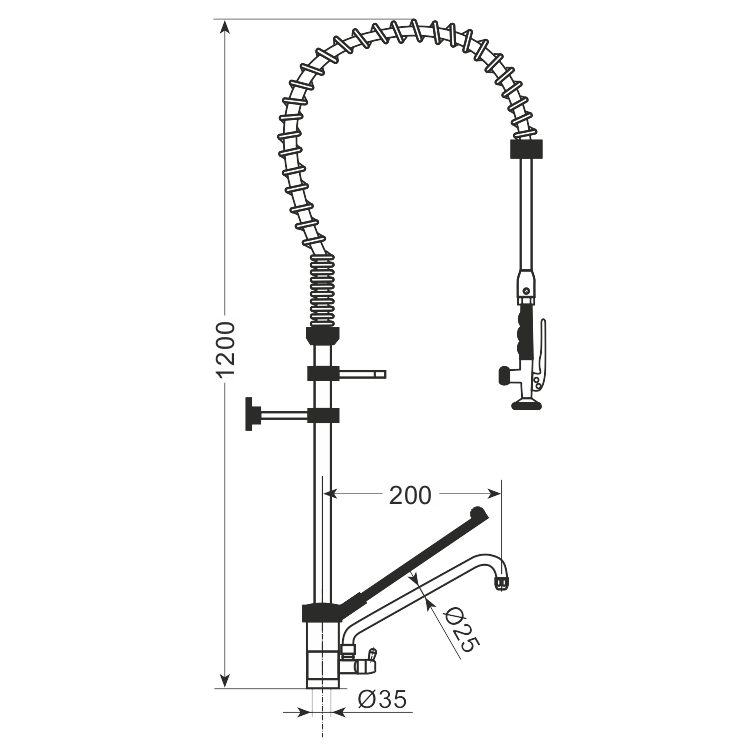

Technical drawing
Pre-rinse spray taps · AiFO
Deck-mounted pre-rinse spray tap (3/8") AG-D20B
Item no. AG-D20B · EAN 2010000147399
- ceramic cartridges
- stainless, insulated braided hose reinforced at the ends
- chrome-plated steel spring
- water flow from 9 l/min to 15 l/min at a pressure of 2 to 4 bar
- mounting hole Ø35 mm
- spout
- 200 mm
In brief
- A 200 mm spout – the shortest in the D series, intended for narrow bowls.
- Ceramic heads, an insulated stainless hose, a chrome-plated steel spring.
- Mounting in a Ø35 mm hole, 3/8 inch connection.
- The description does not list a swivel arm, unlike the AG-D30M model.
Prices and stock levels are in the B2B shop. When fitting out a whole back-of-house we quote the complete set.
Deck-mounted pre-rinse spray tap (3/8") AG-D20B – how to choose the right one
AG-D20B is a deck-mounted pre-rinse spray tap with a spout 200 mm long, with ceramic heads and a stainless braided hose. The water arrives through a 3/8 inch connection and the body sits in a cut-out 35 mm in diameter.
The D series is described by what the others lack: a specific spout reach. Two hundred millimetres lands roughly over the middle of a single bowl set close to the edge of the worktop – that is, where a longer arm would pour water onto the steel shelf instead of into the sink.
A shorter spout has one more advantage in a cramped kitchen: it does not get in the way of someone standing at the neighbouring station and does not take knocks from containers being carried past.
How to match the tap to the station, the connection and the flow required – we explained it in the selection guide for this category.
Where it works
- Single-bowl sinks of modest width
- Stations set in a line, where every centimetre of worktop counts
- Bars and small kitchens with limited working space
- Installations where the tap stands right at the edge of the bowl
FAQ
Frequently asked questions
Have not found your answer? Give the station, the connection and what it is for – we will select the tapware.
Ask a questionHow is the spout length chosen in the D series?
You measure the distance from the planned mounting hole to the centre of the bowl. The spout should reach at least that point – 200 mm is enough with a bowl set close to the tap, while wider sinks call for 250 or 300 mm.
Does the spout on AG-D20B swivel?
The list of features does not confirm it, although for some models in this category a swivel arm is stated explicitly. If swivelling the spout matters in the project, it has to be confirmed before ordering.
