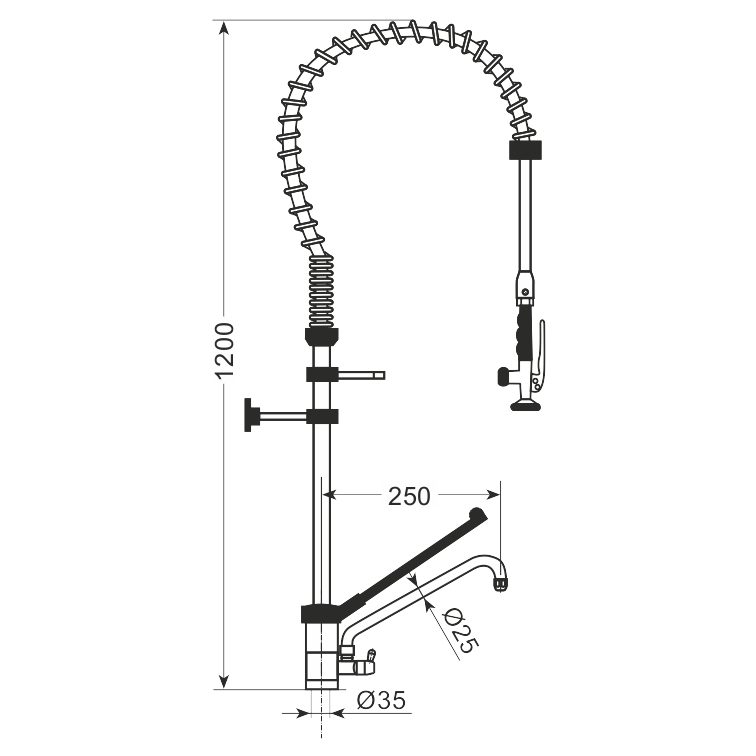

Technical drawing
Pre-rinse spray taps · AiFO
Deck-mounted pre-rinse spray tap (3/8") AG-D25B
Item no. AG-D25B · EAN 2010000147412
- ceramic cartridges
- stainless, insulated braided hose reinforced at the ends
- chrome-plated steel spring
- water flow from 9 l/min to 15 l/min at a pressure of 2 to 4 bar
- mounting hole Ø35 mm
- spout
- 250 mm
In brief
- The middle reach in the D series: a 250 mm spout.
- Ceramic heads, a chrome-plated spring, an insulated stainless hose.
- A 3/8 inch connection and a standard Ø35 mm mounting hole.
- Flow rate stated by the manufacturer: 9–15 l/min at 2–4 bar.
Prices and stock levels are in the B2B shop. When fitting out a whole back-of-house we quote the complete set.
Deck-mounted pre-rinse spray tap (3/8") AG-D25B – how to choose the right one
AG-D25B is a deck-mounted pre-rinse spray tap with a spout 250 mm long, ceramic heads and a stainless braided hose. It goes into a 35 mm hole, works on a 3/8 inch connection and delivers from 9 to 15 l/min at a pressure of 2–4 bar.
Two hundred and fifty millimetres is the length that on a typical catering sink reaches over the bowl with a margin while still not going beyond its far edge. When choosing between the three lengths in this series, this version most often turns out to be the safe choice.
It is worth measuring, though, rather than guessing. The five-centimetre difference between 200 and 250 mm decides whether the water falls into the middle of the bowl or onto its wall – and in the latter case it splashes all over the worktop.
How to match the tap to the station, the connection and the flow required – we explained it in the selection guide for this category.
Where it works
- Single-bowl sinks of standard width
- Stations where the tap stands in the corner of the worktop
- Kitchens ordering tapware without the chance to try it in place beforehand
- Installations with the bowl set at some distance from the mounting hole
FAQ
Frequently asked questions
Have not found your answer? Give the station, the connection and what it is for – we will select the tapware.
Ask a questionHow do you know whether 250 mm is needed instead of 200?
The distance from the axis of the mounting hole to the centre of the bowl decides. If it exceeds 20 cm, the shorter spout will end over the wall of the sink rather than over its base.
Does the length of the spout affect the flow rate?
Not in this series – all three lengths have the same stated flow. The reach changes only how far the stream goes, not the amount of water per minute.
