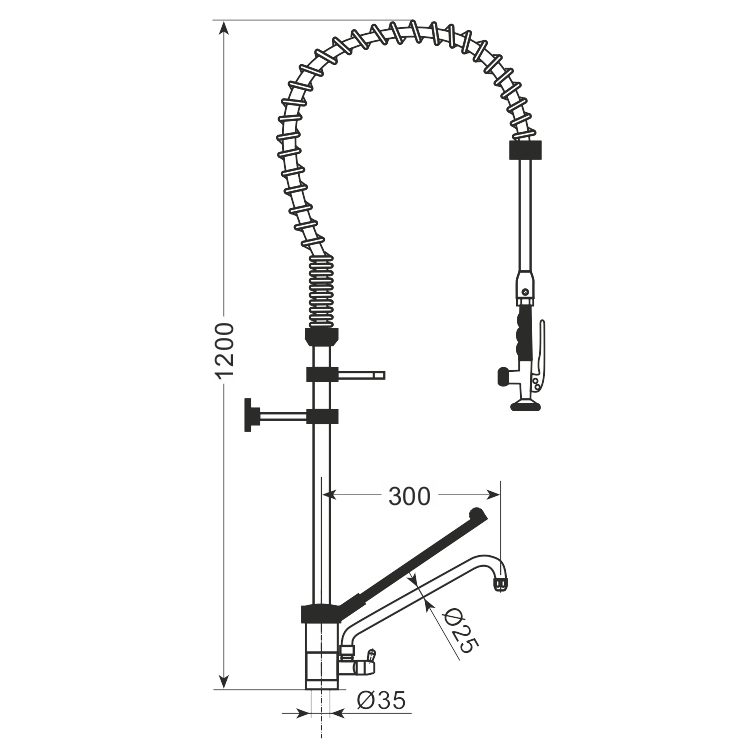

Technical drawing
Pre-rinse spray taps · AiFO
Deck-mounted pre-rinse spray tap (3/8") AG-D30B
Item no. AG-D30B · EAN 2010000147429
- ceramic cartridges
- stainless, insulated braided hose reinforced at the ends
- chrome-plated steel spring
- water flow from 9 l/min to 15 l/min at a pressure of 2 to 4 bar
- mounting hole Ø35 mm
- spout
- 300 mm
In brief
- The longest reach in the series: a 300 mm spout.
- Ceramic heads, a stainless hose reinforced at the ends, a chrome-plated spring.
- The standard Ø35 mm cut-out and a 3/8 inch connection.
- Thirty centimetres make it possible to serve a bowl set away from the mounting point.
Prices and stock levels are in the B2B shop. When fitting out a whole back-of-house we quote the complete set.
Deck-mounted pre-rinse spray tap (3/8") AG-D30B – how to choose the right one
AG-D30B is a deck-mounted pre-rinse spray tap with a spout 300 mm long, on ceramic heads, with a stainless braided hose and a chrome-plated spring. The connection is 3/8 inch and the mounting hole diameter is 35 mm.
Three hundred millimetres is the reach for double-bowl sinks and for situations in which the tap has to stand to one side because an extraction hood or a shelf hangs over the bowl. The water then reaches where it is needed, without moving the vessel under the stream.
A long arm has its price, though: it takes up more space above the worktop and is easier to catch when carrying tall containers. If the bowl lies close to the tap, a shorter version from the same series will be more practical.
How to match the tap to the station, the connection and the flow required – we explained it in the selection guide for this category.
Where it works
- Double-bowl sinks served by a single tap
- Stations where the tapware stands to the side, outside the outline of the bowl
- Large bowls for washing GN 1/1 containers and baking trays
- Installations with a shelf or an extraction hood over the sink
FAQ
Frequently asked questions
Have not found your answer? Give the station, the connection and what it is for – we will select the tapware.
Ask a questionWill 300 mm not turn out to be too much?
Sometimes they will. Over a cramped sink the end of the spout then goes beyond the bowl and water drips onto the worktop every time it is turned off. With a bowl narrower than 40 cm it is safer to reach for the 250 mm version.
Does a longer spout reduce the pressure at the outlet?
The manufacturer does not differentiate the flow rate between lengths in this series, so no such relationship follows from the data. The pressure at the station depends above all on the installation, not on a dozen or so centimetres of pipe.
Enquiry
We will quote Deck-mounted pre-rinse spray tap (3/8") AG-D30B for your appliance
Give the mounting, the connection and what the station is for – we will reply with a selection and a quote.
