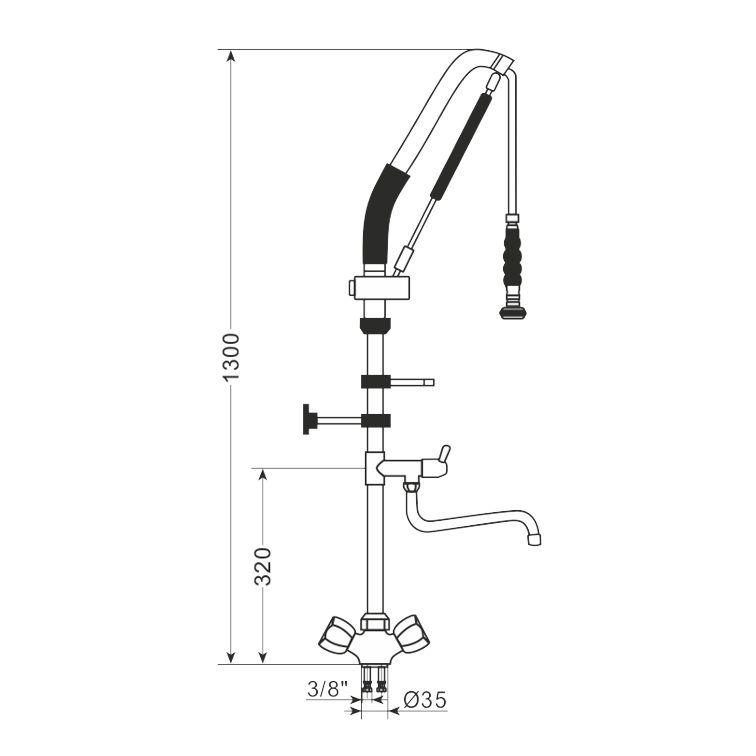

Technical drawing
Pre-rinse spray taps · AiFO
Deck-mounted tap with an automatic spray head AG-1/05SPC
Item no. AG-1 · EAN 2010000098851
- self-lubricating, non-seizing valve cartridges
- chrome-plated steel knobs
- ball joint between the hose and the spray head
- automatic shut-off of the water supply
- a gas spring damps the movement of the spray head
- swivel spout
- water flow from 9 l/min to 15 l/min at a pressure of 2 to 4 bar
- mounting hole Ø35 mm
In brief
- An automatic spray head: the supply shuts off by itself once the handle is released.
- A ball joint between the hose and the gun, and a gas spring damping the movement.
- Self-lubricating and non-seizing heads, a swivel spout included.
- 3/8 inch connection, Ø35 mm mounting hole, flow rate up to 15 l/min.
Prices and stock levels are in the B2B shop. When fitting out a whole back-of-house we quote the complete set.
Deck-mounted tap with an automatic spray head (3/8") AG-1/05SPC – how to choose the right one
AG-1/05SPC is a deck-mounted tap with an automatic spray head, with a swivel spout and self-lubricating heads, mounted in a 35 mm hole on a 3/8 inch connection. The movement of the gun is damped by a gas spring, and a ball joint works between the hose and the spray head.
Automatic shut-off of the supply changes the way work at the sink is done. The water runs only while the gun is being held, so putting it down halfway through a task does not end with a stream pouring into an empty bowl for several minutes.
A gas spring replaces the classic steel spring here: it guides the hose smoothly, without a jerk when released, and puts the gun back in the same place. At a station operated hundreds of times a day this is a difference in comfort, but also fewer knocks of the gun against the steel worktop.
How to match the tap to the station, the connection and the flow required – we explained it in the selection guide for this category.
Where it works
- Dishwashing areas that account for water consumption by station
- Stations where the spray head is put down frequently during work
- Hotel kitchens and canteens with heavy traffic at the sink
- Worktops with a single 35 mm cut-out and a 3/8 inch connection
FAQ
Frequently asked questions
Have not found your answer? Give the station, the connection and what it is for – we will select the tapware.
Ask a questionHow does the automatic shut-off of the supply work?
The water flows only while the lever of the gun is pressed – releasing the handle cuts the stream without reaching for the handles. The tap handles then set the temperature rather than the moment the water is turned on.
What is the ball joint at the spray head for?
It allows the gun to be turned relative to the hose in any direction instead of twisting the hose itself. As a result the braid does not coil into loops and does not work in torsion, which is what destroys it fastest.
How does this model differ from AG-1SPC?
In the swivel spout. AG-1/05SPC has it in the list, AG-1SPC does not – the remaining elements, including the joint, the gas spring and the self-lubricating heads, are described identically.
Enquiry
We will quote Deck-mounted tap with an automatic spray head (3/8") AG-1/05SPC for your appliance
Give the mounting, the connection and what the station is for – we will reply with a selection and a quote.
