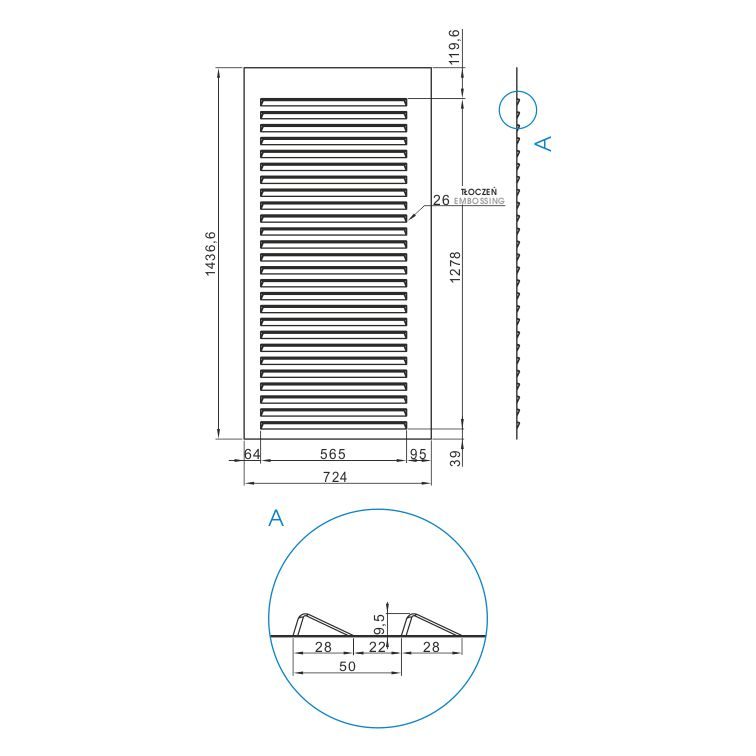

Technical drawing
Container · AiFO
Pressed side panel (1436.6x724 mm) KZ-BT1436724
Item no. KZ-BT1436724 · EAN 2010000159026
- made of AISI-304 stainless steel (0.6 mm)
- Material
- stainless steel
In brief
- Dimensions of 1436.6 × 724 mm – the only side panel in this group given to a tenth of a millimetre.
- A pressed stainless steel version, with a fixed profile along its whole length.
- The height of 724 mm sets it apart from the other two side panels, which are both 640 mm.
- Selection rests solely on the dimension matching the body the part is destined for.
Prices and stock levels are in the B2B shop. Non-standard versions are quoted individually.
Pressed side panel (1436.6x724 mm) KZ-BT1436724 – how to choose the right one
Pressed side panel KZ-BT1436724 is a stainless steel part measuring 1436.6 × 724 mm. It is a structural part of a unit, selected by dimension – it fits where both the length and the height match.
The fractional tenth of a millimetre in the length is not accidental. A dimension given that way denotes a part matched to a specific body rather than a sheet cut to size on site, so measuring by eye before ordering is not enough.
This side panel also stands apart in height. The other two parts in this group are 640 mm and form a common dimensional family; this one, at 724 mm, does not belong to it and cannot be used interchangeably.
How to choose a bin and a trolley for the back of house – we explained it in the selection guide for this category.
Where it works
- Replacing a side wall damaged in service
- Completing the body of a unit at the assembly stage
- Repairs after a transport trolley has struck something in the back of house
- Service orders where matching the dimension to the millimetre matters
FAQ
Frequently asked questions
Have not found your answer? Give the intended use and the dimensions – we will select the equipment.
Ask a questionCan this side panel be cut down to a smaller size?
Not in any way that would make sense. The shape of the pressing is tied to the edges of the part, so shortening the sheet takes away its function. For a different target dimension you have to turn to the 1525 × 640 mm or 757 × 640 mm side panel.
Where does the dimension of 1436.6 mm come from?
From the overall size of the unit the part works in. A value given that precisely is a signal that the tolerance is tight and that the part will not work in a structure of similar but not identical dimensions.
What other side panels are available?
There are two more in this group: 1525 × 640 mm and 757 × 640 mm. They differ from this version in both dimensions at once.
Enquiry
We will quote Pressed side panel (1436.6x724 mm) KZ-BT1436724 for your appliance
Give the intended use and the dimensions required – we will reply with a selection and a quote.
