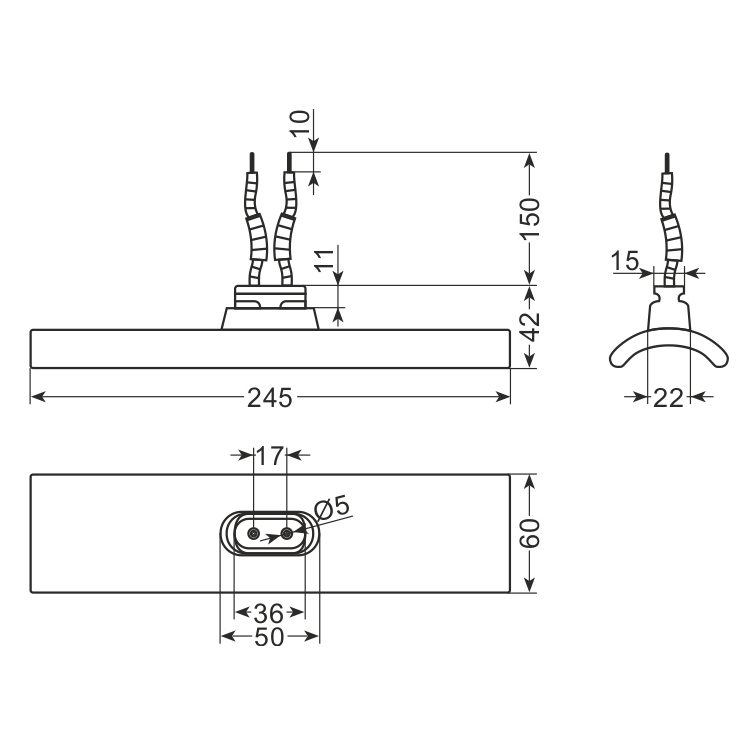

Technical drawing
Radiant heater · AiFO

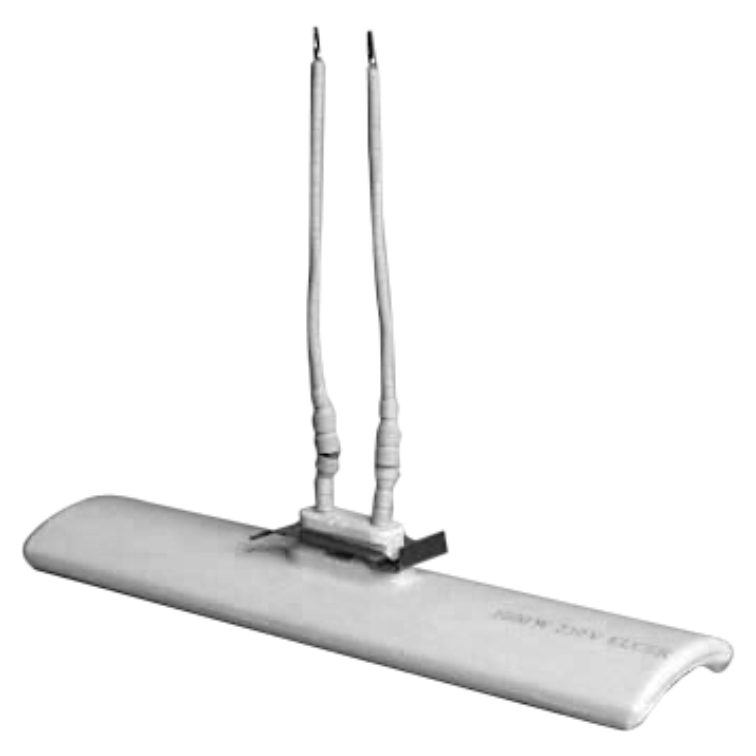

Ceramic infrared emitter (150 W) KE-ACS1-150W
Item no. KE-ACS1-150W · EAN 2010000101964
- features a spherical shape of the radiating surface (this allows the radiant heater to be placed further from the heated surface while reducing the number of radiant heaters on the heating table)
- when radiant heaters of this type are used in thermoforming machines, a distance of 15-20 cm from the heater to the formed material is recommended, and a spacing of 3-5 cm between the individual heaters
- they are well suited to heating panels in all drying and heating processes
- Power
- 150 W
In brief
- 150 W – the lowest output in the KE-ACS1 series described by a separate part number.
- A spherical radiating face, as across the whole KE-ACS family.
- An output for multi-element sets, less often for working on its own.
- The manufacturer intends this type for heater panels used in drying and heating.
Prices and stock levels are in the B2B shop. Heating systems are configured for the station.
Ceramic infrared emitter (150 W) KE-ACS1-150W – how to choose the right one
KE-ACS1-150W is a 150 W ceramic infrared emitter, the weakest element of the KE-ACS1 series available under its own code. It is intended for heater panels used in drying and heating processes.
One hundred and fifty watts rarely suffices as a standalone source of heat over a larger station. This output works rather in sets: several units spaced 3–5 cm apart give an even field instead of a single hot spot.
A fine step of output can also be a service choice. If an existing panel heats the material too strongly, replacing some of the units with weaker ones brings the temperature down without touching the supply or the fixings.
How to choose the power and the type of emitter for the station – we explained it in the selection guide for this category.
Where it works
- Sets of several emitters on one panel
- Gentle additional heating of small parts
- Correcting a working field that runs too hot
- Drying over a small area
FAQ
Frequently asked questions
Have not found your answer? Give the area and the mounting height – we will select the power and the type.
Ask a questionWill a single 150 W emitter heat a whole table?
Probably not. At this output it is typical to populate the panel with several units keeping a gap of 3–5 cm, so that the field heats evenly across its full width.
Is 150 W enough in a thermoforming machine?
That depends on the material and the size of the mould. The data sheet gives only the working geometry, that is 15–20 cm from the material being formed, and the manufacturer leaves the matching of output to the process to the user.
