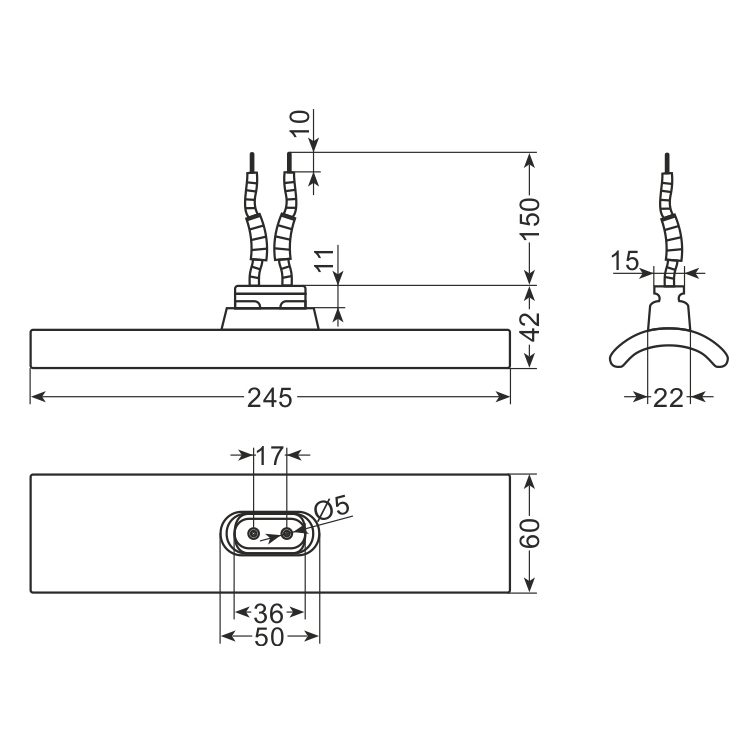

Technical drawing
Radiant heater · AiFO

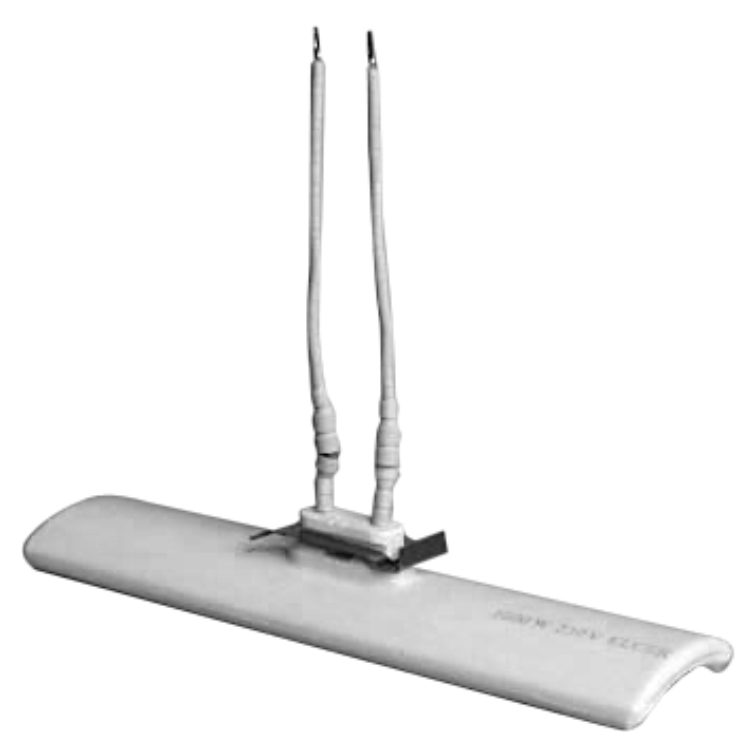

Ceramic infrared emitter (300 W) KE-ACS1-300W
Item no. KE-ACS1-300W · EAN 2010000111239
- features a spherical shape of the radiating surface (this allows the radiant heater to be placed further from the heated surface while reducing the number of radiant heaters on the heating table)
- when radiant heaters of this type are used in thermoforming machines, a distance of 15-20 cm from the heater to the formed material is recommended, and a spacing of 3-5 cm between the individual heaters
- they are well suited to heating panels in all drying and heating processes
- Power
- 300 W
In brief
- 300 W falls in the middle of the output range of the KE-ACS1 series.
- The same output is offered by the KE-VL-300C quartz halogen lamp.
- A spherical face allows a heating table to be populated more sparsely.
- A single-output version, with no variants to choose from.
Prices and stock levels are in the B2B shop. Heating systems are configured for the station.
Ceramic infrared emitter (300 W) KE-ACS1-300W – how to choose the right one
KE-ACS1-300W is a 300 W ceramic infrared emitter. The spherical radiating surface spreads the heat wider than a flat face, thanks to which one element covers a larger section of the heating table.
Three hundred watts falls more or less in the middle of the available range: below it are the 150 and 250 W variants, above it 400, 500, 650 and 1000 W. It is the output at which selection usually starts when there is no data from a similar station.
The KE-VL-300C infrared lamp has the same value, but it is an entirely different element: a clear quartz halogen tube supplied at 240 V instead of a ceramic body. Matching outputs therefore does not mean interchangeability in the same mounting.
How to choose the power and the type of emitter for the station – we explained it in the selection guide for this category.
Where it works
- A starting point when choosing the output for a new panel
- Heating medium-sized working fields
- Intermediate drying on a line
- Thermoforming of smaller parts
FAQ
Frequently asked questions
Have not found your answer? Give the area and the mounting height – we will select the power and the type.
Ask a questionWhat output should selection start from when there is no data?
In practice from the middle of the range, that is around three hundred watts, and only after a trial should you go lower or add output. The catalogue contains no conversion per unit area, so the first choice is always a trial fitting.
Will a 300 W emitter replace a lamp of the same output?
Not without changing the mounting. These are two different constructions – a ceramic body and a quartz halogen tube at 240 V – so agreement in watts does not translate into mechanical interchangeability.
