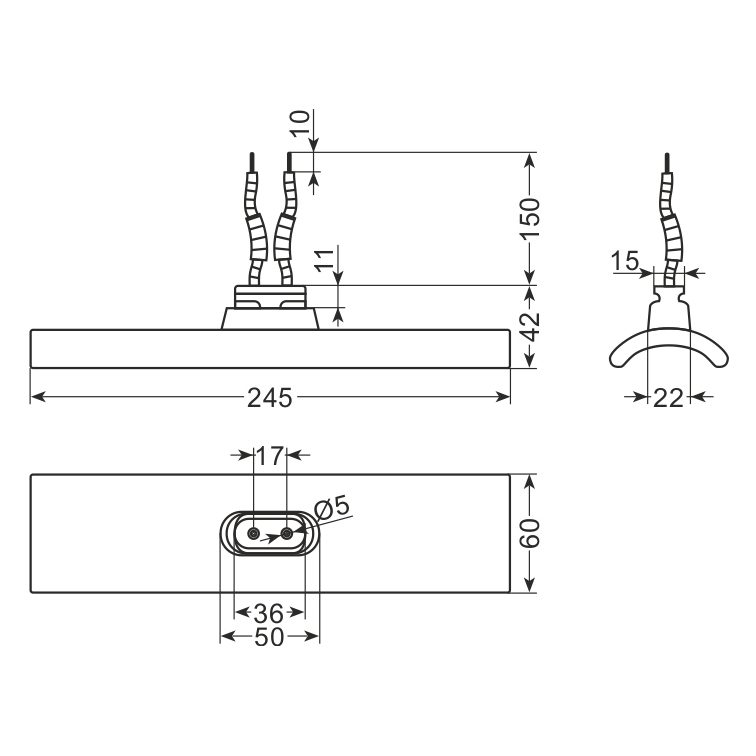

Technical drawing
Radiant heater · AiFO

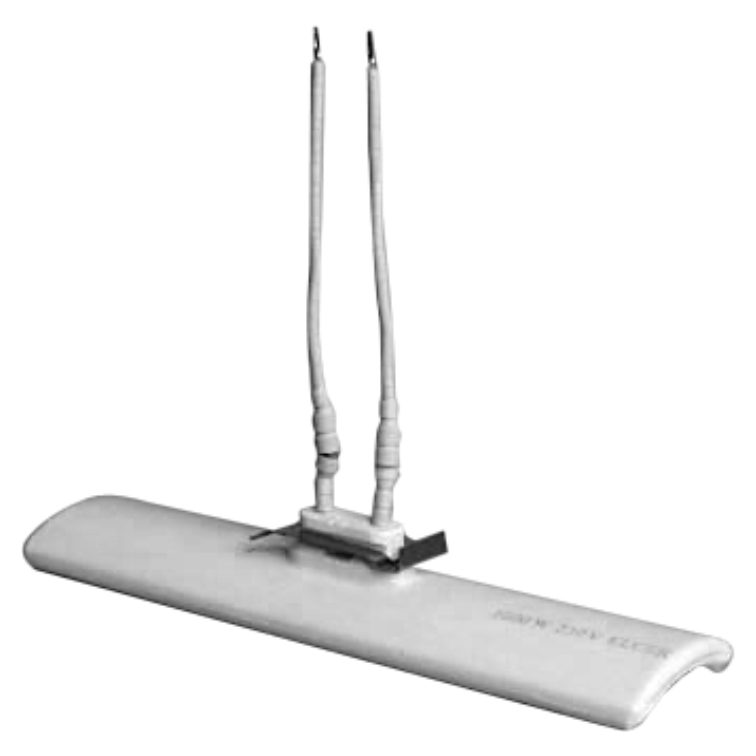

Ceramic infrared emitter (400 W) KE-ACS1-400W
Item no. KE-ACS1-400W · EAN 2010000161470
- features a spherical shape of the radiating surface (this allows the radiant heater to be placed further from the heated surface while reducing the number of radiant heaters on the heating table)
- when radiant heaters of this type are used in thermoforming machines, a distance of 15-20 cm from the heater to the formed material is recommended, and a spacing of 3-5 cm between the individual heaters
- they are well suited to heating panels in all drying and heating processes
- Power
- 400 W
In brief
- 400 W is the first step above three hundred watts in the KE-ACS1 series.
- A spherical radiating face and the typical application in heater panels.
- The manufacturer lists drying among the main applications of this family.
- One output per part number, without variants.
Prices and stock levels are in the B2B shop. Heating systems are configured for the station.
Ceramic infrared emitter (400 W) KE-ACS1-400W – how to choose the right one
KE-ACS1-400W is a 400 W ceramic infrared emitter. The spherical shape of the radiating surface allows the element to be set further from the object being heated while populating the table with fewer points.
Four hundred watts is the output at which a panel starts to cope with damp material, and not merely with holding a temperature. The manufacturer lists drying outright as one of the applications of this family of emitters.
As the output rises, the supply calculation matters more. The gap of 3–5 cm given for thermoforming is tight, so over a short run of panel a considerable sum of watts quickly builds up – four units of this size already come to 1600 W.
How to choose the power and the type of emitter for the station – we explained it in the selection guide for this category.
Where it works
- Drying materials with a high moisture content
- Densely populated heater panels
- Stations working in continuous operation
- Thermoforming in a production cycle
FAQ
Frequently asked questions
Have not found your answer? Give the area and the mounting height – we will select the power and the type.
Ask a questionHow much power will a panel with four such emitters draw?
Four units at 400 W come to 1600 W of installed power. With tight spacing that fits on a short run of table, so the supply to the station has to be calculated together with the other loads.
Is 400 W suitable for drying?
The manufacturer lists drying among the applications of the whole KE-ACS family, without differentiating by output. The process time itself depends on the material and the catalogue data sheet does not define it.
Enquiry
We will quote Ceramic infrared emitter (400 W) KE-ACS1-400W for your appliance
Give the size of the serving area and the mounting height – we will reply with a selection and a quote.
