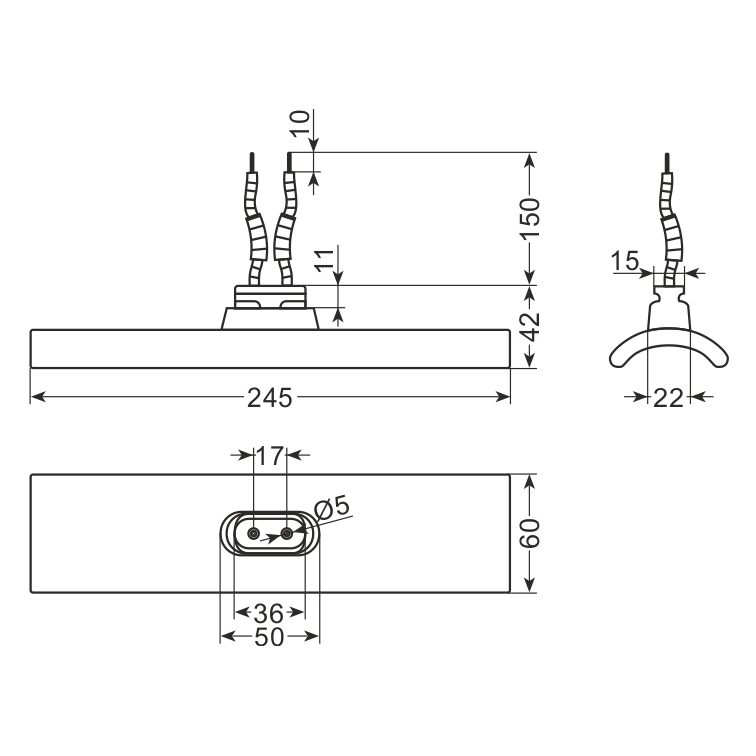

Technical drawing
Radiant heater · AiFO

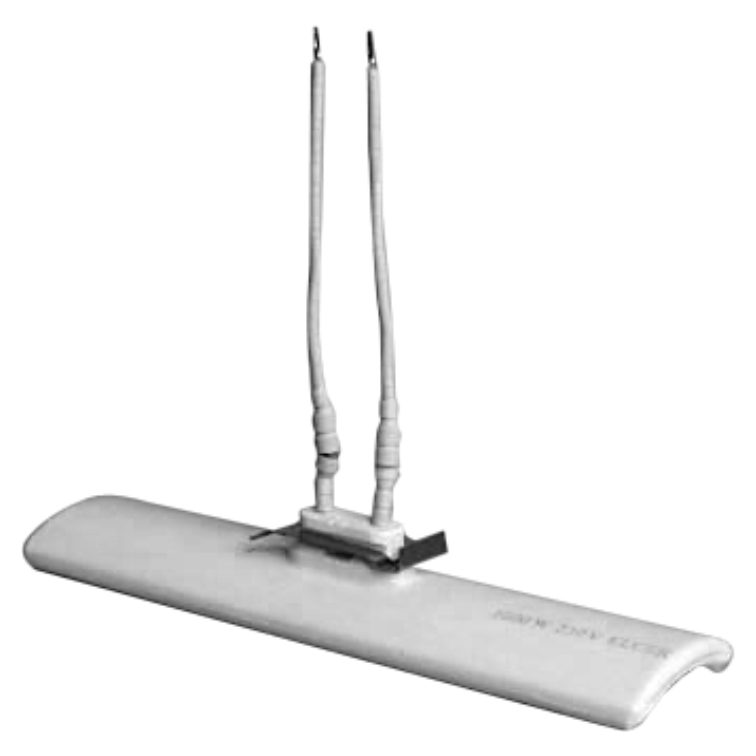

Ceramic infrared emitter (500 W) KE-ACS1-500W
Item no. KE-ACS1-500W · EAN 2010000133927
- features a spherical shape of the radiating surface (this allows the radiant heater to be placed further from the heated surface while reducing the number of radiant heaters on the heating table)
- when radiant heaters of this type are used in thermoforming machines, a distance of 15-20 cm from the heater to the formed material is recommended, and a spacing of 3-5 cm between the individual heaters
- they are well suited to heating panels in all drying and heating processes
- Power
- 500 W
In brief
- 500 W in the KE-ACS1 series – one of two items of this output in the range.
- The other is the KE-ACS2-500W, described with an identical set of features.
- This part number suits a panel built on KE-ACS1 elements.
- Half the maximum output available among the emitters in this category.
Prices and stock levels are in the B2B shop. Heating systems are configured for the station.
Ceramic infrared emitter (500 W) KE-ACS1-500W – how to choose the right one
KE-ACS1-500W is a 500 W ceramic infrared emitter belonging to the KE-ACS1 series – the same one that holds the variants from 150 to 1000 W. It is suited to heater panels in drying and heating.
Five hundred watts is the only point at which the two series of ceramic emitters meet. The KE-ACS2 series carries a twin item of the same output, and the catalogue data sheets of both models are described in the same way.
The choice between them matters when the panel is already populated. Keeping to one series simplifies the spare parts store and removes the question of whether both bodies have identical mountings – something the catalogue does not settle.
How to choose the power and the type of emitter for the station – we explained it in the selection guide for this category.
Where it works
- Panels built on the KE-ACS1 series
- Heating larger fields without reaching for 650 W
- Replacing an element in a working heating table
- Drying at stations with a fixed cycle
FAQ
Frequently asked questions
Have not found your answer? Give the area and the mounting height – we will select the power and the type.
Ask a questionHow does the KE-ACS1-500W differ from the KE-ACS2-500W?
In the series and the EAN number. Beyond that the manufacturer describes both models in the same way, output included, and gives no difference in dimensions or in the method of mounting, so when replacing one it is safer to stay with the series already in service.
Is 500 W a lot for a single emitter?
In this category it is half the upper value: the weakest variant is one hundred watts, the strongest a thousand. Five hundred therefore comes out high, but it is not the end of the range.
