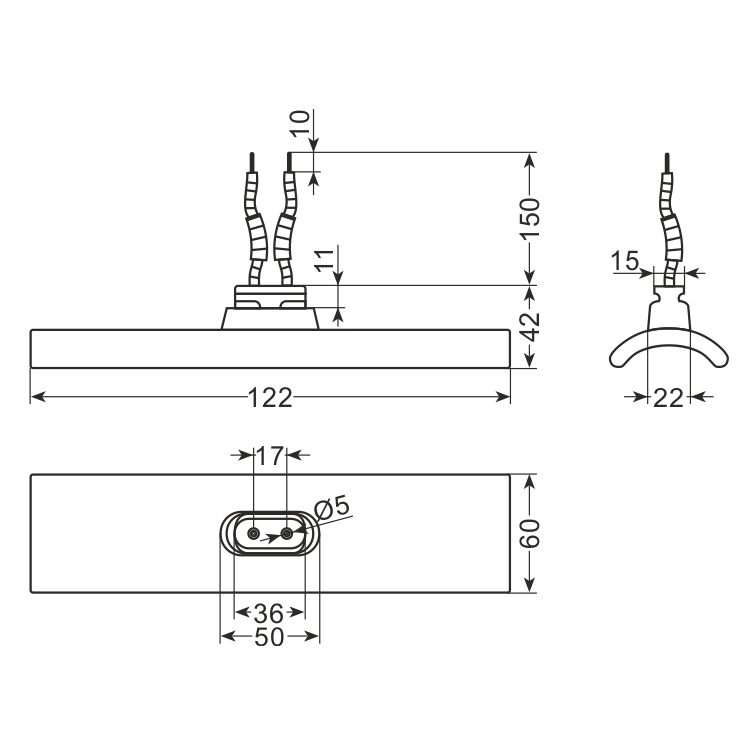

Technical drawing
Radiant heater · AiFO

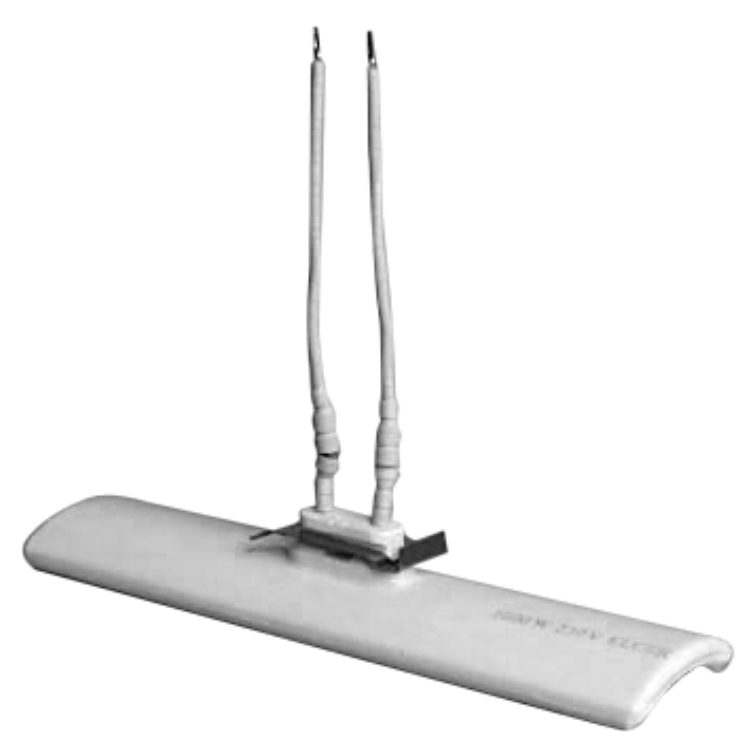

Ceramic infrared emitter (500 W) KE-ACS2-500W
Item no. KE-ACS2-500W · EAN 2010000130216
- features a spherical shape of the radiating surface (this allows the radiant heater to be placed further from the heated surface while reducing the number of radiant heaters on the heating table)
- when radiant heaters of this type are used in thermoforming machines, a distance of 15-20 cm from the heater to the formed material is recommended, and a spacing of 3-5 cm between the individual heaters
- they are well suited to heating panels in all drying and heating processes
- Power
- 500 W
In brief
- The most powerful item in the KE-ACS2 series is precisely 500 W.
- Above this value the series ends; higher outputs are carried by the KE-ACS1.
- The other variants in this series are 200 and 325 W.
- The construction is described in the same way as the rest of the family: a spherical radiating field.
Prices and stock levels are in the B2B shop. Heating systems are configured for the station.
Ceramic infrared emitter (500 W) KE-ACS2-500W – how to choose the right one
KE-ACS2-500W is a 500 W ceramic infrared emitter and at the same time the most powerful element of the KE-ACS2 series. Above this value the catalogue moves to the KE-ACS1 series, which covers the 650 and 1000 W variants.
For a panel built on the KE-ACS2 this model is the ceiling. If heat is still lacking once every position is populated, the next step will not be a more powerful element in this series, but a change of family or the addition of further heating points.
This is worth bearing in mind as early as the design stage of the table. Leaving a margin in the number of positions is often cheaper than later rebuilding the panel for a different series of emitters.
How to choose the power and the type of emitter for the station – we explained it in the selection guide for this category.
Where it works
- Panels based on the KE-ACS2 series
- The output ceiling in an existing installation
- Additional heating of the zones with the highest demand
- Stations extended in stages
FAQ
Frequently asked questions
Have not found your answer? Give the area and the mounting height – we will select the power and the type.
Ask a questionWhat should be done when 500 W in the KE-ACS2 series is not enough?
Two routes remain: add further heating points or move to the KE-ACS1 series, where the 650 and 1000 W variants are available. The manufacturer has not provided a more powerful item in this series.
Does the data sheet give the dimensions of the emitter?
No. The description covers the output, the shape of the radiating surface and the recommended working distances, but it contains neither the dimensions of the body nor the type of connection. When designing the mounting these have to be confirmed with the supplier.
