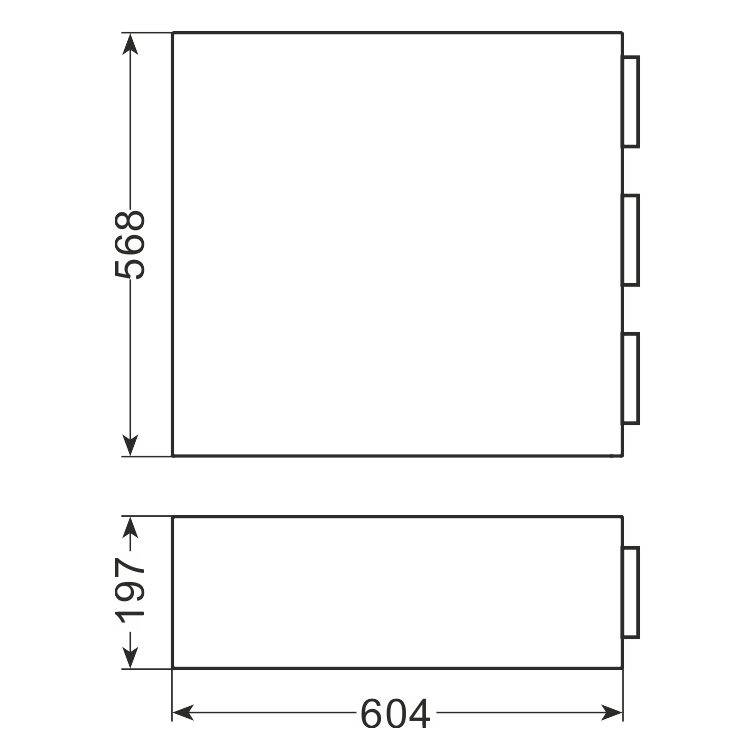

Technical drawing
Dispenser · AiFO
Cup dispenser DZ-C2953BK
Item no. DZ-C2953BK · EAN 2010000057889
- made of black polystyrene
- a housing made of AISI-304 stainless steel available to order
- Dimensions
- 568 x 197 x 604 mm
- Dispenser type
- 3x DZ-C5450C
- Cup diameter
- fi79-114 mm
In brief
- Three tubes in one 568 × 197 × 604 mm housing.
- A shared cup range of Ø79–114 mm.
- The widest version in the C295x family.
- Black polystyrene, AISI-304 stainless steel to order.
Prices and stock levels are in the B2B shop. Versions for non-standard vessels are quoted individually.
Cup dispenser DZ-C2953BK – how to choose the right one
DZ-C2953BK is a three-tube cup dispenser for the Ø79–114 mm range in a housing measuring 568 × 197 × 604 mm, made of black polystyrene.
Three columns is the configuration for a full drinks menu: small coffee, large coffee and a vessel for a cold drink in a single unit. Instead of three separate bodies, one stands on the counter, with a single filling routine.
At just under sixty centimetres wide, it is worth checking what will stand alongside. This is a footprint comparable to a kitchen cabinet, so its place must be assigned at the drawing stage, not after delivery.
How to choose a dispenser for the vessel diameter and the worktop – we explained it in the selection guide for this category.
Where it works
- Extended drinks stations with three vessel sizes
- Canteens and cafeterias with a self-service line
- Conference rooms serving coffee breaks
- Outlets where refilling is to take place once per shift
FAQ
Frequently asked questions
Have not found your answer? Give the vessel diameter and the type of mounting – we will select the dispenser.
Ask a questionAre the three tubes independent?
Each is a separate DZ-C5450C module, so it empties and fills separately. One column running out does not stop the others.
How wide a worktop is needed?
The body alone takes up 568 mm, to which clearance for access from the sides must be added. On a narrow counter, two smaller units placed at two points often make more sense.
Enquiry
We will quote Cup dispenser DZ-C2953BK for your appliance
Give the vessel diameter and how it is to be set into the worktop – we will reply with a selection and a quote.
