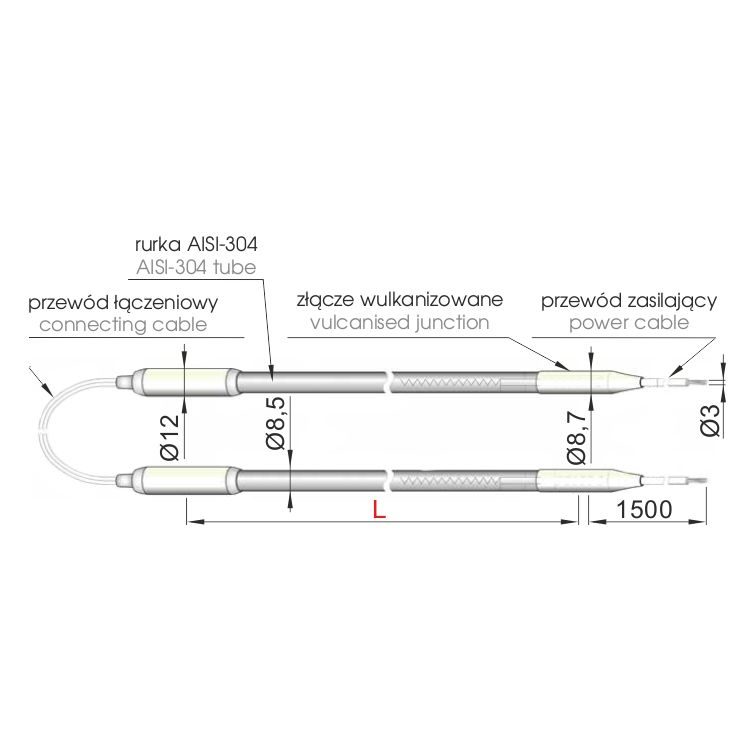

Technical drawing
Heating cord · AiFO
Tubular heater AISI-304, double GK-GR-RSSG
Item no. AISI-304 · EAN 2010000164242
- used in the drip channel under the evaporator
- on request, manufacture to the customer's specification is possible
- EN 60335 standard, CE certificate
- supply voltage
- 230 V
- power
- 250 ÷ 3500 W
- outer tube diameter
- Ø8,5 mm
GK-GR-RSSG models [power length]
- GK-GR-RSSG0300 250W 300mm
- GK-GR-RSSG0400 260W 400mm
- GK-GR-RSSG0500 400W 500mm
- GK-GR-RSSG0600 400W 600mm
- GK-GR-RSSG0670 450W 670mm
- GK-GR-RSSG0700 450W 700mm
- GK-GR-RSSG0800 500W 800mm
- GK-GR-RSSG0870 500W 870mm
- GK-GR-RSSG0900 600W 900mm
- GK-GR-RSSG1000 660W 1000mm
- GK-GR-RSSG1100 600W 1100mm
- GK-GR-RSSG1270 900W 1270mm
- GK-GR-RSSG1300 800W 1300mm
- GK-GR-RSSG1500 1100W 1500mm
- GK-GR-RSSG1700 1400W 1700mm
- GK-GR-RSSG1900 1600W 1900mm
- GK-GR-RSSG2100 1750W 2100mm
- GK-GR-RSSG2300 2000W 2300mm
- GK-GR-RSSG2550 2200W 2550mm
- GK-GR-RSSG2700 2400W 2700mm
- GK-GR-RSSG2900 2500W 2900mm
- GK-GR-RSSG3000 2600W 3000mm
- GK-GR-RSSG3100 2690W 3100mm
- GK-GR-RSSG3300 2790W 3300mm
- GK-GR-RSSG3500 2890W 3500mm
Available models and sizes as currently listed in the B2B shop. Non-standard versions are made to order.
In brief
- The GK-GR-RSSG is a double tubular heater in AISI-304 steel, for the drip tray under an evaporator.
- The output range covers 250–3500 W on a 230 V supply.
- The outside diameter of the tube is Ø8.5 mm.
- Versions to the customer's specification are possible on request.
Prices and stock levels are in the B2B shop. Heaters made to length and with non-standard terminations are quoted individually.
Tubular heater AISI-304, double – various models GK-GR-RSSG – how to choose the right one
The GK-GR-RSSG tubular heater in the double version is made of AISI-304 steel and works in the drip tray under an evaporator. The output falls within 250–3500 W at 230 V, and the tube has a diameter of Ø8.5 mm.
The double version means two heating elements instead of one – the upper output limit is therefore twice as high as in the single equivalent. For the same installed length that gives considerably more heat.
The heater works in a place where water from the frost runs down and freezes again. AISI-304 steel takes that cycle without corroding, and the constant Ø8.5 mm diameter makes it easier to fit into ready-made brackets in the tray.
How to choose the type of heater and the power per metre – we explained it in the selection guide for this category.
Where it works
- Drip trays under evaporators carrying a lot of moisture
- Low-temperature applications where defrosting generates a great deal of ice
- Equipment requiring a higher heat output within the same length
- Non-standard versions made to the customer's drawing
FAQ
Frequently asked questions
Have not found your answer? Give the length and where it will be routed – we will select the type of heater and the power.
Ask a questionWhen should the double version be chosen instead of the single one?
When a single element does not close the balance – the output ceiling here is 3500 W against 1750 W in the single version, at the same tube diameter.
Can the heater be ordered in a non-standard length?
Yes, the manufacturer allows a version to the customer's specification on request. For a quotation the shape, the length and the type of termination are needed.
Enquiry
We will quote Tubular heater AISI-304, double – various models GK-GR-RSSG for your appliance
Give the length, the voltage and where it will be routed – we will reply with a selection and a quote.
