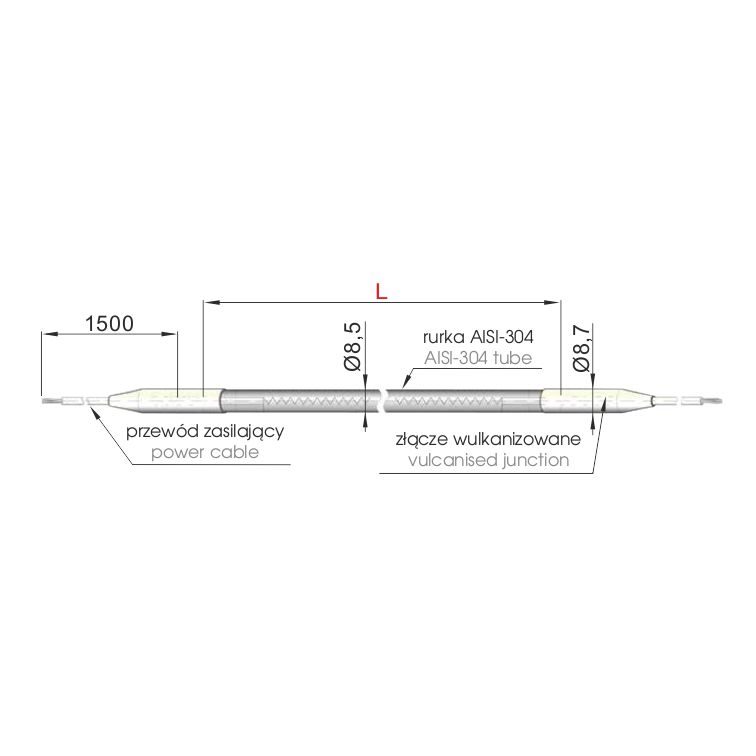

Technical drawing
Heating cord · AiFO
Tubular heater AISI-304, single GK-GR-RSSE
Item no. AISI-304 · EAN 2010000164181
- used in the drip channel under the evaporator
- on request, manufacture to the customer's specification is possible
- EN 60335 standard, CE certificate
- supply voltage
- 230 V
- power
- 125 ÷ 1750 W
- outer tube diameter
- Ø8,5 mm
GK-GR-RSSE models [power length]
- GK-GR-RSSE0300 125W 300mm
- GK-GR-RSSE0400 130W 400mm
- GK-GR-RSSE0500 200W 500mm
- GK-GR-RSSE0600 200W 600mm
- GK-GR-RSSE0700 225W 700mm
- GK-GR-RSSE0800 250W 800mm
- GK-GR-RSSE0900 300W 900mm
- GK-GR-RSSE1000 330W 1000mm
- GK-GR-RSSE1100 300W 1100mm
- GK-GR-RSSE1300 400W 1300mm
- GK-GR-RSSE1400 500W 1400mm
- GK-GR-RSSE1500 550W 1500mm
- GK-GR-RSSE1700 700W 1700mm
- GK-GR-RSSE1800 750W 1800mm
- GK-GR-RSSE1900 800W 1900mm
- GK-GR-RSSE2000 850W 2000mm
- GK-GR-RSSE2100 875W 2100mm
- GK-GR-RSSE2300 1000W 2300mm
- GK-GR-RSSE2550 1100W 2550mm
- GK-GR-RSSE2600 1100W 2600mm
- GK-GR-RSSE2700 1200W 2700mm
- GK-GR-RSSE3000 1300W 3000mm
- GK-GR-RSSE3100 1345W 3100mm
- GK-GR-RSSE3300 1395W 3300mm
- GK-GR-RSSE3500 1445W 3500mm
Available models and sizes as currently listed in the B2B shop. Non-standard versions are made to order.
In brief
- The GK-GR-RSSE is a single AISI-304 tubular heater for a drip tray.
- The catalogue output range is 125–1750 W at 230 V.
- The tube has the same diameter as the double version: Ø8.5 mm.
- Versions to the customer's specification are possible.
Prices and stock levels are in the B2B shop. Heaters made to length and with non-standard terminations are quoted individually.
Tubular heater AISI-304, single – various models GK-GR-RSSE – how to choose the right one
The GK-GR-RSSE tubular heater in the single version is made of AISI-304 steel, with a tube diameter of Ø8.5 mm. The output covers the 125–1750 W range at 230 V, and its place of work is the drip tray under an evaporator.
The lower limit of 125 W matters more here than the upper one. It is the lowest output in the whole tubular family, so this part number also serves small appliances in which a more powerful heater would needlessly raise the temperature inside the cabinet.
The choice between the single and the double version is settled by the balance, not by the space – both versions have the same diameter and work at the same point in the appliance.
How to choose the type of heater and the power per metre – we explained it in the selection guide for this category.
Where it works
- Drip trays in cabinets and display cases of modest volume
- Refrigeration equipment with a moderate build-up of frost
- Installations where low power consumption matters
- Replacing a worn heater of a similar catalogue output
FAQ
Frequently asked questions
Have not found your answer? Give the length and where it will be routed – we will select the type of heater and the power.
Ask a questionHow should an output be selected from the 125–1750 W range?
The starting point is the length of the tray and the amount of water that runs off during defrosting. Too powerful a heater raises the thermal load on the appliance, too weak a one does not keep the drain clear.
Do the single and double versions share the same mounting?
The tube diameter is identical in both cases at Ø8.5 mm, but the arrangement of the elements is different – the shape and the length have to be confirmed when ordering.
Enquiry
We will quote Tubular heater AISI-304, single – various models GK-GR-RSSE for your appliance
Give the length, the voltage and where it will be routed – we will reply with a selection and a quote.
