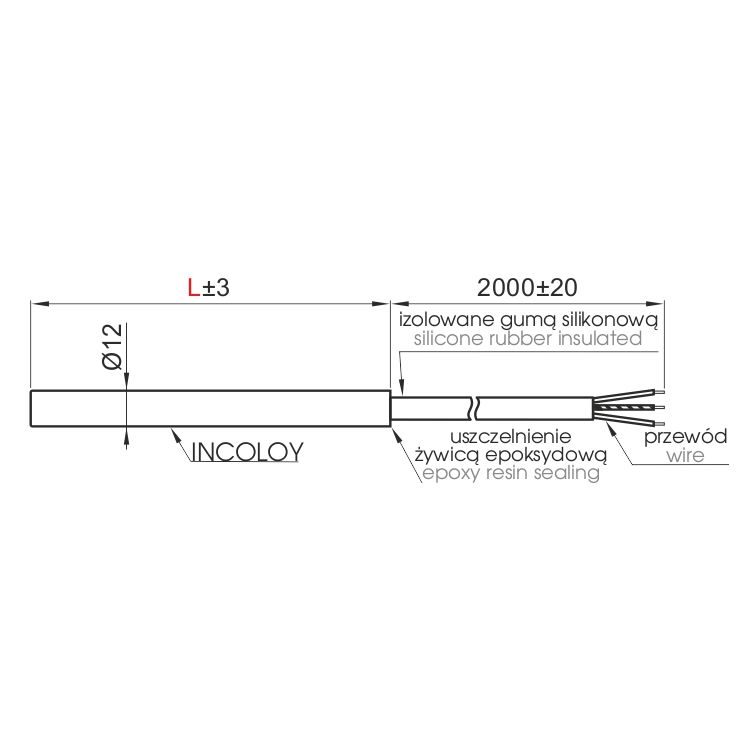

Technical drawing
PTC heater · AiFO
Self-regulating INCOLOY cartridge heater, supply voltage 230V KP-NPTC INCOLOY
Item no. KP-NPTC · EAN 2010000164150
- self-regulating heater made of acid-resistant INCOLOY steel
- EN 60335-1 standard, CE certificate
- supply voltage
- 230 V
KP-NPTC models [length power]
- KP-NPTC1 C INCOLOY 120mm 110W
- KP-NPTC2 C INCOLOY 180mm 230W
Available models and sizes as currently listed in the B2B shop. Non-standard versions are made to order.
In brief
- The KP-NPTC is a cartridge version, pushed into a prepared hole instead of being screwed in.
- The body material is acid-resistant INCOLOY steel, and the supply is 230 V.
- The manufacturer cites the EN 60335-1 standard and CE certification.
- The description states neither the output nor the dimensions – these are settled when ordering.
Prices and stock levels are in the B2B shop. Heaters made to length and with non-standard terminations are quoted individually.
Self-regulating INCOLOY cartridge heater, supply voltage 230 V – various models KP-NPTC INCOLOY – how to choose the right one
The KP-NPTC self-regulating heater is a cartridge version in acid-resistant INCOLOY steel, supplied at 230 V. Compliance is declared with the EN 60335-1 standard, with CE certification.
Cartridge mounting changes the whole logic of selection: instead of a thread and a seal, what counts is the diameter and the depth of the seat. The component has to go in over its full length, otherwise part of the heated section stays outside the material it is meant to heat.
The data sheet for this model is noticeably more sparing than for the screw-in versions – it gives neither the output nor the dimensions. For the enquiry you therefore have to prepare the dimension of the seat and the expected output, not just the part number.
How to choose the type of heater and the power per metre – we explained it in the selection guide for this category.
Where it works
- Through and blind seats prepared for a cartridge
- Equipment with no room for a screw-on flange
- Replacing cartridge heaters in existing equipment
- Designs with a stainless steel body
FAQ
Frequently asked questions
Have not found your answer? Give the length and where it will be routed – we will select the type of heater and the power.
Ask a questionHow does it differ from the screw-in version?
In how it is seated in the equipment. The screw-in version has its own fixing point, the cartridge one relies on a seat made in the component being heated.
What details should be given with the enquiry?
The dimension of the seat, the depth available for seating and the expected output. The catalogue describes this part number in general terms, as a family of models.
Enquiry
We will quote Self-regulating INCOLOY cartridge heater, supply voltage 230 V – various models KP-NPTC INCOLOY for your appliance
Give the length, the voltage and where it will be routed – we will reply with a selection and a quote.
