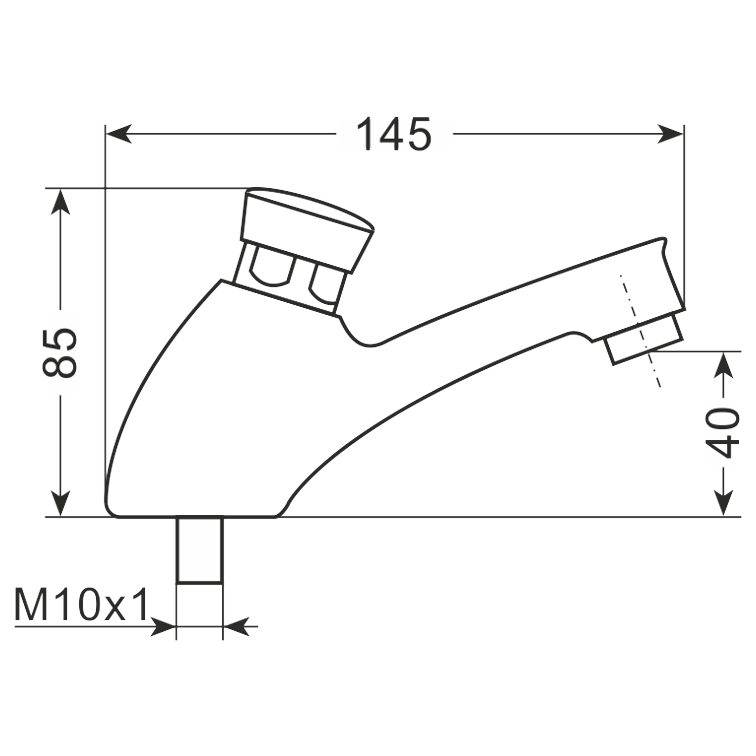

Technical drawing
Sink mixer taps · AiFO
Push-button tap (2xM10x1) AG-82MX
Item no. AG-82MX · EAN 2010000056189
- tap with a timer
- fitted with a water mixer
- body
- chrome-plated brass
In brief
- A push-button version with a mixer – it delivers water at a blended temperature.
- Threaded connections 2 × M10 × 1, one each for hot and cold water.
- The timer shuts off the flow without the user.
- The body is made of chrome-plated brass.
Prices and stock levels are in the B2B shop. When fitting out a whole back-of-house we quote the complete set.
Push-button tap (2xM10x1) AG-82MX – how to choose the right one
AG-82MX is a push-button tap fitted with a water mixer and a timer. The connections take the form of two M10 × 1 threads – one each for hot and cold water – and the body is made of chrome-plated brass.
The presence of the mixer is the key feature here: water at a blended temperature comes out of the outlet, not cold water only. At hand wash points that is the difference between comfort and washing in whatever happens to come from a single supply.
M10 × 1 threads are a connection type found with flexible hose connections rather than rigid pipes. Before ordering you have to check how the lines are terminated at the given point, because this differs from the usual inch connections in this category.
How to match the tap to the station, the connection and the flow required – we explained it in the selection guide for this category.
Where it works
- Staff wash basins with hot and cold water supplied
- Hand wash points that need lukewarm water
- Installations terminated with connection hoses
- Sanitary facilities with a limited draw per use
FAQ
Frequently asked questions
Have not found your answer? Give the station, the connection and what it is for – we will select the tapware.
Ask a questionHow does M10 × 1 differ from an inch connection?
It is a metric thread of a different size and pitch, so it does not join directly to a 1/2" or 3/8" pipe. The compatibility of the lines has to be checked before ordering, because forcing a fit ends in a leak.
Why does a push-button tap need a mixer?
Because versions without a mixer deliver water from a single supply. A mixer allows both lines to be brought to the button and an intermediate temperature to be obtained at the outlet, which for hand washing is usually a condition rather than an extra.
