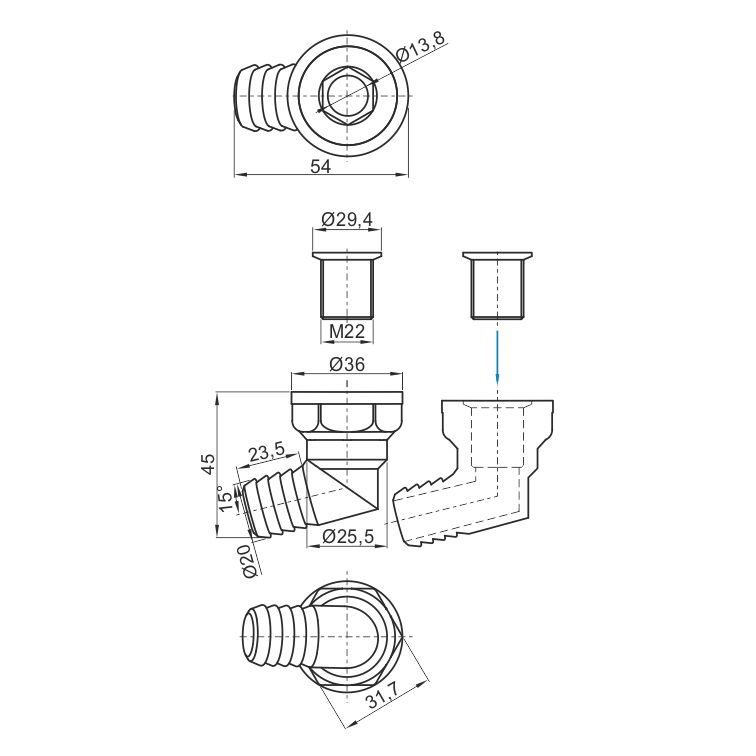

Technical drawing
Funnel · AiFO
Angled funnel KP-LK2
Item no. KP-LK2 · EAN 2010000132951
- made of white PVC
- Material
- PVC
In brief
- The angled version of the KP-CD funnel, the KP-LK1 - same material, different outlet routing.
- White PVC, with no thread given in the datasheet.
- The bent outlet shortens the space needed under the unit's base.
- Chosen as an alternative to the straight version depending on the space under the furniture.
Prices and stock levels are in the B2B shop. Honeycomb panels are cut to size, non-standard parts are quoted individually.
Angled funnel KP-LK2 – how to choose the right one
The KP-LK2 angled funnel is a white PVC part that drains water from a refrigeration unit through a bent outlet. It is the angled counterpart to the straight KP-LK1 funnel.
The choice between the two versions comes down to what is under the base of the furniture. An outlet pointed sideways lets the hose run along the frame instead of hunting for a vertical passage where only a few centimetres have been left.
PVC is a reliable material for this use: it does not absorb water, withstands typical cleaning chemicals and does not deform under the weight of a connected pipe.
How to match a drain to the hole and a honeycomb to the cabinet – we explained it in the selection guide for this category.
Where it works
- Units with a low plinth, with no room for a straight stub
- Enclosed furniture, where the hose runs along the frame
- Replacing a straight funnel with a bent version during a rebuild
- Installations with a limited gap above the floor
FAQ
Frequently asked questions
Have not found your answer? Give the hole diameter and the thread – we will select the drain and the trap.
Ask a questionAre the KP-LK1 and KP-LK2 interchangeable in the same socket?
The documentation describes them identically apart from the shape, so they are treated as a pair of variants of one solution. Before swapping, though, it is worth measuring the opening, since the datasheet gives no diameters for them.
What connection does this funnel have?
The manufacturer does not state a thread or an end diameter. When choosing a hose or a fitting, a measurement taken in person or a photo of the part being replaced is needed.
Enquiry
We will quote Angled funnel KP-LK2 for your appliance
Give the hole diameter, the thread or the dimensions of the cabinet – we will reply with a selection and a quote.
B2B shopGet in touch
We usually reply within 24 working hours.
