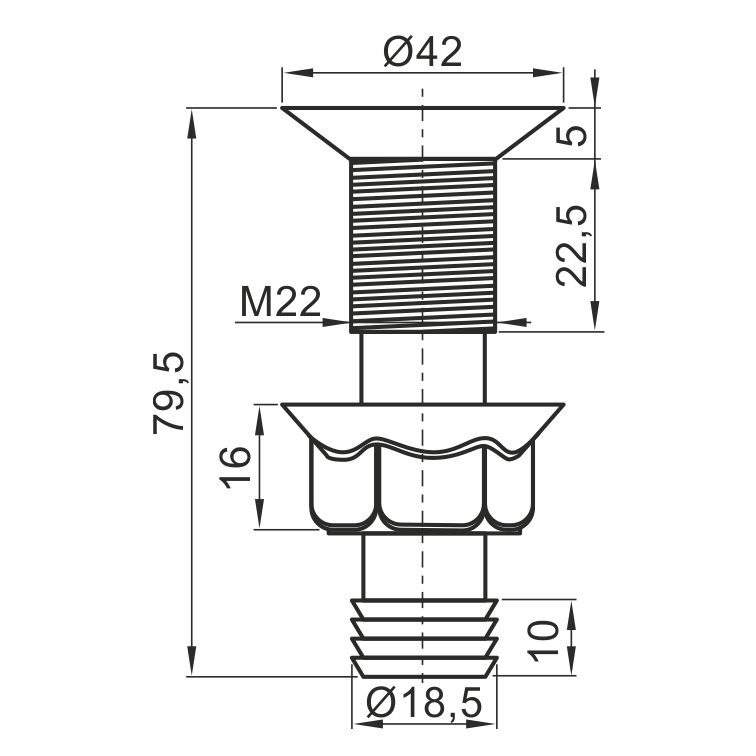

Technical drawing
Funnel · AiFO
Funnel KP-LA1
Item no. KP-LA1 · EAN 2010000043097
- made of PVC
- Material
- PVC
- Thread
- M22
- colour
- white
In brief
- An M22 thread - the smallest among the threaded funnels described in this group.
- A white PVC body, single-sided thread version.
- The direct counterpart to the KP-LA3, which has the same shape and an M24 thread.
- A single-sided thread means fixing from one side of the panel only.
Prices and stock levels are in the B2B shop. Honeycomb panels are cut to size, non-standard parts are quoted individually.
Funnel KP-LA1 – how to choose the right one
The KP-LA1 funnel is a white PVC part with an M22 thread, used to drain water from a refrigeration unit's pan. The thread is made in a single-sided version.
Twenty-two millimetres is the dimension that decides everything. If the opening in the base was made for M24, this funnel will sit loose in it - and a two-millimetre difference cannot be made up with a gasket.
The single-sided thread version assumes the nut is done up from one side of the sheet metal. Where fixing from both sides is needed, a separate code, the KP-LA2, is provided.
How to match a drain to the hole and a honeycomb to the cabinet – we explained it in the selection guide for this category.
Where it works
- Pans with a drain hole made for an M22 thread
- Refrigerated furniture with a small amount of water to drain
- Replacing a cracked funnel with an identical size
- Constructions where the panel is accessible from one side only
FAQ
Frequently asked questions
Have not found your answer? Give the hole diameter and the thread – we will select the drain and the trap.
Ask a questionWhat if the opening is 24 mm instead of 22?
Rather than fiddling with washers, reach for the KP-LA3 - the same construction, made for the larger thread. The manufacturer carries both sizes precisely so the opening never has to be reworked.
Will PVC withstand warm water from cleaning?
Yes, for periodic cleaning of the unit, since the water runs off and does not sit. The datasheet does limit this to the material alone, though - for constant contact with hot water, polypropylene parts are a safer bet.
Enquiry
We will quote Funnel KP-LA1 for your appliance
Give the hole diameter, the thread or the dimensions of the cabinet – we will reply with a selection and a quote.
B2B shopGet in touch
We usually reply within 24 working hours.
