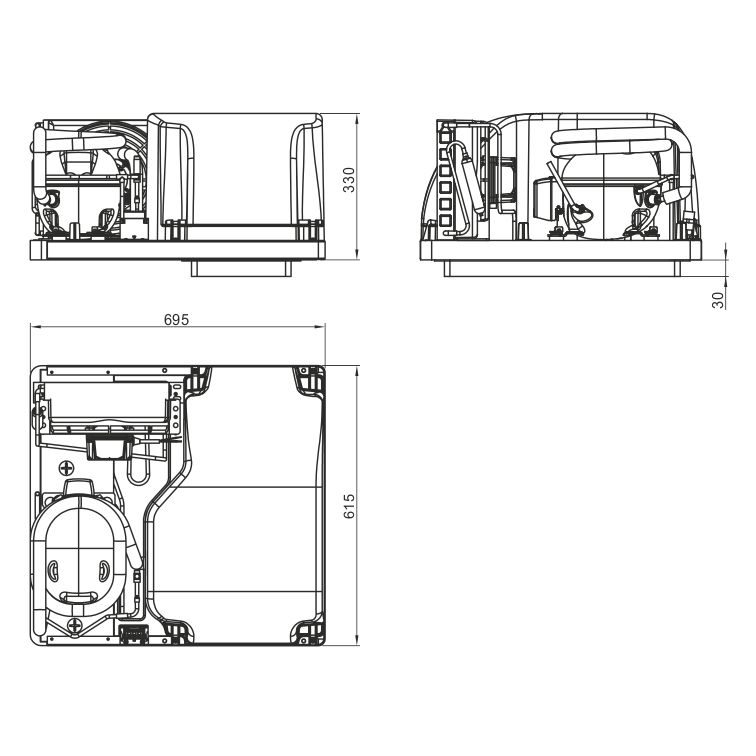

Technical drawing
Monoblock · AiFO
Monoblock for a freezer cabinet 700 MB-SZ-LBP-6NLV22/700G
Item no. MB-SZ-LBP-6NLV22 · EAN 2010000194560
- reduced installation, operating and after-sales costs
- fast and easy installation

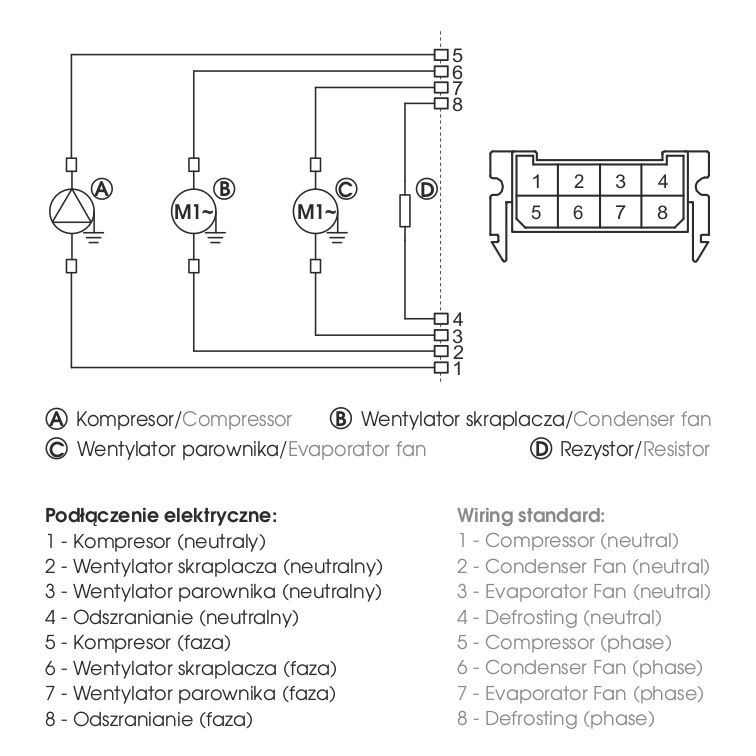

- ready-made electrical wiring
- evaporator built into the unit, so it takes up no space in the cold room
- automatic evaporation of condensate
- standardised appliance sizes
- construction made using the most modern food-safe materials
- ecological refrigerant gases R290
- forced ventilation
- Cooled volume of the chamber
- 700 l
- Operating temperature range
- -20°C / -15°C
- Power supply
- 230V-50Hz
- Capacity
- 383 W*
- Energy consumption
- 385 W*
- Refrigerant
- R290, 70 g
- Defrost
- hot gas
- Mounting hole
- 510 x 385 mm
- Cooled volume
- 700 l
- Operating temp. range
- -20°C / -15°C
In brief
- Freezer cabinet with a volume of 700 l, operating range –20°C / –15°C.
- Capacity of 383 W* at an energy consumption of 385 W* – the power drawn here marginally exceeds the declared output.
- R290 refrigerant, charge of 70 g, hot gas defrosting.
- Mounting aperture 510 x 385 mm, power supply 230V-50Hz.
Prices and stock levels are in the B2B shop. Selection for a specific cold room is handled on request.
Monoblock for a 700 freezer cabinet (-20°C / -15°C) MB-SZ-LBP-6NLV22/700G – how to choose the right one
MB-SZ-LBP-6NLV22/700G is the freezer version of the monoblock for a cabinet with a volume of 700 l, with a range of –20°C / –15°C. The manufacturer declares 383 W* of capacity, 385 W* of energy consumption, 70 g of R290 refrigerant and a 230V-50Hz power supply.
In freezing, the output delivered and the power drawn come close to each other, and at this index the second value is even slightly higher. These are the results of two different measurements, so they should not be subtracted from one another in search of an efficiency figure.
The shared 510 x 385 mm cut-out links this entry with the 1400 l versions. If the cabinet body stays the same and only the intended use of the furniture changes, replacing the module does not call for any work on the panel.
How to choose a monoblock for the volume and the mounting location – we explained it in the selection guide for this category.
Where it works
- Medium-sized freezer cabinets in catering
- A frozen goods store in free-standing furniture
- Shop back rooms with a small range of frozen goods
- Production of cabinets with a 510 x 385 mm cut-out in the panel
FAQ
Frequently asked questions
Have not found your answer? Give the volume and the temperature range – we will select the monoblock.
Ask a questionDoes the 700 l version have the same symbol as the 400 l version?
In the catalogue both are described as MB-SZ-LBP-6NLV22, and they are only distinguished by the capacity suffix: /400G or /700G. It is worth quoting the full designation when ordering.
How does it differ from the 1400 l freezer version?
In capacity and refrigerant charge: 383 W* and 70 g against 574 W* and 95 g. The mounting aperture, the operating range and the thawing method are the same in both cases.
Can a freezer cabinet be switched off overnight?
With frozen goods in store there is no point – cooling the chamber back down costs more than holding the temperature, and the product loses quality with every thaw.
