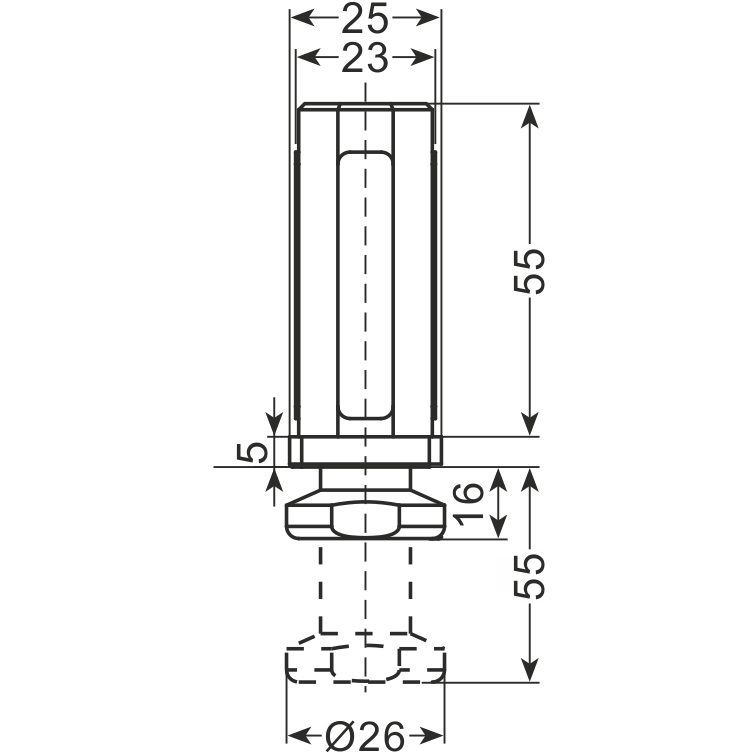

Technical drawing
Adjustable leg · AiFO
Adjustable leg SR-25RN black – 25x25 mm profile
Item no. SR-25RN · EAN 2010000137376
- made of black polyamide
- Colour
- black
- Material
- polyamide
- Profile size
- 25x25 mm
- Load* stated for 3 pcs
- 250 kg
- Height adjustment
- 21 - 60 mm
- Load (set of 3)
- 250 kg
In brief
- A polyamide leg for the smallest profile in this category – 25 × 25 mm.
- The catalogue figure of 250 kg for three pieces is the highest load rating you will find at this profile size.
- Adjustment of 21–60 mm gives 39 mm of travel, more than most plastic legs.
- Black version; the same model is also available in grey.
Prices and stock levels are in the B2B shop. Larger quantities and complete sets are quoted individually.
Adjustable leg (25x25 mm) SR-25RN black – how to choose the right one
SR-25RN is an adjustable leg in black polyamide, intended for a 25 × 25 mm square profile. It carries 250 kg in a set of three pieces, and the height is set within a range from 21 to 60 mm.
The combination of a small profile with such a wide adjustment travel is the most interesting thing here. Structures of 25 × 25 mm are usually built light, but they stand in the same rooms as heavy equipment – and there thirty-nine millimetres of headroom saves the situation when the floor falls away towards the drain.
Polyamide stands up well to washing and does not corrode, but it is a plastic – in constant contact with hot water and aggressive chemicals it performs worse than the stainless steel versions in the same family.
How to match the leg to the profile, the load and the unevenness of the floor – we explained it in the selection guide for this category.
Where it works
- Light frames and bases with a 25 × 25 mm profile
- Display furniture where a slim frame matters
- Auxiliary racking in back-of-house areas
- Structures needing a good deal of adjustment on a small profile
FAQ
Frequently asked questions
Have not found your answer? Give the profile, the load and the adjustment range – we will select the leg.
Ask a questionIs 250 kg a lot for a 25 × 25 mm profile?
In this group yes – the other legs for this size either have the same value or a far lower one, like the polystyrene SR-25x25PL with 60 kg. The limit is then the profile itself, not the leg.
How low can this leg be set?
To 21 mm. If the structure has to stand lower, you need a model with a shorter starting point – in 30 × 30 mm profiles that role is played by SR-3RN, with a range starting at 14 mm.
Enquiry
We will quote Adjustable leg (25x25 mm) SR-25RN black for your appliance
Give the profile size, the load and the adjustment range you need – we will reply with a selection and a quote.
B2B shopGet in touch
We usually reply within 24 working hours.
