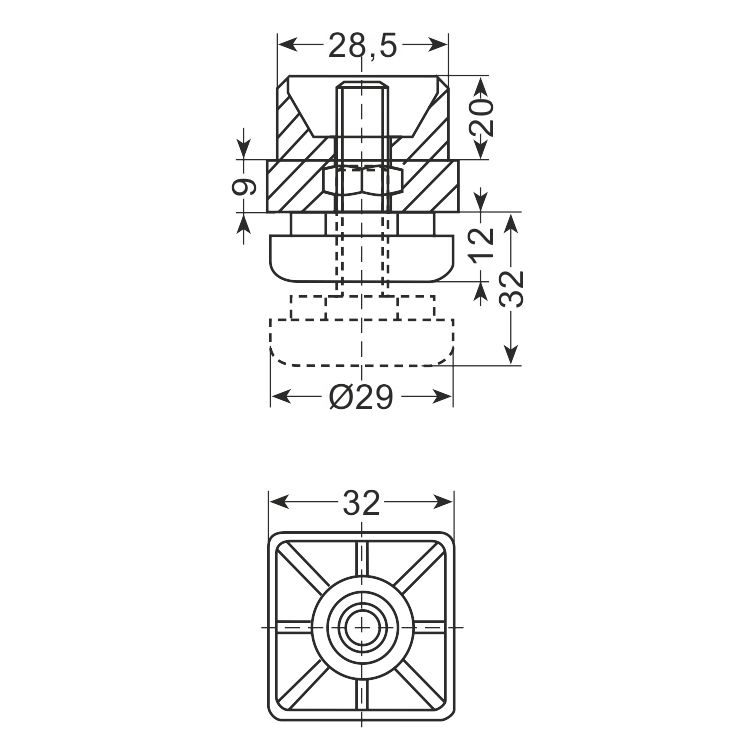

Technical drawing
Adjustable leg · AiFO
Adjustable leg SR-30x30PL black – 30x30 mm profile
Item no. SR-30x30PL · EAN 2010000050095
- made of black polystyrene
- Colour
- black
- Material
- polystyrene
- Profile size
- 30x30 mm
- Load* stated for 3 pcs
- 350 kg
- Height adjustment
- 21 - 41 mm
- Load (set of 3)
- 350 kg
In brief
- Polystyrene, 30 × 30 mm profile, load rating of 350 kg for three pieces.
- The adjustment travel is 21–41 mm, that is only 20 mm of headroom.
- The shortest adjustment range among the legs for this profile.
- Black.
Prices and stock levels are in the B2B shop. Larger quantities and complete sets are quoted individually.
Adjustable leg (30x30 mm) SR-30x30PL black – how to choose the right one
SR-30x30PL is an adjustable leg in black polystyrene for a 30 × 30 mm square profile. The manufacturer gives 350 kg for a set of three pieces and height adjustment from 21 to 41 mm.
The combination of these two figures is what stands out. The load rating is at a level typical of polyamide legs of this size, but the adjustment headroom is almost half as short as in SR-3RN. This is a solution for level floors, where the point is fine-tuning rather than compensating for a fall.
Before choosing, it is worth measuring the difference in level under the whole structure. If it exceeds two centimetres, this leg will not manage and a model with more travel has to be found.
How to match the leg to the profile, the load and the unevenness of the floor – we explained it in the selection guide for this category.
Where it works
- Furniture standing on screed or level tiling
- Installations where the target height is known from the design
- 30 × 30 mm structures with a moderate load
- Sales areas with a level floor
FAQ
Frequently asked questions
Have not found your answer? Give the profile, the load and the adjustment range – we will select the leg.
Ask a questionIs 20 mm of travel enough to level a piece of furniture?
On a level floor yes. With a fall towards a drainage grating – usually not, because the difference in height between the front and rear pairs of legs can exceed the whole range available.
How does polystyrene differ from polyamide in this model?
It is stiffer in bending but more brittle on impact. A leg standing quietly under a piece of furniture will not notice the difference; a leg regularly caught by a trolley will.
Enquiry
We will quote Adjustable leg (30x30 mm) SR-30x30PL black for your appliance
Give the profile size, the load and the adjustment range you need – we will reply with a selection and a quote.
