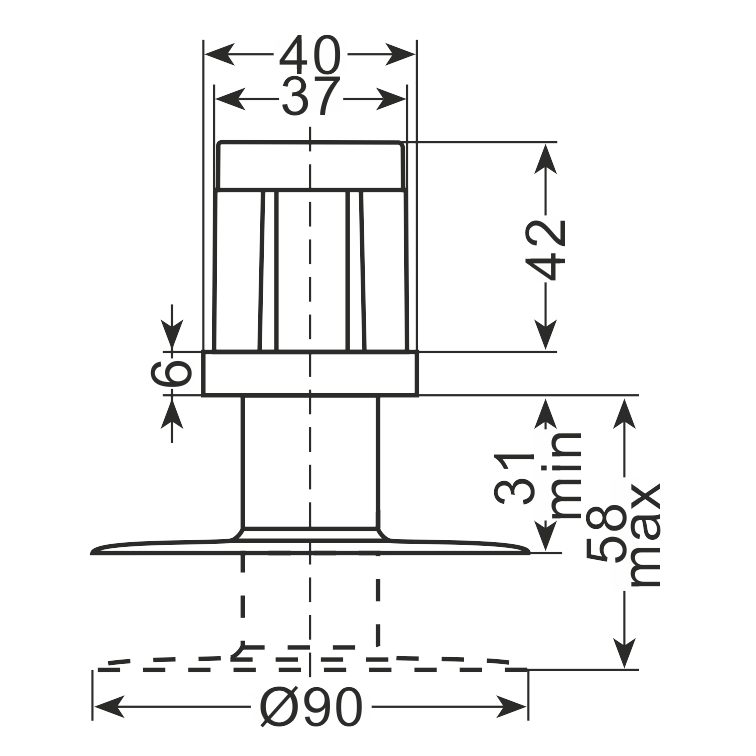

Technical drawing
Adjustable leg · AiFO
Adjustable leg SR-40x40FL – 40x40 mm profile
Item no. SR-40x40FL · EAN 2010000113097
- made of ZnAl alloy, adjustable part of stainless steel AISI-304
- Material
- ZnAl/stainless steel
- Profile size
- 40x40 mm
- Load* stated for 3 pcs
- 1000 kg
- Height adjustment
- 37 - 64 mm
- Load (set of 3)
- 1000 kg
In brief
- One thousand kilograms for a set of three pieces – the highest load rating in the whole category.
- A ZnAl alloy casting fitted with an adjustment stem in AISI-304 grade.
- 40 × 40 mm profile, height range 37–64 mm.
- Two and a half times the load rating of the other legs for the same profile.
Prices and stock levels are in the B2B shop. Larger quantities and complete sets are quoted individually.
Adjustable leg (40x40 mm) SR-40x40FL – how to choose the right one
SR-40x40FL is an adjustable leg for a 40 × 40 mm profile with a body in ZnAl alloy and a stem in AISI-304 stainless steel. The declared load for a set of three pieces is 1000 kg, and the height is set within a range of 37–64 mm.
This is the extreme entry in this line-up. The other legs for the 40 × 40 mm profile stop within a band of 350–500 kg, so the difference is not a matter of headroom but of a different class of application: machines, heavy work benches and appliances with a full load.
It is worth remembering that at such a load rating the leg stops being the limit and the structure and the floor become it. A point load of several hundred kilograms can leave a mark in flooring or in a soft screed.
How to match the leg to the profile, the load and the unevenness of the floor – we explained it in the selection guide for this category.
Where it works
- Machines and process equipment
- Heavy work benches and tool bases
- Tanks and appliances filled with water
- Structures designed with a large load margin
FAQ
Frequently asked questions
Have not found your answer? Give the profile, the load and the adjustment range – we will select the leg.
Ask a questionDoes the floor have to be taken into account at 1000 kg?
Definitely. At such a point load a soft screed, flooring or a panel may deform before any part of the leg does. In such cases spreader plates are used to distribute the pressure.
How does FL differ from the other 40 × 40 mm models?
Above all in load rating: 1000 kg against 400–500 kg in the NS and NT versions, with a similar adjustment range. The design is the strongest in this family.
Enquiry
We will quote Adjustable leg (40x40 mm) SR-40x40FL for your appliance
Give the profile size, the load and the adjustment range you need – we will reply with a selection and a quote.
B2B shopGet in touch
We usually reply within 24 working hours.
