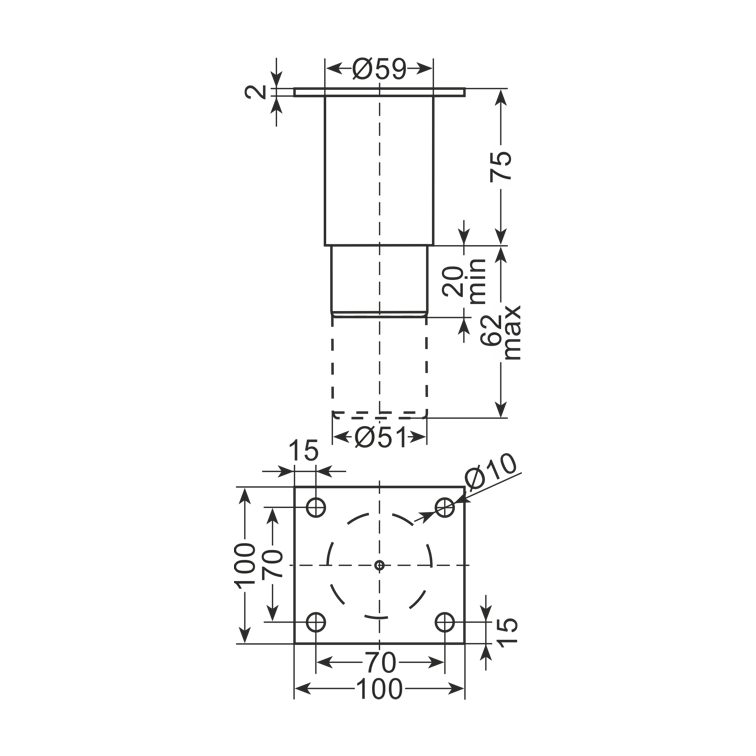

Technical drawing
Adjustable leg · AiFO
Screw-on adjustable leg SR-H-12R NB
Item no. SR-H-12R · EAN 2010000061046
- made of brushed stainless steel AISI-201
- Material
- stainless steel
- Load* stated for 3 pcs
- 900 kg
- Height adjustment
- 95 - 137 mm
- Load (set of 3)
- 900 kg
In brief
- The NB version lowers the range to 95–137 mm against 131–186 mm in the basic version.
- Load capacity unchanged: 900 kg for a set of three.
- Ground AISI-201 stainless steel, adjustment travel 42 mm.
Prices and stock levels are in the B2B shop. Larger quantities and complete sets are quoted individually.
Screw-on adjustable leg SR-H-12R NB – how to choose the right one
SR-H-12R NB is the low variety of the SR-H-12R leg: adjustment covers 95–137 mm, and a set of three still carries 900 kg. The material is ground AISI-201 stainless steel.
Dropping by close to four centimetres against the standard version opens up applications in which the appliance has to fit under a worktop or match the height of an existing process line. The load capacity stays the same, so nothing is lost by lowering it apart from the adjustment reserve, which shortens to 42 mm.
How to match the leg to the profile, the load and the unevenness of the floor – we explained it in the selection guide for this category.
Where it works
- Appliances slid under a work top
- Bases with a reduced installation height
- Installations added to a finished line
- Rooms with a low clearance under the hood
FAQ
Frequently asked questions
Have not found your answer? Give the profile, the load and the adjustment range – we will select the leg.
Ask a questionWhat does the NB suffix in the part number mean?
It marks the height variety within the SR-H-12R family. It indicates a version working lower – from 95 mm, while the base model only starts at 131 mm.
Is a lower leg more stable?
A shorter extension means a smaller arm for lateral forces, which can be noticeable with appliances pushed during cleaning. The load figure itself, however, does not change with height and amounts to 900 kg per set.
Enquiry
We will quote Screw-on adjustable leg SR-H-12R NB for your appliance
Give the profile size, the load and the adjustment range you need – we will reply with a selection and a quote.
