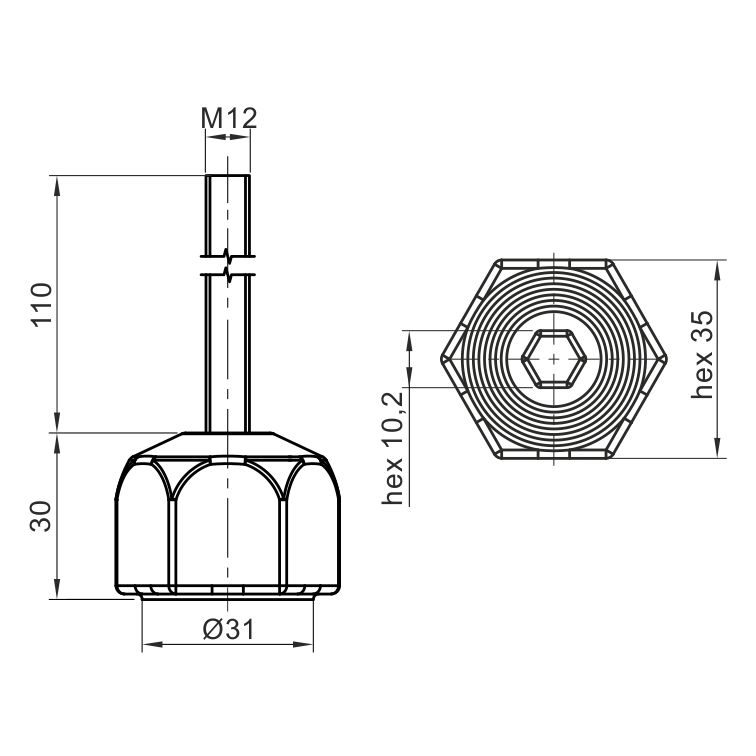

Technical drawing
Adjustable leg · AiFO
Adjustable leg with stainless thread SRW-MF-M12x110 INOX
Item no. SRW-MF-M12x110 · EAN 2010000205884
- feet made of high-density HDPE
- version INOX - thread made of stainless steel
- adjustment by Allen key on the foot as standard
- Colour
- black
- Material
- foot - HDPE
- Thread material
- stainless steel
- Thread size
- M12
- Thread length
- 110 mm
In brief
- M12 stem of stainless steel, 110 mm long.
- Foot of HDPE in black; adjustment with an Allen key carried out from the foot side.
- Other varieties are also available: OC with a galvanised thread and G with the adjustment moved to the thread.
Prices and stock levels are in the B2B shop. Larger quantities and complete sets are quoted individually.
Adjustable leg with a stainless steel thread (M12x110 mm) SRW-MF-M12x110 INOX – how to choose the right one
SRW-MF-M12x110 INOX is a leg with an M12 stainless steel stem 110 mm long and a foot of high-density polyethylene. In the standard version it is adjusted with an Allen key from the foot side, that is from the bottom of the appliance.
A hundred and ten millimetres of thread intends this model for structures raised high above the floor – for example where clearance has to be left under the appliance for washing the floor, or where the frame has to be lifted above a plinth.
Besides the INOX version, the family covers two varieties: OC with a stem of galvanised steel and G, in which the Allen key enters from the thread side. The variety is indicated in the order, because only the suffix in the part number distinguishes them.
How to match the leg to the profile, the load and the unevenness of the floor – we explained it in the selection guide for this category.
Where it works
- Appliances lifted high above the floor, with clearance for cleaning
- Frames with an M12 socket set deep in the structure
- Wet zones in which the stem has to be stainless
- Installations with access to the foot from below, without the need for adjustment from above
FAQ
Frequently asked questions
Have not found your answer? Give the profile, the load and the adjustment range – we will select the leg.
Ask a questionWhen should M12x110 be chosen instead of a shorter stem?
When the structure is to stand distinctly above the floor, or when the socket is deep and takes up a large part of the length. On low bases the excess thread only protrudes above the frame.
Can adjustment from above be specified for this model?
Yes, the G variety from the same family serves that purpose. The version described on this card has Allen key adjustment at the foot, which is enough wherever it is possible to reach under the appliance.
