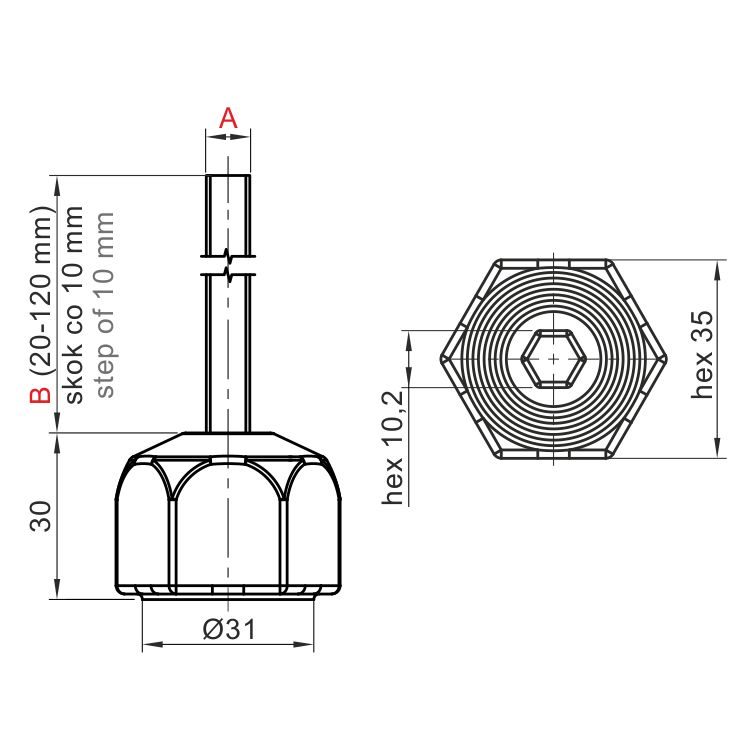

Technical drawing
Adjustable leg · AiFO
Adjustable leg with galvanised steel thread SRW-MF_OC
Item no. SRW-MF · EAN 2010000208816
- feet made of high-density HDPE
- version OC - thread made of galvanised steel
- adjustment by Allen key on the foot as standard
Models SRW-MF_OC
- SRW-MF-M10x120 OC
- SRW-MF-M10x30 OC
- SRW-MF-M10x40 OC
- SRW-MF-M10x60 OC
- SRW-MF-M10x70 OC
- SRW-MF-M12x120 OC
- SRW-MF-M12x30 OC
- SRW-MF-M12x60 OC
- SRW-MF-M16x50 OC
- SRW-MF-M6x40 OC
- SRW-MF-M8x120 OC
Available models and sizes as currently listed in the B2B shop. Non-standard versions are made to order.
In brief
- The OC version of the SRW-MF family: stem of galvanised steel, foot of HDPE.
- A collective item – it covers several thread sizes and stem lengths.
- Allen key adjustment from the foot side as standard.
- The family also covers the G variety with adjustment on the thread and INOX with a stainless steel stem.
Prices and stock levels are in the B2B shop. Larger quantities and complete sets are quoted individually.
Adjustable leg with a galvanised steel thread – various models SRW-MF_OC – how to choose the right one
SRW-MF_OC is a collective catalogue item covering legs from the SRW-MF family in the galvanised version, with a foot of high-density polyethylene. The specific thread size and stem length are chosen from among the available variants.
The letters in the part number distinguish versions within one construction: OC indicates a galvanised stem, INOX a stainless one, and G denotes an additional Allen key socket on the thread. The construction of the foot stays the same across all varieties.
Because the item covers many sizes, an order requires the thread size and the stem length to be given. Without those two figures the SRW-MF_OC part number does not yet indicate a specific product.
How to match the leg to the profile, the load and the unevenness of the floor – we explained it in the selection guide for this category.
Where it works
- Dry installations in which galvanising is enough and lowers the cost of the set
- Projects covering several thread sizes within one family
- Structures with access to the foot, without the need for adjustment from above
- Replacing worn legs with counterparts from the same series
FAQ
Frequently asked questions
Have not found your answer? Give the profile, the load and the adjustment range – we will select the leg.
Ask a questionWhat data should be given to select the right variant?
The thread size and its length – those two figures are enough to indicate a model from this item. It also helps to know whether adjustment is to be available from above, because that settles the choice of the G variety.
Do the galvanised and the stainless versions differ in dimensions?
No, the difference concerns the material of the stem. The foot, the method of adjustment and the thread size itself remain the same, so the varieties are mutually interchangeable within the same construction.
Enquiry
We will quote Adjustable leg with a galvanised steel thread – various models SRW-MF_OC for your appliance
Give the profile size, the load and the adjustment range you need – we will reply with a selection and a quote.
