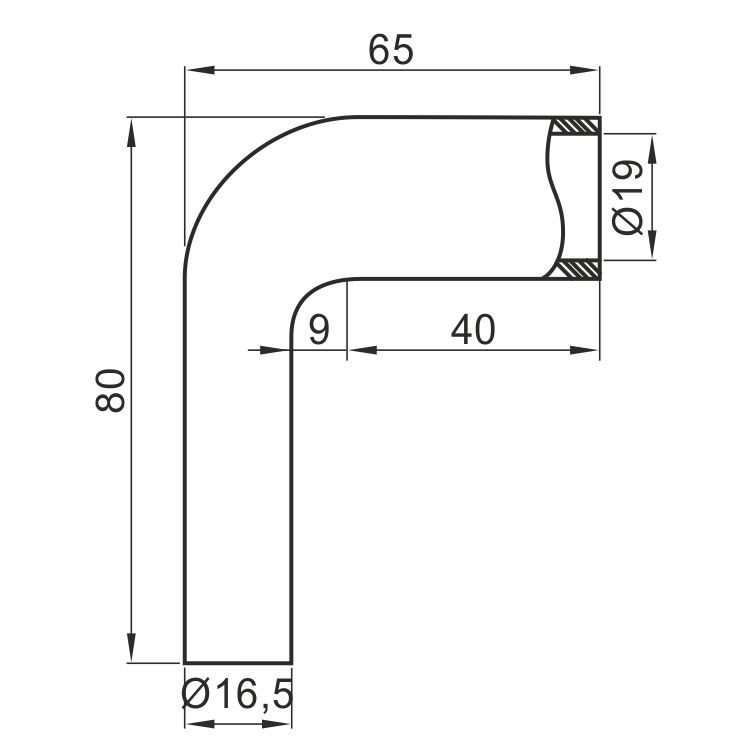

Technical drawing
Condensate drain · AiFO
Angled drain KP-CC-CL
Item no. KP-CC-CL · EAN 2010000047859
- made of black rubber
- Material
- rubber / hardened rubber
In brief
- A rubber elbow matched to drains marked with the codes CC and CL.
- Material: black rubber, hardened version.
- The flexible body forgives small misalignment in the connection's axis.
- The datasheet gives no thread or diameter for this code.
Prices and stock levels are in the B2B shop. Honeycomb panels are cut to size, non-standard parts are quoted individually.
Angled drain KP-CC-CL – how to choose the right one
The KP-CC-CL is an angled drain made of black, hardened rubber, designed to work with drains from the KP-CC and KP-CL families in refrigeration units.
Rubber behaves differently here from a rigid plastic elbow. The slightly deformable body accepts the pipe even when it does not line up perfectly, and there is no risk of cracking from overstretching during fitting.
The code itself combines the designations of two straight drains, but the documentation does not specify connection dimensions. For a replacement order it is safer to name the unit's model than to rely on the code alone.
How to match a drain to the hole and a honeycomb to the cabinet – we explained it in the selection guide for this category.
Where it works
- KP-CC and KP-CL drains needing to run off sideways
- Fit-outs with little clearance between the base and the floor
- Spots where the pipe does not line up on the same axis as the stub
- Repairs after a hard-plastic elbow has cracked
FAQ
Frequently asked questions
Have not found your answer? Give the hole diameter and the thread – we will select the drain and the trap.
Ask a questionRubber or plastic - which lasts longer in an elbow?
Plastic holds its shape for years but cracks under stress during fitting. Rubber works with the construction and forgives alignment errors, but it hardens over time and needs checking at inspections.
Which drains exactly does this part fit?
The code points to the KP-CC and KP-CL families, but the manufacturer does not give a list of codes or dimensions. Before ordering, please tell us which drain is already fitted in the unit.
Enquiry
We will quote Angled drain KP-CC-CL for your appliance
Give the hole diameter, the thread or the dimensions of the cabinet – we will reply with a selection and a quote.
