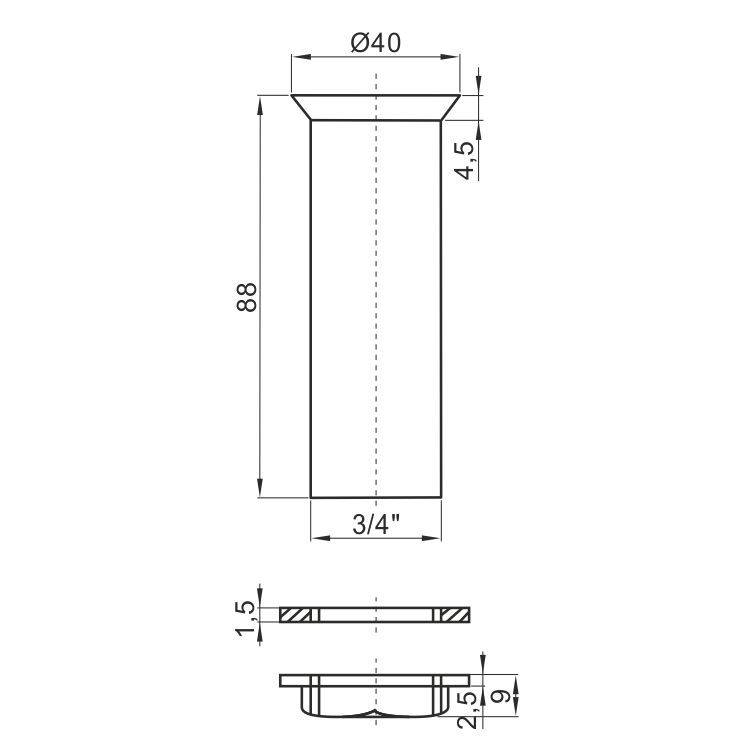

Technical drawing
Condensate drain · AiFO
Drain KP-M
Item no. KP-M · EAN 2010000048085
- drain and nut made of nylon
- gasket made of black rubber
- Material
- nylon
- Thread
- 3/4"
- colour
- white
In brief
- 3/4" thread – a bore 50% larger than in the models from the CC family.
- White nylon with a black rubber gasket; the nut is made of the same plastic.
- Selected for appliances that drain more water from defrosting.
- The angled variant of this family is KP-M-ML, complemented with a plug.
Prices and stock levels are in the B2B shop. Honeycomb panels are cut to size, non-standard parts are quoted individually.
Drain KP-M – how to choose the right one
KP-M is a drain made of white nylon with a 3/4" thread, supplied together with a nut and a rubber seal. It collects water from the basin of a refrigeration unit.
Three-quarters of an inch is an intermediate size in this range: larger than the half-inch nylon drains, smaller than the polypropylene KP-CC-32 family and larger sizes. It works well in units with a regular defrost cycle, where water comes down in bursts rather than drops.
The white body is sometimes chosen deliberately: in a light-coloured plastic basin the part does not stand out, while any dirt on it that needs removing during cleaning is still easy to spot.
How to match a drain to the hole and a honeycomb to the cabinet – we explained it in the selection guide for this category.
Where it works
- Appliances with cyclic evaporator defrosting
- Basins made of light-coloured plastic or stainless steel sheet
- Installations prepared for a three-quarter-inch connection
- Enclosures designed to allow a later addition of the KP-M-ML elbow
FAQ
Frequently asked questions
Have not found your answer? Give the hole diameter and the thread – we will select the drain and the trap.
Ask a questionWhen is half an inch not enough?
When water from the run-off cannot drain away fast enough and rises in the basin after every defrost. Switching to three-quarters of an inch is then simpler than changing the whole drainage geometry.
Does this drain differ in any way from KP-ML?
The documentation describes both identically – the same nylon, the same colour, the same thread. Only the part numbers are separate, so when ordering a replacement part you need to stick to the symbol from the appliance.
