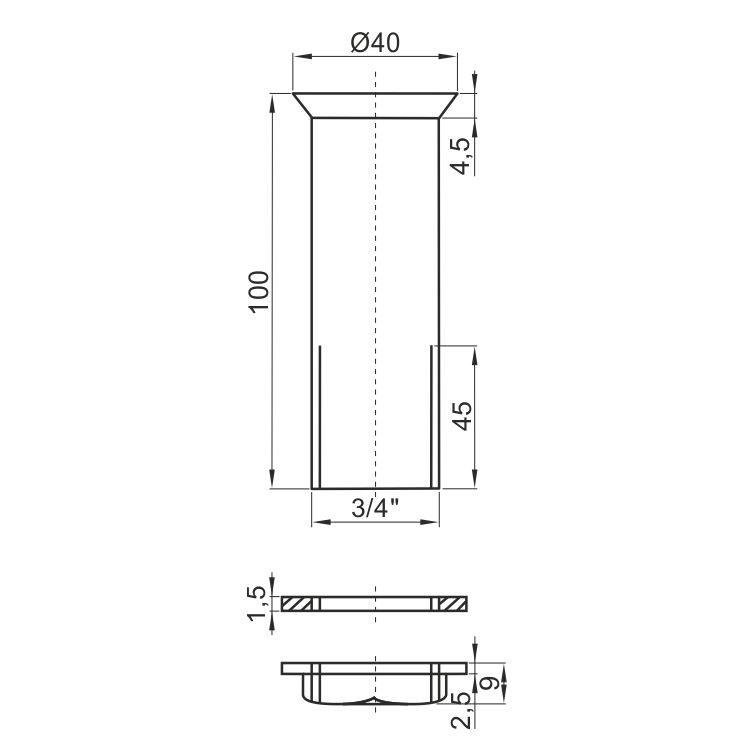

Technical drawing
Condensate drain · AiFO
Drain KP-ML
Item no. KP-ML · EAN 2010000048108
- drain and nut made of nylon
- gasket made of black rubber
- Material
- nylon
- Thread
- 3/4"
- colour
- white
In brief
- A white nylon drain for a 3/4" thread, with a rubber seal included.
- The catalogue sheet does not differentiate it from the KP-M model.
- The assigned elbow KP-M-ML serves both of these part numbers.
- The nut is made of the same plastic as the body.
Prices and stock levels are in the B2B shop. Honeycomb panels are cut to size, non-standard parts are quoted individually.
Drain KP-ML – how to choose the right one
KP-ML is a drain made of white nylon, with a 3/4" thread, a black rubber gasket and a nylon nut. It is used in the basins of refrigeration units.
The symbol also appears in the name of the angled drain KP-M-ML and indirectly in the plug KP-M-MLP. This is the best clue when selecting accessories: all three are described as working together.
The part itself does not differ in its data from KP-M. We treat them as two versions of one solution, and base the decision on the marking that is actually fitted in the appliance.
How to match a drain to the hole and a honeycomb to the cabinet – we explained it in the selection guide for this category.
Where it works
- Servicing of appliances marked in the documentation with this symbol
- Drainage runs built together with an elbow and a plug from the same family
- Connections threaded to three-quarters of an inch
- Refrigeration units with a light-coloured basin interior
FAQ
Frequently asked questions
Have not found your answer? Give the hole diameter and the thread – we will select the drain and the trap.
Ask a questionHow do you put together the whole drainage run in this family?
The basis is this drain, the elbow KP-M-ML changes the direction, and the plug KP-M-MLP gives the option of closing it off. Each of these part numbers is ordered separately, as they do not form a factory set.
Is the rubber gasket replaceable?
The manufacturer does not carry it as a separate item, so when it wears out the whole drain is replaced. That is why it is worth avoiding over-tightening the nut – it is the most common cause of seal damage.
