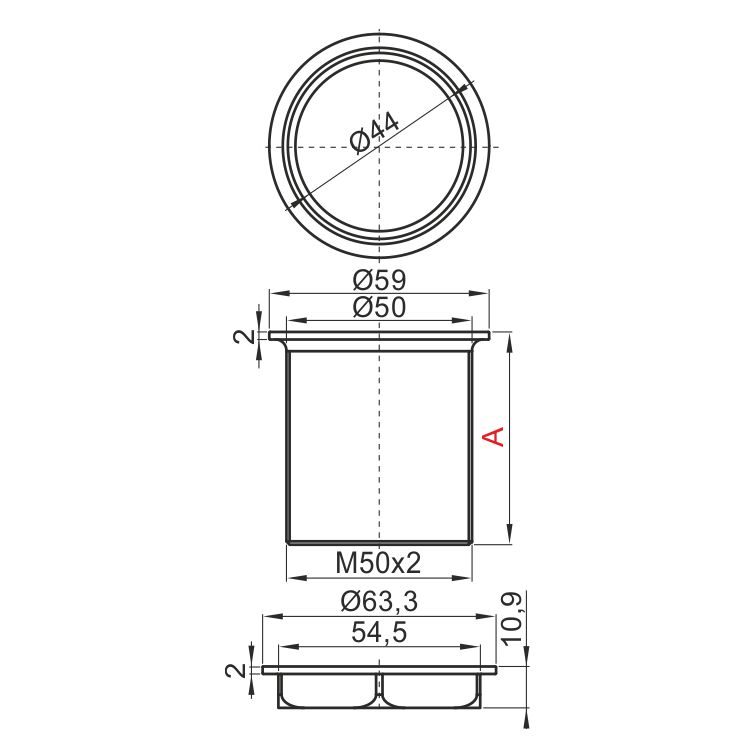

Technical drawing
Condensate drain · AiFO
Drain – various models KP-CC-50
Item no. KP-CC-50 · EAN 2010000202388
- made of grey polypropylene
- nut made of ABS
- thread M50x2
Models KP-CC-50
- KP-CC-50x150
- KP-CC-50x50
- KP-CC-50x70
- KP-CC-50x80
- KP-CC-50x90
Available models and sizes as currently listed in the B2B shop. Non-standard versions are made to order.
In brief
- The only drain in this family with a metric thread: M50x2.
- The other KP-CC sizes are described with imperial threads; this one breaks away from the ladder.
- Body of grey polypropylene, nut of ABS.
- A collective item covering several versions with the same thread.
Prices and stock levels are in the B2B shop. Honeycomb panels are cut to size, non-standard parts are quoted individually.
Drain – various models KP-CC-50 – how to choose the right one
KP-CC-50 is a drain made of grey polypropylene with an ABS nut and an M50x2 thread, carried as a group of models under a shared designation. It works in the basins of refrigeration units.
The metric thread is the most important piece of information for this part number. A 2 mm pitch on a 50 mm diameter means the part will not screw into a socket prepared for one and a quarter inches or for two inches – even though dimensionally it falls exactly between them.
In practice this means one thing: before ordering a replacement, check on the old part whether the thread is imperial or metric. A mistake at this stage ends with a part that cannot be fitted.
How to match a drain to the hole and a honeycomb to the cabinet – we explained it in the selection guide for this category.
Where it works
- Appliances with a factory socket threaded metrically
- Drainage runs with a high flow rate, between one and a quarter inches and two inches
- Replacing the drain in constructions with a non-standard connection
- Units manufactured with metric-thread parts
FAQ
Frequently asked questions
Have not found your answer? Give the hole diameter and the thread – we will select the drain and the trap.
Ask a questionWill M50x2 replace a 2-inch thread?
No. The diameters are similar, but the pitch and thread profile are different, so the connection cannot be screwed together. A separate model, KP-CC-63, is provided for the two-inch connection.
How do you identify a metric thread without callipers?
The simplest way is to try a known nut: a metric one will go on smoothly, an imperial one will bind after the first turn. If you have the old part, a photo of the thread with a ruler against the edge is usually also enough to confirm it.
