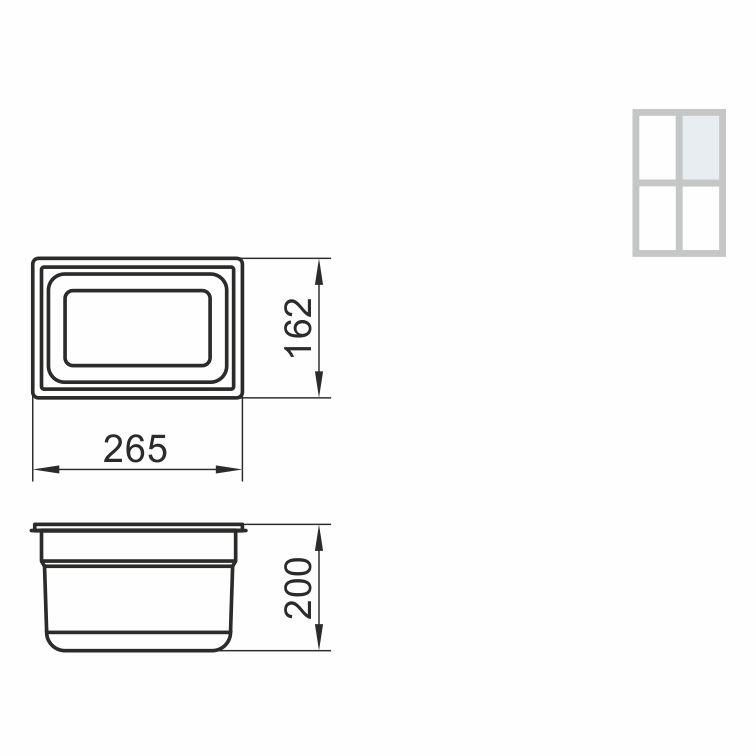

Technical drawing
GN container · AiFO
Gastronorm container 265x162x200 mm (stainless steel) KZ-GN1420
Item no. KZ-GN1420 · EAN 2010000064672
- made of acid-resistant steel AISI-304 with a sheet thickness of 0.8 mm
- version S also available - made of stainless steel with a sheet thickness of 0.6 mm
- an optimal solution for storing and transporting food
- can be used in convection ovens, refrigerators, bain-maries and heated cabinets
- Material
- AISI-304 acid-resistant steel
- GN size
- GN 1/4
- Version
- rectangular
- Height [mm]
- 200 mm
- Capacity
- 5,5 l
- Dimensions [mm]
- 265x162 mm
- Height
- 200 mm
- Dimensions
- 265x162 mm
In brief
- The KZ-GN1420 is the deepest GN 1/4 variant: a 265 x 162 mm footprint with a 200 mm wall.
- A 5.5 l capacity is nearly double the same footprint in the 100 mm version.
- A full container weighs over five kilograms, so it is carried with both hands.
- Stainless steel keeps the wall rigid even with a full liquid load.
Prices and stock levels are in the B2B shop. When fitting out a whole back-of-house we quote the complete set.
Gastronorm container 265x162x200 mm (stainless steel) KZ-GN1420 – how to choose the right one
The KZ-GN1420 Gastronorm container is in GN 1/4 format, measuring 265 x 162 mm, with a 200 mm depth, giving 5.5 l. This is the maximum capacity achievable on a quarter of a GN 1/1 well without going beyond the standard.
A reserve like this in one container makes sense where serving runs continuously and there is no time to top up the station. Five and a half litres usually covers a whole shift, so the cook does not leave the line to fetch another insert.
The price for this convenience is thermal inertia. A load of this volume takes a long time to reach temperature and just as long to lose it, so it is filled with a hot product and, when cooling, transferred to shallower containers.
What the GN sizes mean and how to choose the depth – we explained it in the selection guide for this category.
Where it works
- Continuous serving in canteens and mass catering points
- A shift's worth of sauce or stock reserve
- Deep refrigerated wells fitted for 200 mm containers
- Transporting a liquid load by heated trolley over longer distances
FAQ
Frequently asked questions
Have not found your answer? Give the GN size and the intended use – we will select the containers.
Ask a questionWill a container like this fit in any bain-marie?
No. A 200 mm depth needs a well designed for tall containers - in a shallow appliance, the container will not settle on the collar, or will rest against the bottom.
How should the contents be cooled after service?
It is best to transfer them into shallower containers. Five litres in a tall container cools slowly enough that the product stays too long within the temperature range that should be avoided.
Will the lid from the 100 mm version fit?
Yes, since the collar has the same 265 x 162 mm dimensions. A lid is matched to the GN size, regardless of how deep the body underneath it is.
Enquiry
We will quote Gastronorm container 265x162x200 mm (stainless steel) KZ-GN1420 for your appliance
Give the GN size, the depth and the material – we will reply with a selection and a quote.
B2B shopGet in touch
We usually reply within 24 working hours.
