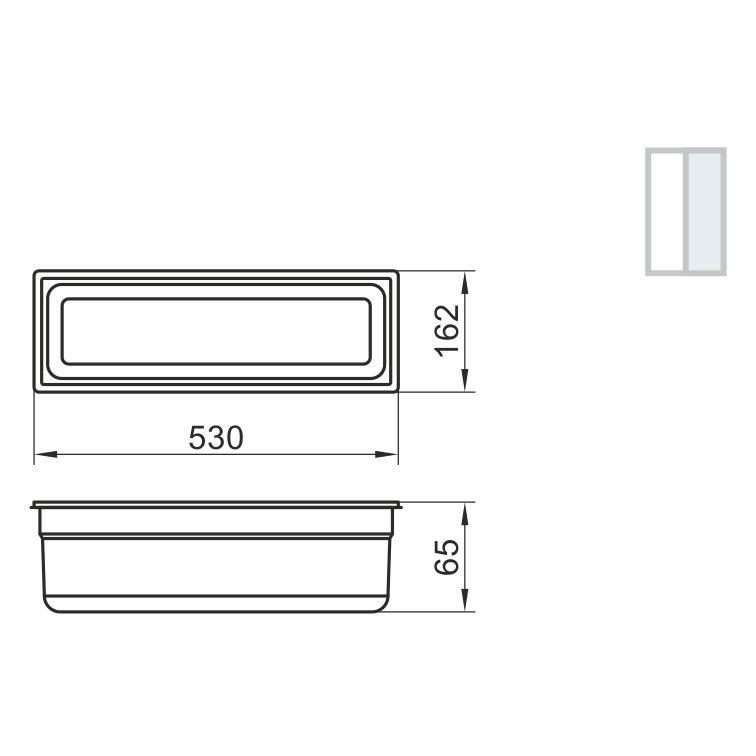

Technical drawing
GN container · AiFO
Gastronorm container 530x162x65 mm (stainless steel) KZ-GN24065
Item no. KZ-GN24065 · EAN 2010000064887
- made of acid-resistant steel AISI-304 with a sheet thickness of 0.8 mm
- version S also available - made of stainless steel with a sheet thickness of 0.6 mm
- an optimal solution for storing and transporting food
- can be used in convection ovens, refrigerators, bain-maries and heated cabinets
- Material
- AISI-304 acid-resistant steel
- GN size
- GN 2/4
- Version
- rectangular
- Height [mm]
- 65 mm
- Capacity
- 4,0 l
- Dimensions [mm]
- 530x162 mm
- Height
- 65 mm
- Dimensions
- 530x162 mm
In brief
- KZ-GN24065 is a GN 2/4 measuring 530 × 162 mm and 65 mm deep.
- A capacity of 4.0 l places this variant right in the middle of the 2/4 range, between 2.4 and 6.0 l.
- Sixty-five millimetres is the most common container depth found on a service line.
- Stainless steel, footprint matching GN runners and wells.
Prices and stock levels are in the B2B shop. When fitting out a whole back-of-house we quote the complete set.
Gastronorm container 530x162x65 mm (stainless steel) KZ-GN24065 – how to choose the right one
The KZ-GN24065 gastronorm container has a GN 2/4 footprint of 530 × 162 mm, a depth of 65 mm and a capacity of 4.0 litres. This is the most universal height in this narrow format.
Sixty-five millimetres has become the default well depth on the line, since it holds portions in sauce while not leaving product sitting at the bottom for a whole service. In the 2/4 format this gives 4.0 l, a reasonable amount for one top-up.
Since this depth recurs across all GN sizes, 2/4 containers at 65 mm are easy to combine with 1/3 or 1/6 in one line. The edges line up, and swapping one container does not force the neighbours to be rearranged.
What the GN sizes mean and how to choose the depth – we explained it in the selection guide for this category.
Where it works
- Servery lines and bain-maries where 65 mm is the standard depth
- Dishes in sauce portioned with a ladle in front of the guest
- Mixed line-ups with 1/3 and 1/6 containers at the same height
- Banqueting warmers with a GN 1/1 field split into two items
FAQ
Frequently asked questions
Have not found your answer? Give the GN size and the intended use – we will select the containers.
Ask a questionWhy does exactly 65 mm recur in every GN size?
It is a height worked out for service equipment: it holds a portion in sauce and matches the typical depth of bain-marie wells. Thanks to it, containers of different sizes line up evenly in one row.
Is 4.0 l enough for a service?
It depends on the menu item and the pace of service. The 2/4 format is designed to serve a topping or a second item in the well, so it is topped up more often than a 1/1 container.
Can the same container be put into a refrigerated cabinet?
Yes, as long as the cabinet has GN runners, the footprint is identical to that in a bain-marie. That is the main advantage of the standard: the product does not change container between the cold room and service.
Enquiry
We will quote Gastronorm container 530x162x65 mm (stainless steel) KZ-GN24065 for your appliance
Give the GN size, the depth and the material – we will reply with a selection and a quote.
B2B shopGet in touch
We usually reply within 24 working hours.
