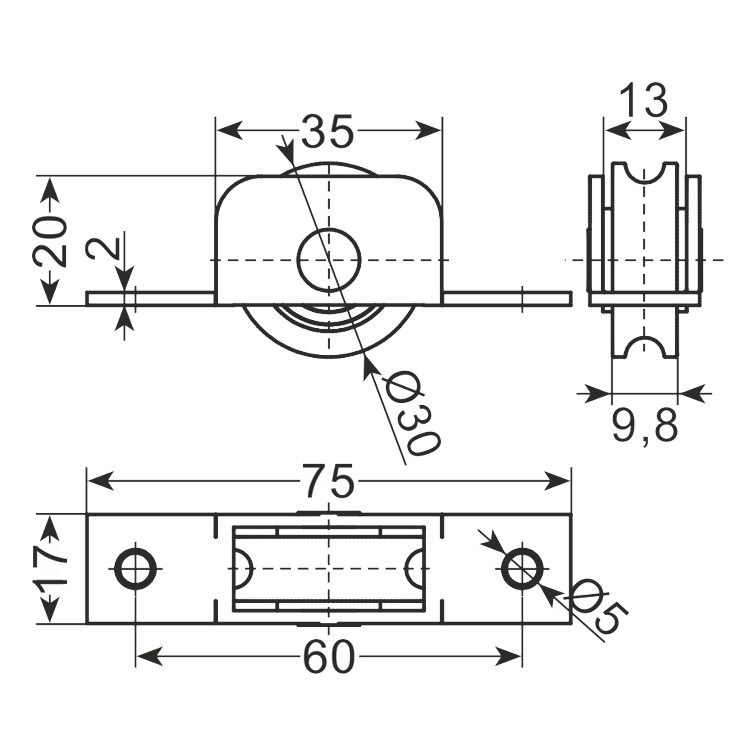

Technical drawing
Roller · AiFO
Sliding door roller (polyamide/galvanised) KP-AC-3528
Item no. KP-AC-3528 · EAN 2010000057735
- made of galvanised steel, polyamide wheel
- Housing material
- galvanised
- Wheel material
- polyamide
- Wheel diameter [mm]
- fi30 mm
- Wheel diameter
- Ø30 mm
In brief
- KP-AC-3528 is a Ø30 mm roller with a polyamide wheel and a galvanised housing.
- It forms a pair with item KP-AC-3529, which has the same catalogue data.
- Application: sliding doors of furniture and equipment.
- The manufacturer's description does not distinguish the two items numerically.
Prices and stock levels are in the B2B shop. Sets for a specific appliance are put together to order.
Sliding door roller (polyamide/galvanised) KP-AC-3528 – how to choose the right one
KP-AC-3528 is a sliding door roller with a polyamide wheel 30 mm in diameter set in a galvanised housing. In the catalogue it appears alongside its twin KP-AC-3529.
With two items carrying identical data, the safest selection method is to read the marking off the roller that is to be replaced. The code is sometimes stamped on the housing or becomes visible once it is taken out of the profile.
Where there is no code, comparing the mounting geometry is what remains. It is worth photographing the roller from the mounting side – it is that side, not the tread, that decides compatibility.
How to choose a castor for the load and the floor – we explained it in the selection guide for this category.
Where it works
- Servicing units in which rollers have already been replaced before
- Sliding leaves of high mass
- Completing a set when some of the rollers are still serviceable
- Spare parts stock for refrigerated display cases
FAQ
Frequently asked questions
Have not found your answer? Give the weight of the appliance and the type of floor – we will select the wheel set.
Ask a questionHow can the two rollers be told apart on delivery?
By the marking on the packaging and on the part itself. If you order both at once, it is worth separating and labelling them straight away, because they look very similar.
Is it possible to order a set for a specific unit?
Yes, give us the manufacturer and model of the appliance or send a photo of the removed roller. We will select the set and confirm availability before dispatch.
Enquiry
We will quote Sliding door roller (polyamide/galvanised) KP-AC-3528 for your appliance
Give the weight of the appliance, the type of floor and the mounting method – we will reply with a selection and a quote.
B2B shopGet in touch
We usually reply within 24 working hours.
