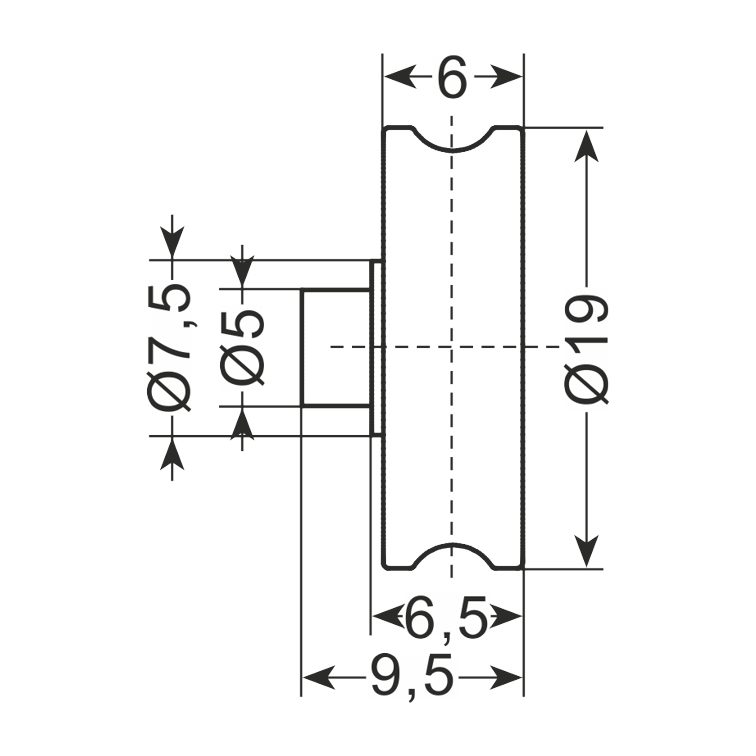

Technical drawing
Roller · AiFO
Roller Ø19 mm (polyamide/galvanised/ball bearing) KP-AC-2583
Item no. KP-AC-2583 · EAN 2010000054659
- made of galvanised steel, polyamide wheel
- ball bearing
- Housing material
- galvanised
- Wheel material
- polyamide
- Wheel diameter [mm]
- fi19 mm
- Wheel diameter
- Ø19 mm
In brief
- KP-AC-2583 is a Ø19 mm roller with a ball bearing, a polyamide wheel and a galvanised housing.
- It forms a pair with item KP-AC-2582, which has the same technical description.
- This size appears in the range in three design variants.
- The manufacturer declares no load rating for this item.
Prices and stock levels are in the B2B shop. Sets for a specific appliance are put together to order.
Roller Ø19 mm (polyamide/galvanised/ball bearing) KP-AC-2583 – how to choose the right one
The KP-AC-2583 roller has a polyamide wheel 19 mm in diameter, a galvanised housing and a ball bearing. It is the counterpart of item KP-AC-2582 with the same parameters.
In the 19 mm size the range offers three different designs: a bush-mounted roller with an O-ring and two bearing-mounted versions. This is a rare case in which the choice is decided not by the size but by the way the fitting works.
For a stock order it is worth settling on one version and sticking to it. Mixing designs within the same unit makes the leaves run with different resistance, and staff take this for a fault.
How to choose a castor for the load and the floor – we explained it in the selection guide for this category.
Where it works
- Completing a set of bearing-mounted rollers in a unit
- Servicing fittings in display cases with a tight guide rail profile
- Warehouse stock for chains with many outlets
- Replacement after the previous roller has seized
FAQ
Frequently asked questions
Have not found your answer? Give the weight of the appliance and the type of floor – we will select the wheel set.
Ask a questionWhich of the three Ø19 mm rollers should be chosen?
For quiet running – the version with the rubber ring; for intensive movement – one of the bearing-mounted ones. When replacing, the simplest course is to reproduce what was fitted at the factory.
Are bearing-mounted rollers noisier?
Not in themselves, but hard plastic on a hard rail transmits more sound than a tread with a flexible layer. The difference is only audible in a quiet room.
