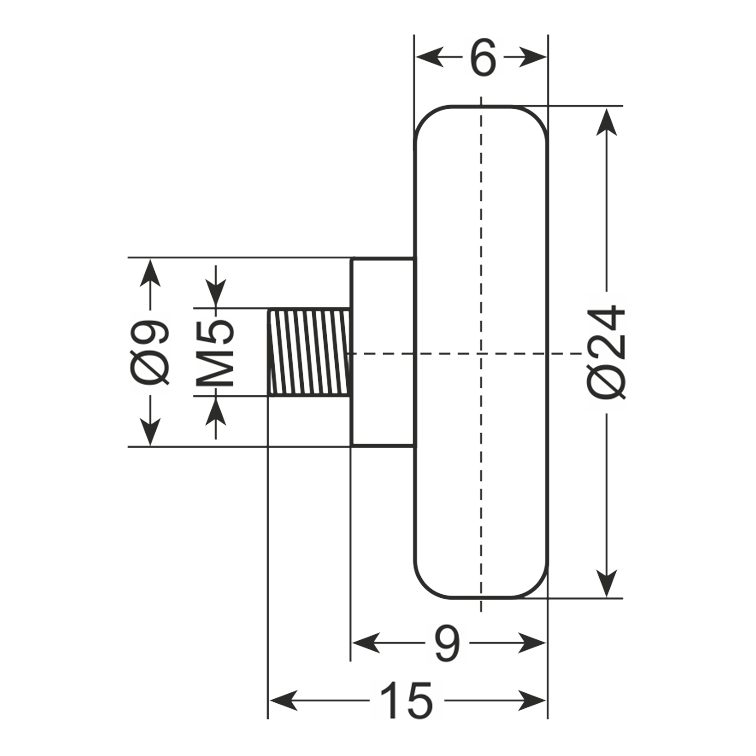

Technical drawing
Roller · AiFO
Roller Ø24 mm (polyamide/galvanised/ball bearing) KP-AC-2580
Item no. KP-AC-2580 · EAN 2010000054635
- made of galvanised steel, polyamide wheel
- ball bearing
- Housing material
- galvanised
- Wheel material
- polyamide
- Wheel diameter [mm]
- fi24 mm
- Wheel diameter
- Ø24 mm
In brief
- A Ø24 mm roller with a ball bearing, a polyamide wheel and a galvanised housing.
- In this diameter it is the only item with a ball bearing.
- The alternative of the same size is a roller on a stainless bush.
- The load is not given in the catalogue data sheet.
Prices and stock levels are in the B2B shop. Sets for a specific appliance are put together to order.
Roller Ø24 mm (polyamide/galvanised/ball bearing) KP-AC-2580 – how to choose the right one
KP-AC-2580 is a roller 24 mm in diameter with a polyamide wheel, a galvanised housing and a ball bearing. In this size it is the version with the lowest rolling resistance in the range.
The choice in this diameter comes down to one question: whether light running or the moisture resistance of the body matters more. The bearing gives the first, the stainless bush of the neighbouring item – the second.
In practice the installation location decides. A rail in the dining room, dry and regularly wiped, argues for the bearing; a profile in a cold room with water standing in it permanently argues against it.
How to choose a castor for the load and the floor – we explained it in the selection guide for this category.
Where it works
- Sliding leaves in the dry parts of a venue
- Display furniture used throughout the day
- Guide rails covered by routine cleaning
- Replacing a roller that ran too stiffly
FAQ
Frequently asked questions
Have not found your answer? Give the weight of the appliance and the type of floor – we will select the wheel set.
Ask a questionWill this roller replace the stainless bush version?
The tread size is the same, so geometrically it is possible. You do have to reckon, however, with the galvanised body wearing out faster in wet conditions.
How often are rollers replaced in a display case?
The manufacturer gives no interval, because it depends on the number of openings and the cleanliness of the track. The reference point is the moment when the leaf stops closing under its own weight.
Enquiry
We will quote Roller Ø24 mm (polyamide/galvanised/ball bearing) KP-AC-2580 for your appliance
Give the weight of the appliance, the type of floor and the mounting method – we will reply with a selection and a quote.
