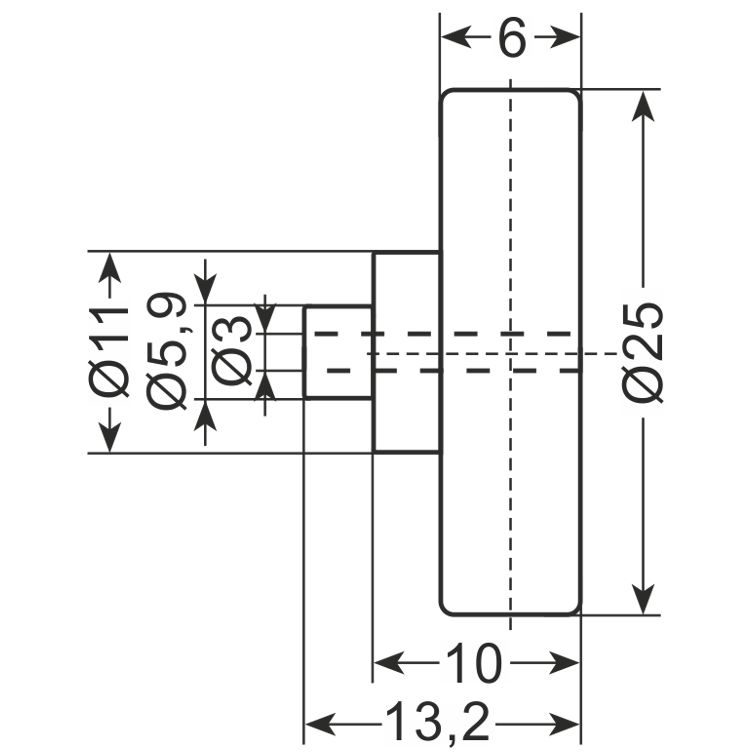

Technical drawing
Roller · AiFO
Roller Ø25 mm (galvanised/ball bearing) KP-AC-2585
Item no. KP-AC-2585 · EAN 2010000146729
- made of galvanised steel
- ball bearing
- Wheel diameter [mm]
- fi25 mm
- Housing material
- galvanised
- Wheel diameter
- Ø25 mm
In brief
- KP-AC-2585 is the only roller in this group made entirely of galvanised steel, without a plastic wheel.
- The diameter is Ø25 mm, with a ball bearing running inside.
- A metal tread takes higher point loads than polyamide.
- The manufacturer does not state a permissible load.
Prices and stock levels are in the B2B shop. Sets for a specific appliance are put together to order.
Roller Ø25 mm (galvanised/ball bearing) KP-AC-2585 – how to choose the right one
Roller KP-AC-2585, 25 mm in diameter, is made of galvanised steel and fitted with a ball bearing. Unlike the other items it has no polyamide wheel – it is metal that runs along the rail.
Metal on metal carries a higher load and does not deform under weight, but it is noisier and wears the rail faster if the rail is soft. This is a solution for places where strength matters more than comfort of use.
The pairing of materials is worth keeping in mind too. A steel roller in an aluminium slide will wear the slide above all, so the durability of the fitting has to be judged across the whole assembly, not the roller alone.
How to choose a castor for the load and the floor – we explained it in the selection guide for this category.
Where it works
- Assemblies carrying high point loads
- Steel slides with a hard running surface
- Places where plastic was deforming under load
- Technical structures away from the sales area
FAQ
Frequently asked questions
Have not found your answer? Give the weight of the appliance and the type of floor – we will select the wheel set.
Ask a questionIs a steel roller suitable for a retail display case?
Technically yes, but it will be audible every time the door opens. In areas accessible to customers, versions with a plastic tread run more quietly.
Is galvanising enough in a damp room?
For as long as the coating stays intact. The tread wears away where it meets the rail, so that is exactly where the protection disappears first.
