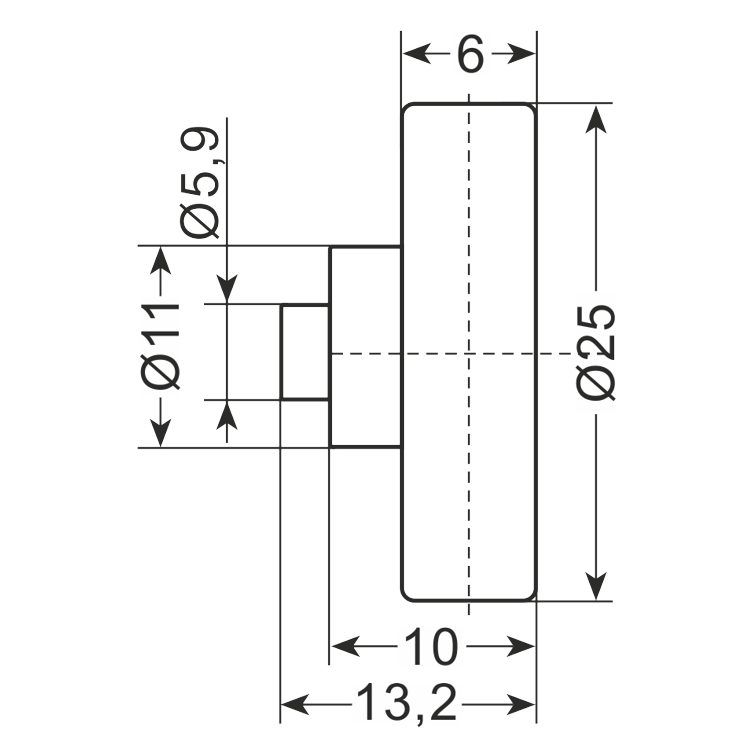

Technical drawing
Roller · AiFO
Roller Ø25 mm (polyamide/galvanised/ball bearing) KP-AC-1007
Item no. KP-AC-1007 · EAN 2010000054215
- made of galvanised steel, polyamide wheel
- ball bearing
- Wheel diameter [mm]
- fi25 mm
- Housing material
- galvanised
- Wheel material
- polyamide
- Wheel diameter
- Ø25 mm
In brief
- A Ø25 mm roller with a polyamide wheel, a galvanised housing and a ball bearing.
- The counterpart of the steel item of the same diameter, but with a plastic tread.
- The bearing lowers the resistance when the leaf is set in motion.
- The data sheet does not cover load figures.
Prices and stock levels are in the B2B shop. Sets for a specific appliance are put together to order.
Roller Ø25 mm (polyamide/galvanised/ball bearing) KP-AC-1007 – how to choose the right one
KP-AC-1007 is a roller 25 mm in diameter combining a polyamide wheel, a galvanised housing and a ball bearing. The same size is also available in an all-metal version.
Plastic at the point of contact with the rail quietens the movement and spares the slide. The roller deforms only minimally under load, so it spreads the pressure instead of concentrating it along a single line.
There is a limit to this. With a very heavy leaf, polyamide working constantly at the same point can develop a flat spot, especially when the unit stands unmoved for a long period.
How to choose a castor for the load and the floor – we explained it in the selection guide for this category.
Where it works
- Leaves of medium weight in display furniture
- Aluminium slides that we do not want to wear out
- Places calling for quieter operation of the fitting
- Replacing a metal roller with a quieter one
FAQ
Frequently asked questions
Have not found your answer? Give the weight of the appliance and the type of floor – we will select the wheel set.
Ask a questionPolyamide or metal in the 25 mm size?
Plastic for typical leaves and wherever quietness counts; metal where the load is exceptionally high. On a standard display case the polyamide version is the default choice.
What can be done about a flattened tread?
The deformation cannot be reversed, so the roller is replaced with a new one. If the unit is to stand still for a long time, it is worth moving the leaf a few centimetres now and again.
Enquiry
We will quote Roller Ø25 mm (polyamide/galvanised/ball bearing) KP-AC-1007 for your appliance
Give the weight of the appliance, the type of floor and the mounting method – we will reply with a selection and a quote.
