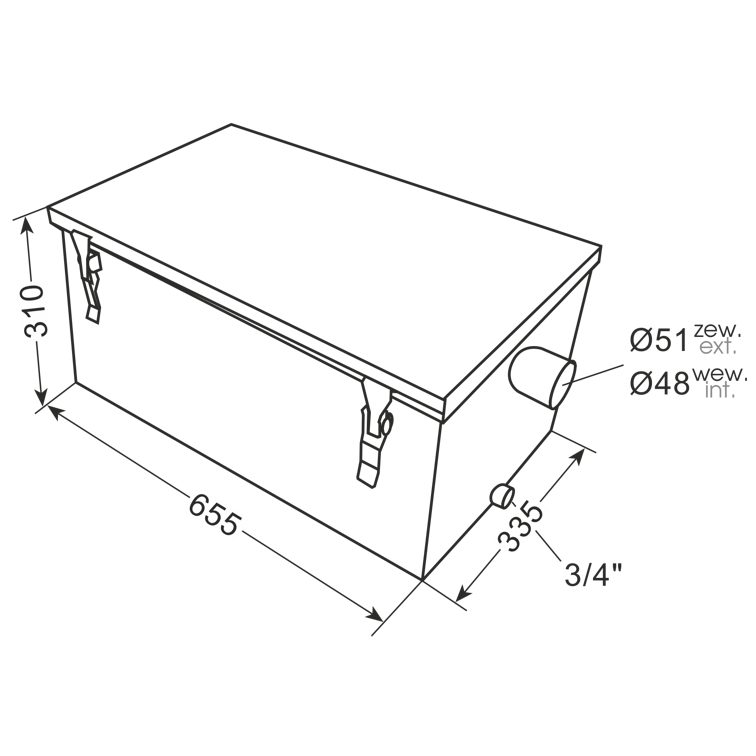

Technical drawing
Container · AiFO
Grease separator KP-CSG-50
Item no. KP-CSG-50 · EAN 2010000073629
- made of AISI-304 stainless steel
- the separator requires no energy consumption for its operation - the separation process runs under gravity
- the heaviest materials (grease, detritus, etc.) settle in the basket, allowing a second process in which water is separated from oil and finally reaches the filtered water chamber
- Material
- stainless steel
In brief
- A stainless steel unit that retains the grease running off the washing station.
- The commercial code is KP-CSG-50; made in AISI-304 steel.
- It works on the drain, before the waste water reaches the rest of the installation.
- It requires the retained grease to be removed regularly – otherwise it stops doing its job.
Prices and stock levels are in the B2B shop. Non-standard versions are quoted individually.
Grease separator KP-CSG-50 – how to choose the right one
Grease separator KP-CSG-50 is a unit in AISI-304 steel, fitted on the drain from a washing station. It retains the grease running off the dishes before it reaches the rest of the drainage installation.
The problem it solves reveals itself with a delay. Grease in warm water flows freely, but in a cooler section of pipe it sets and month by month reduces the bore, until there is a blockage at the least convenient moment.
The effectiveness of a separator depends not on the unit itself but on the discipline of the staff. The retained grease has to be removed regularly, because a full separator stops separating and becomes just one more component that waste water flows through without being held.
How to choose a bin and a trolley for the back of house – we explained it in the selection guide for this category.
Where it works
- Dishwashing rooms handling a high proportion of greasy food
- Stations for washing pans and roasting trays
- Premises where sections of the drainage have blocked in the past
- Kitchens far from the stack, with a long horizontal run of drain
FAQ
Frequently asked questions
Have not found your answer? Give the intended use and the dimensions – we will select the equipment.
Ask a questionWhere is a unit like this fitted?
On the drain from the washing station, as close as possible to the source of the grease. The longer the run of pipe before the separator, the greater the share of grease that settles on the way.
Does a separator require attention?
Yes, and regularly. The retained grease has to be removed, and the frequency is set by the character of the kitchen – with fried food it will be distinctly higher than in a steam kitchen.
Does a unit like this replace an external installation?
It is a solution that works at the station, at the point where the grease arises. The scope of the requirements for the whole building follows from the design of the installation, not from the choice of a single unit.
Enquiry
We will quote Grease separator KP-CSG-50 for your appliance
Give the intended use and the dimensions required – we will reply with a selection and a quote.
B2B shopGet in touch
We usually reply within 24 working hours.
