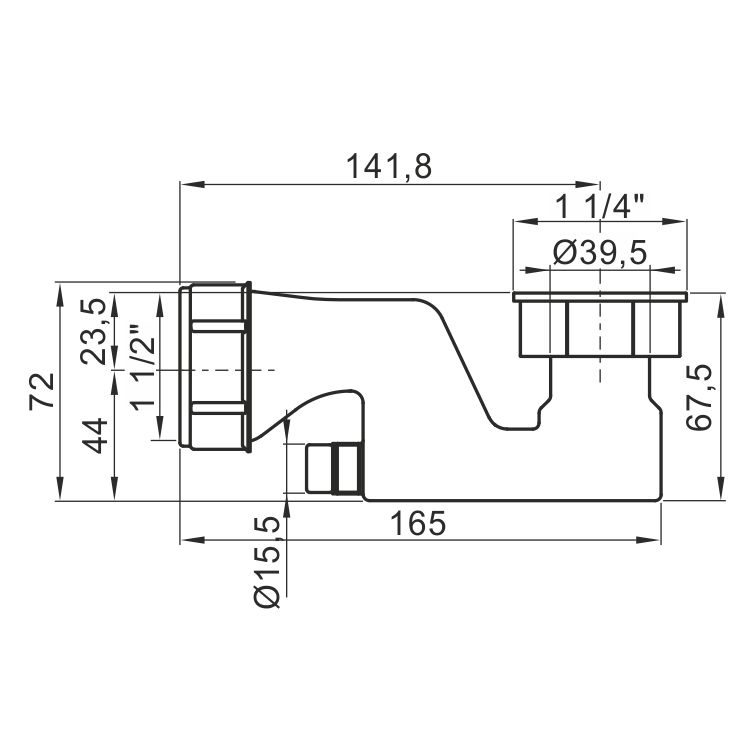

Technical drawing
Trap · AiFO
Trap 1 1/4" KP-511
Item no. KP-511 · EAN 2010000132791
- made of polypropylene
- nut made of polyethylene
- works with drain KP-CC-40x80
- Material
- polypropylene / polyethylene
In brief
- Trap with a 1 1/4" connection for draining condensate in refrigerated cabinets and refrigeration units.
- Polypropylene body, polyethylene nut.
- Height of 72 mm – it fits in the lower part of the cabinet, including the space reserved for insulation.
- AiFO recommends it for use with the KP-CC-40x80 drain.
Prices and stock levels are in the B2B shop. Honeycomb panels are cut to size, non-standard parts are quoted individually.
Trap 1 1/4" KP-511 – how to choose the right one
KP-511 is a trap with a 1 1/4" connection, made of polypropylene with a polyethylene nut. It is used to drain condensate in refrigerated cabinets and refrigeration units, and AiFO recommends it for use with the KP-CC-40x80 drain.
The trap is 72 mm high, so it works where the cabinet design calls for a low drain assembly. With a suitably designed body it can be placed in the space reserved for insulation, so that it does not protrude beyond the outline of the unit and is less exposed to damage during transport and installation.
The nut can be unscrewed, which makes periodic cleaning and replacement of the trap easier. When designing the enclosure, provide service access to it and keep the insulation continuous around it.
How to match a drain to the hole and a honeycomb to the cabinet – we explained it in the selection guide for this category.
Where it works
- Appliances fitted with the drain KP-CC-40x80
- Refrigerated cabinets with little installation space under the base
- Enclosures in which the trap sits within the insulation layer
- Units requiring the system to be periodically unscrewed for cleaning
FAQ
Frequently asked questions
Have not found your answer? Give the hole diameter and the thread – we will select the drain and the trap.
Ask a questionHow much space does the KP-511 trap need?
The trap is 72 mm high, so it fits in the lower part of the cabinet and, with a suitably designed body, also in the space reserved for insulation. Access for cleaning and replacement must still be provided.
Which drain does KP-511 work with?
AiFO recommends it for use with the KP-CC-40x80 drain with a 1 1/4" connection. With a different drain with the same thread, confirm compatibility with an AiFO adviser before ordering.
