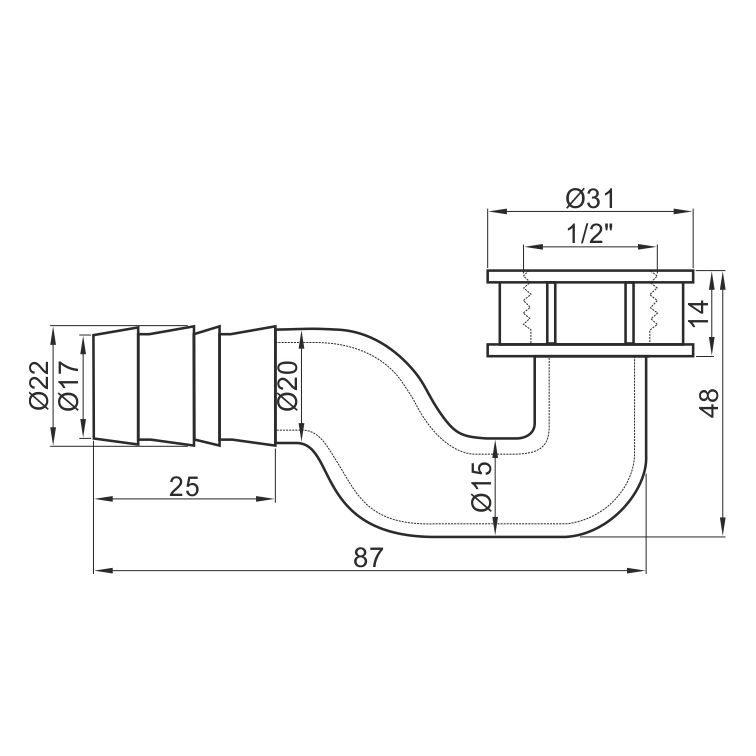

Technical drawing
Trap · AiFO
Trap KP-689
Item no. KP-689 · EAN 2010000158838
- made of grey polyethylene
- welded nut made of ABS
- Material
- polyethylene / ABS
In brief
- An ABS nut welded to the body - a joint that cannot be undone.
- A grey polyethylene body, as in the other two models in this trio.
- The weld removes the risk of the thread coming loose.
- The description matches the KP-690 model, though the codes remain separate.
Prices and stock levels are in the B2B shop. Honeycomb panels are cut to size, non-standard parts are quoted individually.
Trap KP-689 – how to choose the right one
The KP-689 is a grey polyethylene trap in which the ABS nut is welded to the body. It drains water from refrigeration units.
A welded joint has one clear advantage: it cannot be loosened or turned, so the most common source of a leak under the furniture is eliminated. In exchange, the part cannot be taken apart for cleaning.
This is a solution for hard-to-reach spots, where a secure joint matters and inspection comes down to flushing the system through anyway, without dismantling it.
How to match a drain to the hole and a honeycomb to the cabinet – we explained it in the selection guide for this category.
Where it works
- Drainage points in hard-to-reach spots
- Units built in permanently, with no way to pull them out
- Installations where a loose nut would be hard to spot
- Replacing a part that had previously leaked at the thread
FAQ
Frequently asked questions
Have not found your answer? Give the hole diameter and the thread – we will select the drain and the trap.
Ask a questionCan just the nut be replaced?
No, the weld is a permanent joint, and the whole trap is replaced if it is damaged. That is the main trade-off of this version against the KP-688, which can be unscrewed.
Which to choose: KP-689 or KP-690?
The documentation gives an identical material description for both, so there is no telling them apart on paper without dimensions. For a replacement order, the code read off the working part decides.
