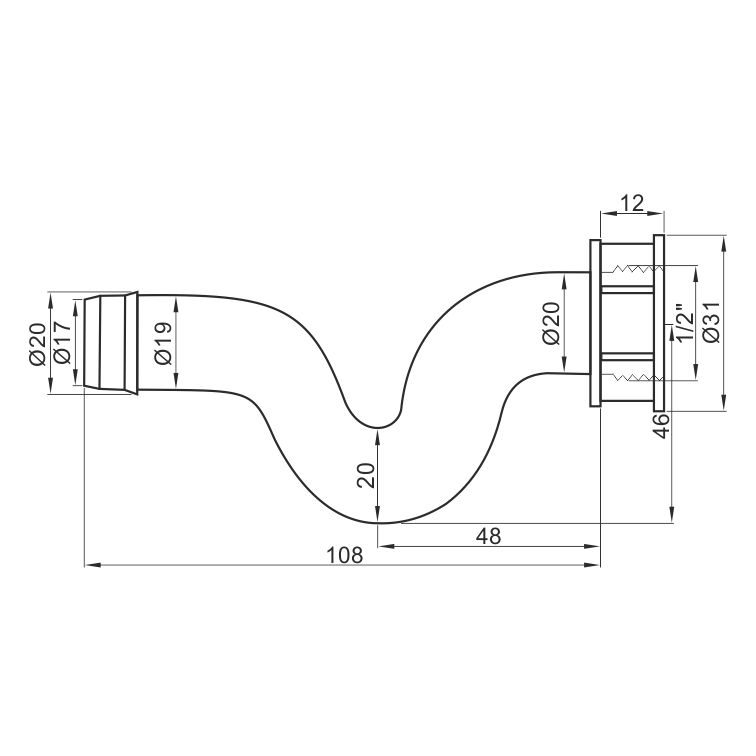

Technical drawing
Trap · AiFO
Trap KP-690
Item no. KP-690 · EAN 2010000158845
- made of grey polyethylene
- welded nut made of ABS
- Material
- polyethylene / ABS
In brief
- The third model in the grey polyethylene trap family, with a nut welded to ABS.
- A permanent joint, with no option to unscrew it for servicing.
- The catalogue data matches the KP-689 item.
- The choice between them rests on the marking on the unit, not on the specifications.
Prices and stock levels are in the B2B shop. Honeycomb panels are cut to size, non-standard parts are quoted individually.
Trap KP-690 – how to choose the right one
The KP-690 is a trap built from grey polyethylene, with an ABS nut joined to the body by welding. It works in water drainage systems for refrigeration units.
The trio of KP-688, KP-689 and KP-690 forms one family sharing a material and two ways of making the nut. This model belongs to the welded variant, alongside the KP-689.
Since the datasheet does not tell the two welded items apart, when putting together spare parts it is safer to start from the unit's model than from the material description alone.
How to match a drain to the hole and a honeycomb to the cabinet – we explained it in the selection guide for this category.
Where it works
- Servicing units marked with this specific code
- Drainage built on a joint that cannot be taken apart
- Furniture where the trap works with no access for inspection
- Follow-up orders for constructions supplied earlier
FAQ
Frequently asked questions
Have not found your answer? Give the hole diameter and the thread – we will select the drain and the trap.
Ask a questionHow do I know which of the twin codes to order?
From the unit's rating plate, or from the marking stamped on the part itself. If the code is illegible, a photo with a measurement is enough - we will match the item by its geometry.
Is a welded construction more durable?
At the joint, yes, since there is no thread that could work loose from the compressor's vibration. Everything else wears the same way as in the unscrewable version.
