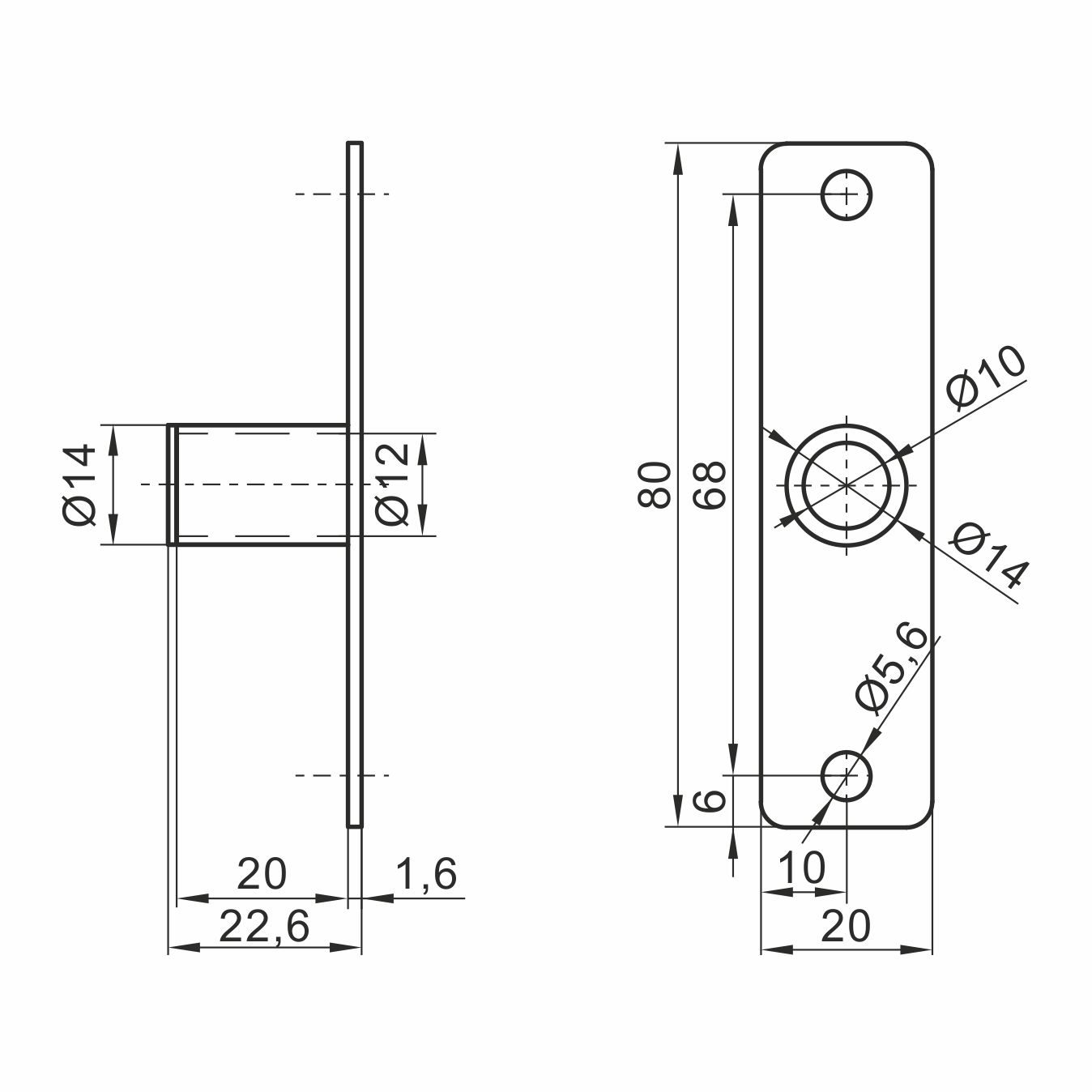

Technical drawing
Hinge · AiFO
Mounting holder ZW-TRD-FL
Item no. ZW-TRD-FL · EAN 2010000137086
- made of stainless steel
- Material
- stainless steel
In brief
- Stainless steel mounting holder.
- An accessory of the TRD series, sharing its prefix with the slow-fall hinges.
- It is not a hinge – it serves to seat the mechanism in the structure.
- Ordered separately from the hinge itself.
Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.
Mounting holder ZW-TRD-FL – how to choose the right one
ZW-TRD-FL is a stainless steel mounting holder, listed under the same prefix as the slow-fall hinges of the TRD series.
A part of this kind solves a problem that only appears at the assembly bench: the mechanism has to be screwed to something, and the structure rarely offers a ready location with the right geometry. The holder provides that point.
The data sheet is limited to the material, without dimensions or an indication of which TRD models it serves. When ordering, it is worth confirming compatibility with the specific hinge, especially at higher torques.
How to choose a hinge for the door weight and the mounting method – we explained it in the selection guide for this category.
Where it works
- Seating a slow-fall hinge in the frame of a flap
- Structures with no prepared location for the mechanism
- Fitting a TRD mechanism into an existing appliance
- Completing a TRD series order
FAQ
Frequently asked questions
Have not found your answer? Give the door weight and the mounting method – we will select the hinge and the brackets.
Ask a questionIs the holder essential with every TRD hinge?
No, it is an optional part. It is needed when the structure has no surface allowing the mechanism to be screwed on directly.
How does it differ from the ZW-TRD-BRA bracket?
Both items are made of stainless steel and both belong to the same series, but they are listed as separate parts with different roles in assembly. The data sheets do not set out their dimensions.
Enquiry
We will quote Mounting holder ZW-TRD-FL for your appliance
Give the leaf weight, the mounting method and the type of door – we will reply with a selection and a quote.
