Tangential fans TF

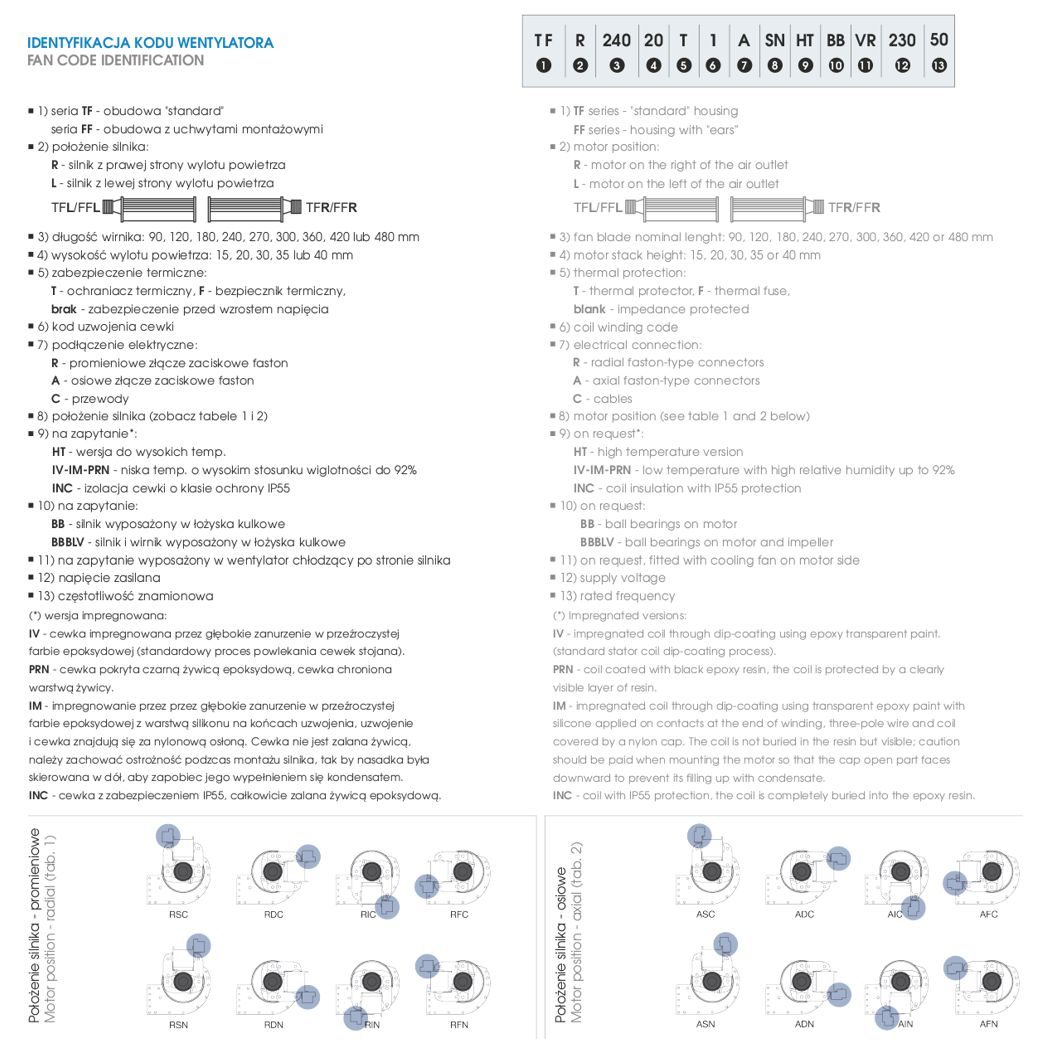

Item no. TF · EAN 2010000200551

• single-phase 2-pole motor with insulation class min. 130 "B"
• aluminium rotor with a diameter of Ø60 mm
• housing of galvanised steel
• suitable for continuous operation at ambient temp. from -10°C to +50°C
• electrical connection 6.3 x 0.8 mm, radial or axial
• built in accordance with the requirements of the CE mark and with the EN 60335-1 standard
• on request an HT version for operation in the range from -30°C to +100°C
• on request fans with an ATEX certificate
• supply voltage from 12V to 400V 50/60 Hz
• motor coil winding with IP55 protection
• protection against dust and/or moisture
• thermal protection or a thermal fuse
• housing with a cataphoretic coating
• HT versions for operation in the range from -30°C to +100°C
• design compliant with the UL - CSA standards
• version fitted with ball bearings

supply voltage

230 V

motor with various powers and insulation classes

155°"F"-180°"H"

Prices and stock levels are in the B2B shop. Assemblies with wiring are configured to order.
