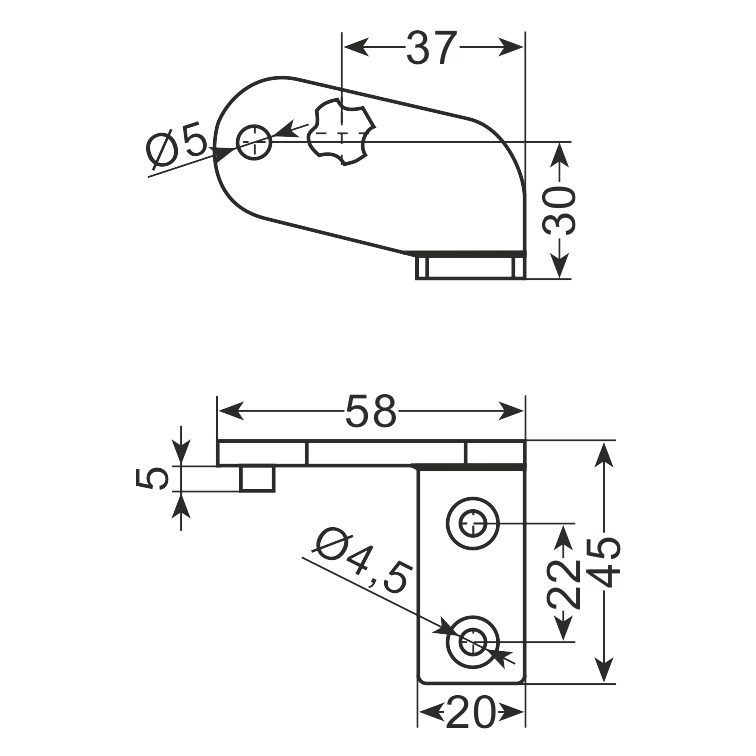

Technical drawing
Bracket · AiFO
Vertical bracket, top left ZW-TRS/L1
Item no. ZW-TRS · EAN 2010000053010
- vertical
- for hinge ZW-TRS-1
- Material
- ZnAl
In brief
- Vertical bracket for the top left position.
- Works with hinge ZW-TRS-1.
- Material: ZnAl alloy.
- Together with ZW-TRS/L2 it forms the set for one door.
Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.
Vertical bracket, top left ZW-TRS/L1 – how to choose the right one
ZW-TRS/L1 is a vertical ZnAl alloy bracket intended for the top left mounting point of hinge ZW-TRS-1. It is ordered as a separate item, alongside the hinge itself.
The ZW-TRS family comprises four vertical brackets set out by position: L1 and L2 on the left, R1 and R2 on the right. One stands for the top, two for the bottom, so a pair sharing the same letter is chosen for a single leaf.
Because hinge ZW-TRS-1 works interchangeably on both sides, it is the brackets that settle the door arrangement. When ordering it is worth stating the opening side rather than the hinge designation alone.
How to choose a hinge for the door weight and the mounting method – we explained it in the selection guide for this category.
Where it works
- Top mounting point in left-hand doors
- Assembling the fittings for hinge ZW-TRS-1
- Installations with vertical bracket guidance
- Making up shortages after dismantling
FAQ
Frequently asked questions
Have not found your answer? Give the door weight and the mounting method – we will select the hinge and the brackets.
Ask a questionHow many brackets are needed for one door?
The data sheet does not state this. In the ZW-TRS family the vertical brackets are set out for top and bottom, which suggests selection in pairs, but the number of mounting points is set by the cabinet design.
Does this bracket fit ZW-7000 hinges?
The manufacturer lists only ZW-TRS-1 against it. Two other brackets, horizontal ones with the designations ZW-TRB/L and ZW-TRB/R, are described for the ZW-7000 series.
Enquiry
We will quote Vertical bracket, top left ZW-TRS/L1 for your appliance
Give the leaf weight, the mounting method and the type of door – we will reply with a selection and a quote.
