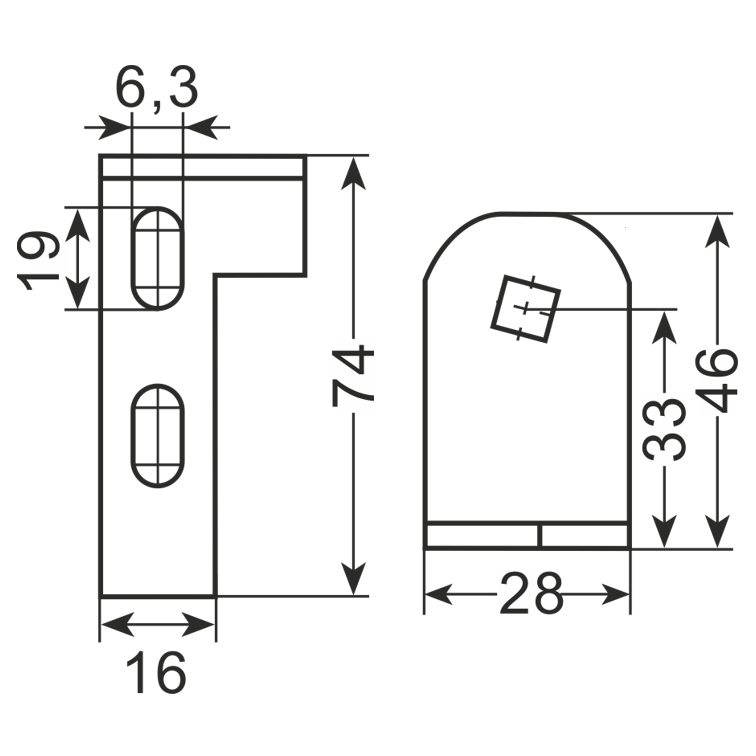

Vertical bracket, top right / bottom left ZW-TRB523

Item no. ZW-TRB523 · EAN 2010000055601

vertical
for hinge ZW-TRS-1a

Material: chrome-plated steel

In brief

Serves the opposite diagonal: top right and bottom left.
Chrome-plated steel, for hinge ZW-TRS-1a.
Version without an opening limiter.
Mirror counterpart of ZW-TRB522.

Data sheet PDF, p. 8

Check price and availability Request a quote

Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.

Vertical bracket, top right / bottom left ZW-TRB523 – how to choose the right one

ZW-TRB523 is a vertical chrome-plated steel bracket intended for hinge ZW-TRS-1a, listed for the top right and bottom left positions. It mirrors the arrangement served by ZW-TRB522.

In a complete installation both part numbers usually appear together. The top and bottom edges of a single door call for brackets from different diagonals, so an order is rarely confined to one item.

This variant has no limiter. If the leaf has to be held open, the right part numbers are ZW-TRB526 to ZW-TRB529.

How to choose a hinge for the door weight and the mounting method – we explained it in the selection guide for this category.

Where it works

Top right mounting with ZW-TRS-1a
Bottom left position in the same structure
Installations without a limited opening angle
Sets ordered together with ZW-TRB522

Manufacturing

Custom projects (R&D)

Catalogue

All categories: Hardware, fittings

Frequently asked questions

Have not found your answer? Give the door weight and the mounting method – we will select the hinge and the brackets.

Ask a question

How do I match a bracket to a specific door corner?

Two things are established: whether the point is at the top or the bottom, and on which side the hinges sit. The diagonal follows from that, and the bracket designation from the diagonal.

Does chrome-plated steel replace the ZnAl alloy here?

These are separate families, not material variants of the same part. The chrome-plated steel brackets are described for ZW-TRS-1a, the ZnAl alloy ones – for ZW-TRS-1.
