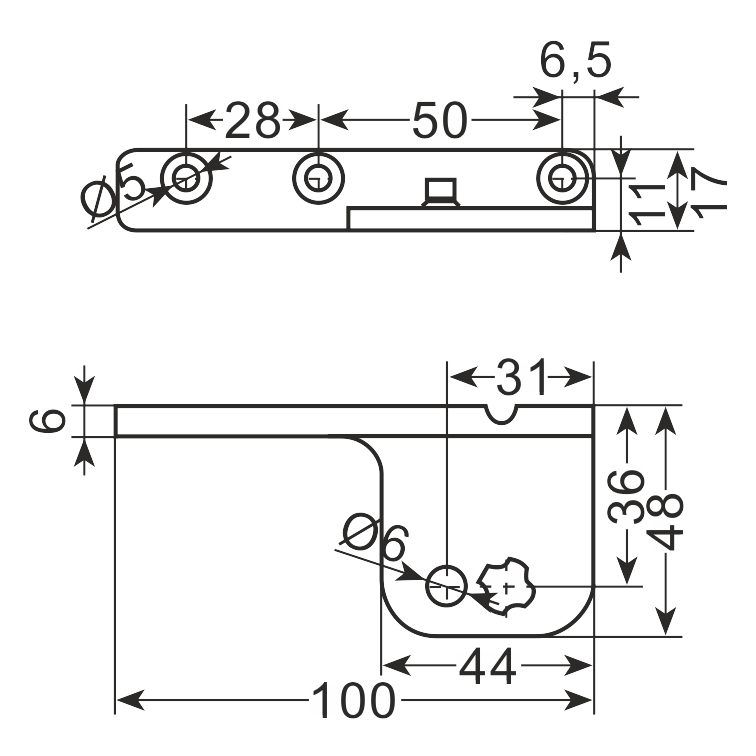

Horizontal bracket, bottom right / top left (36 mm) ZW-TRB/R1

Item no. ZW-TRB · EAN 2010000052983

horizontal
for hinge ZW-TRS-1

Material: ZnAl

In brief

36 mm version for the bottom right and top left positions.
Material: ZnAl alloy, horizontal mounting.
For hinge ZW-TRS-1.
The same positions are served by the more broadly described ZW-TRB/L.

Data sheet PDF, p. 7

Check price and availability Request a quote

Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.

Horizontal bracket, bottom right / top left (36 mm) ZW-TRB/R1 – how to choose the right one

ZW-TRB/R1 is a horizontal ZnAl alloy bracket in the 36 mm size, assigned to the bottom right and top left mounting points of hinge ZW-TRS-1.

The same pair of positions also figures in the catalogue under ZW-TRB/L, with the difference that that part number additionally covers the ZW-7000 series. This duplication of arrangements occurs twice in the family.

For a rebuild order the designation on the removed part decides. For a new project, in turn, it is worth choosing the part number that covers all the hinges used in the appliance.

How to choose a hinge for the door weight and the mounting method – we explained it in the selection guide for this category.

Where it works

Bottom right mounting points in the cabinet
Top left positions with ZW-TRS-1
Installations in the 36 mm version
Servicing of appliances with ZW-TRB fittings

Manufacturing

Custom projects (R&D)

Catalogue

All categories: Hardware, fittings

Frequently asked questions

Have not found your answer? Give the door weight and the mounting method – we will select the hinge and the brackets.

Ask a question

How should the designations of horizontal ZW-TRB brackets be read?

The letter indicates the side, the digit one distinguishes the second diagonal arrangement, and the M suffix denotes the 40 mm version. The full marking is therefore the only unambiguous information when ordering.

Is it possible to order a complete set for a whole door?

Yes, we accept combined orders for brackets and hinges together. The quantity of each item is established from the installation drawing.
