Horizontal bracket, top left / bottom right (36 mm) ZW-TRB/L – AiFO

Technical drawing

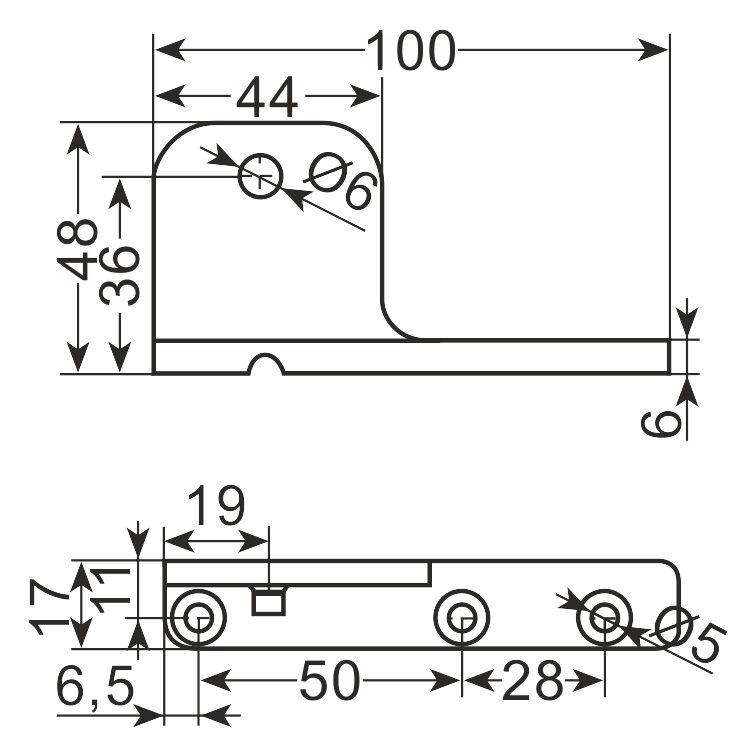

Horizontal bracket, top left / bottom right (36 mm) ZW-TRB/L – technical drawing

Bracket · AiFO

Horizontal bracket, top left / bottom right (36 mm) ZW-TRB/L

Item no. ZW-TRB · EAN 2010000052938

  • horizontal
  • for hinge ZW-TRS-1
  • for ZW-7000 series hinges
Material
ZnAl
Data sheet PDF, p. 7
Check price and availability Request a quote

Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.

Manufacturing

Custom projects (R&D)

Catalogue

All categories: Hardware, fittings

Category

Hinges and brackets

Enquiry

We will quote Horizontal bracket, top left / bottom right (36 mm) ZW-TRB/L for your appliance

Give the leaf weight, the mounting method and the type of door – we will reply with a selection and a quote.
